    • Home
    • Catalog
    • Distri­bu­tion systems
    • Small distri­bu­tion boards up to 63 A and multi­media boards
    • golf enclos­ures
    • VS122TF
    The Hager Golf small surface-mounted distributor offers 1 row/1 rail with 22 modules for compact indoor distribution up to 63 A, 400 V. Supplied with MS neutral and PE terminal blocks, conduit inlets, and snap-on closure for quick wiring. Transparent single door in pure white (RAL9010) plastic allows easy inspection. Class II, IP40, IK07; H252×W462×D99 mm. Ideal for residential and light commercial circuits.
    EAN
    3250616595057
    Packaging
    1 Piece
    • golf enclos­ures

    Golf small distributor surface 1-row 22M IP40 63A white door VS122TF

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Golf small distributor surface 1-row 22M IP40 63A white door

    VS122TF

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Accessor­ies/s­pare parts for terminals 1 products available
    • Cover­/in­fill panel/iden­ti­fic­a­tion strip 2 products available
    • Cable gland shroud 1 products available
    • Cover for distri­bu­tion board 1 products available
    • Lock system 1 products available

    Complete your system

    • Accessor­ies/s­pare parts for terminals
    • Cover­/in­fill panel/iden­ti­fic­a­tion strip
    • Cable gland shroud
    • Cover for distri­bu­tion board
    • Lock system
    • VZ707N

      Terminal base, golf, QC terminal, for VF/VS 12 M
      €0.00  / *
    • VZ788N

      Labeling strips, golf, adhesive, 396mm, surface, flush m. distributor, accessory, 10pcs
      €0.00  / *
    • VZ787N

      Labeling flap, golf, surface, flush mounting distributor, 450mm, accessory
      €0.00  / *
    • VZ789N

      Sealing plug, golf, surface mounting ditrsibutor, protecion class II, accessory
      €0.00  / *
    • VZ671N

      Cover, golf, with 4 screws, accessory, for VS122
      €0.00  / *
    • VZ794N

      Key lock, golf, flush, surface mounting disributor, 2keys, accessory
      €0.00  / *

    Technical properties

    Voltage
    • Nominal voltage
      400 - 400 V
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current
      63 A
    Equip­ment
    • Number of rails
      1
    • Number of rows
      1
    • Number of section in width
      1
    • With lock
      No
    • Has neutral terminal block
      Yes
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      22
    Func­tions
    • With conduit inlets
      Yes
    Dimen­sions
    • Height
      252 mm
    • Width
      462 mm
    • Depth
      99 mm
    • Number of width units
      22
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      0
    • Door/­cover is trans­parent
      Yes
    • Cabinet door type
      Single door
    Mater­ials
    • Material
      Plastic
    • RAL code
      9010
    • Colour
      Pure white
    • Ultra­vi­olet-res­istant
      No
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Impact resist­ance IK
      IK07
    • Ingress Protec­tion (IP) class
      IP40
    • Locking type
      Snap on lock, Without lock
    • Glow wire test
      650 °C
    • Protec­tion class with door
      IP40

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - ENCLOSURE SURFACE GAMMA 26 M (english)
    PDF
    25,39 MB
    REACH declaration VS122TF
    PDF
    RoHS report VS122TF
    PDF

    Downloads

    • Image VS122TF | Hager Africa

      Product Image VS122TF

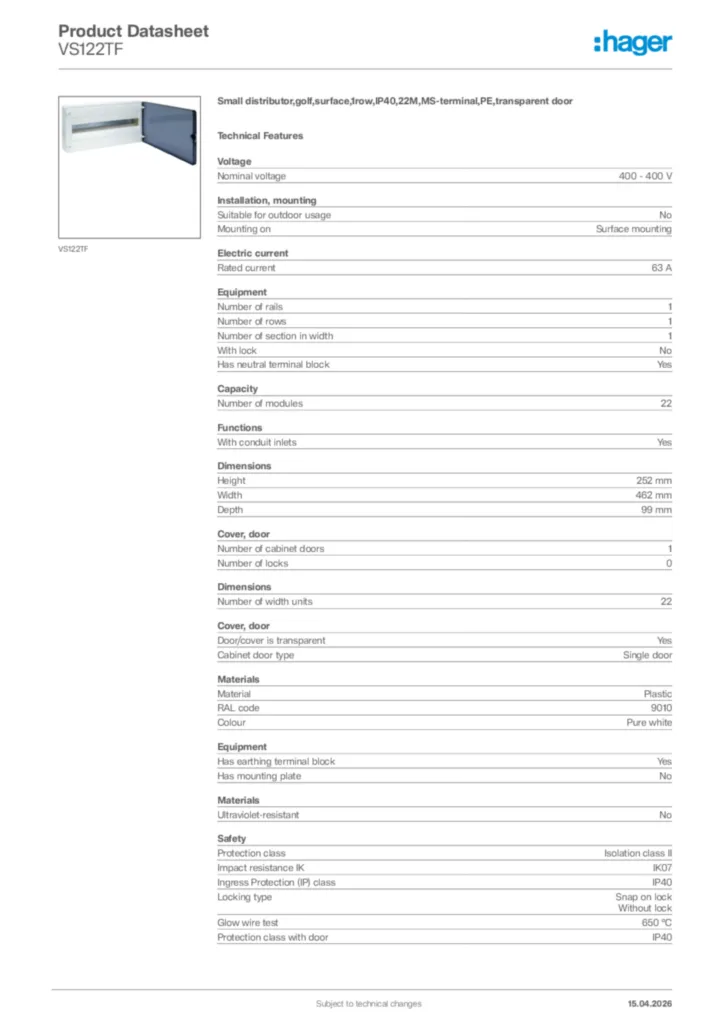

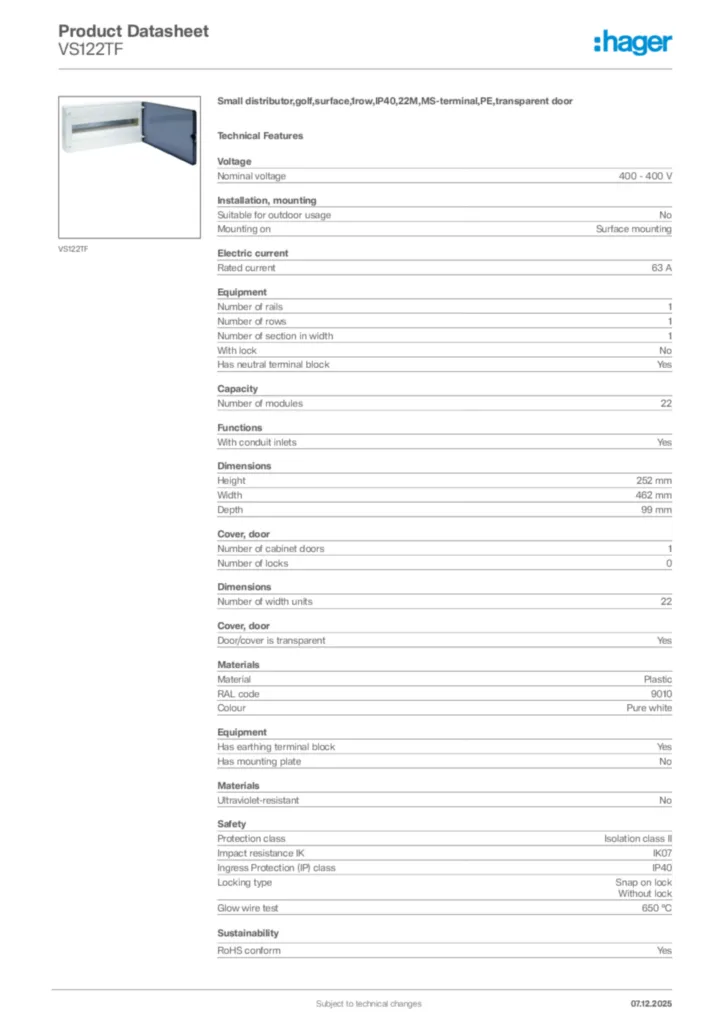

    • Product datasheet

      Image Hager Product data sheet VS122TF | Hager Africa

      Hager Product data sheet VS122TF

      Small distributor,golf,surface,1row,IP40,22M,MS-terminal,PE,transparent door

      PDF

    • Declaration of conformity

      Image Declaration of conformity en-GB 2025-06-25 | Hager Africa

      Declaration of conformity en-GB 2025-06-25

      PDF
      487,74 kB
    More documentation

    Discover more of this product range

      5
    • 1
      VF108PJ - Volta flush enclosure 3x12 modules IP30 63A Africa version
      VF108PJ
      Small distributor, golf, flush, 1row, 8M, IP40, MS-terminal, N+PE, white door
    • 2
      VS122PJ - Enclosure Volta flush 4x12M IP30 63A Class II single door Africa
      VS122PJ
      Small distributor, golf, surface, 1row, IP40, 22M, MS-terminal, N+PE, white door
    • 3
      VF118PJ - Small distributor,golf,flush,1row,18M,IP40,MS-terminal,N+PE,white door
      VF118PJ
      Small distributor, golf, flush, 1row, 18M, IP40, MS-terminal, N+PE, white door
    • 4
      VS104PJ - Small distributor Golf flush 1-row 12M IP40 63A N+PE transparent door
      VS104PJ
      Small distributor, golf, surface, 1row, IP40, 4M, MS-terminal, N+PE, white door
    • 5
      VS118PJ - Small distributor,golf,surface,1row,IP40,18M,MS-terminal,N+PE,white door
      VS118PJ
      Small distributor, golf, surface, 1row, IP40, 18M, MS-terminal, N+PE, white door
