    Hager Golf small surface-mounted distribution board, 1-row 18-module, for indoor sub-distribution up to 63 A/400 V. Includes 1 DIN rail, PE terminal and conduit inlets for easy wiring. Transparent single door allows quick inspection. Class II insulation, IK07 impact resistance and IP40 rating ensure safety. Pure white RAL9010 plastic enclosure suits residential and light commercial installations.
    EAN
    3250616595019
    Packaging
    1 Piece
    • golf enclos­ures

    Small distributor Golf surface 1-row 18M IP40 PE white door 63A VS118TF

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Small distributor Golf surface 1-row 18M IP40 PE white door 63A

    VS118TF

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Cover­/in­fill panel/iden­ti­fic­a­tion strip 2 products available
    • Cable gland shroud 1 products available
    • Cover for distri­bu­tion board 1 products available
    • Lock system 1 products available

    Complete your system

    • Cover­/in­fill panel/iden­ti­fic­a­tion strip
    • Cable gland shroud
    • Cover for distri­bu­tion board
    • Lock system
    • VZ788N

      Labeling strips, golf, adhesive, 396mm, surface, flush m. distributor, accessory, 10pcs
      €0.00  / *
    • VZ787N

      Labeling flap, golf, surface, flush mounting distributor, 450mm, accessory
      €0.00  / *
    • VZ789N

      Sealing plug, golf, surface mounting ditrsibutor, protecion class II, accessory
      €0.00  / *
    • VZ667N

      Cover, golf, with 4 screws, accessory, for VS118
      €0.00  / *
    • VZ794N

      Key lock, golf, flush, surface mounting disributor, 2keys, accessory
      €0.00  / *

    Technical properties

    Voltage
    • Nominal voltage
      400 - 400 V
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current IN
      63 A
    Equip­ment
    • Number of rails
      1
    • Number of rows
      1
    • Number of section in width
      1
    • With lock
      No
    • Has neutral terminal block
      No
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      18
    Func­tions
    • With conduit inlets
      Yes
    Dimen­sions
    • Height
      252 mm
    • Width
      390 mm
    • Depth
      99 mm
    • Number of width units
      18
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      0
    • Door/­cover is trans­parent
      Yes
    • Cabinet door type
      Single door
    Mater­ials
    • Material
      Plastic
    • RAL code
      9010
    • Colour
      Pure white
    • Ultra­vi­olet-res­istant
      No
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Impact resist­ance IK
      IK07
    • Ingress Protec­tion (IP) class
      IP40
    • Locking type
      Snap on lock, Without lock
    • Glow wire test
      650 °C
    • Protec­tion class with door
      IP40

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - ENCLOSURE SURFACE GAMMA 26 M (english)
    PDF
    25,39 MB
    REACH declaration VS118TF
    PDF
    RoHS report VS118TF
    PDF

    Downloads

    • Image VS118TF | Hager Africa

      Product Image VS118TF

    • Product datasheet

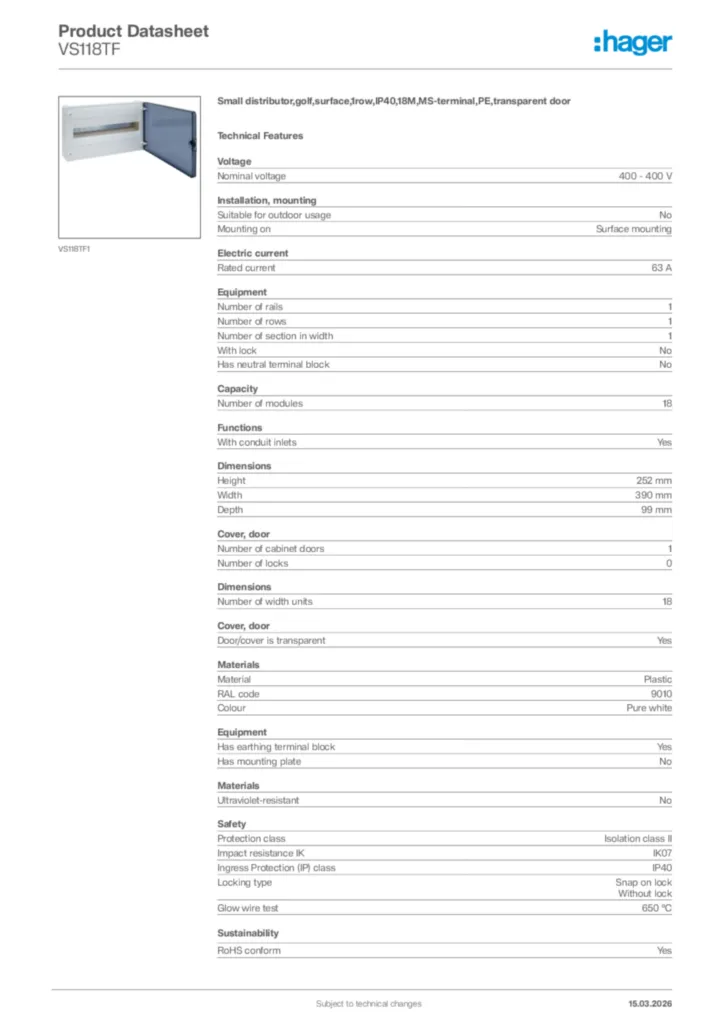

      Image Hager Product data sheet VS118TF | Hager Africa

      Hager Product data sheet VS118TF

      Small distributor,golf,surface,1row,IP40,18M,MS-terminal,PE,transparent door

      PDF

    • Declaration of conformity

      Image Declaration of conformity en-GB 2025-06-25 | Hager Africa

      Declaration of conformity en-GB 2025-06-25

      PDF
      487,74 kB
