The Hager Golf surface-mounted small distributor delivers compact circuit distribution for residential/light commercial use. 1 row/8 modules on 1 rail, 63 A, 400 V. Includes N and PE terminal blocks and MS terminals for quick wiring. IP40 with opaque white single door, Class II insulation, IK07, 650°C glow-wire. Conduit inlets simplify cabling. Dimensions 184×210×99 mm. Not for outdoor use.
EAN
3250616595118
Packaging
1 Piece
Golf small distributor Surface 3-row 36M IP40 N+PE White door VS108PJ
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Cover/infill panel/identification strip 2 products available -
Lock system 1 products available
Technical properties
Voltage
-
Nominal voltage400 - 400 V
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current IN63 A
Equipment
-
Number of rails1
-
Number of rows1
-
Number of section in width1
-
With lockNo
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
-
Has mounting plateNo
Capacity
-
Number of modules8
Functions
-
With conduit inletsYes
Dimensions
-
Height184 mm
-
Width210 mm
-
Depth99 mm
-
Number of width units8
Cover, door
-
Number of cabinet doors1
-
Number of locks0
-
Door/cover is transparentNo
-
Cabinet door typeSingle door
Materials
-
MaterialPlastic
-
RAL code9010
-
ColourPure white
-
Ultraviolet-resistantNo
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK07
-
Locking typeSnap on lock, Without lock
-
Glow wire test650 °C
-
Protection class with doorIP40
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

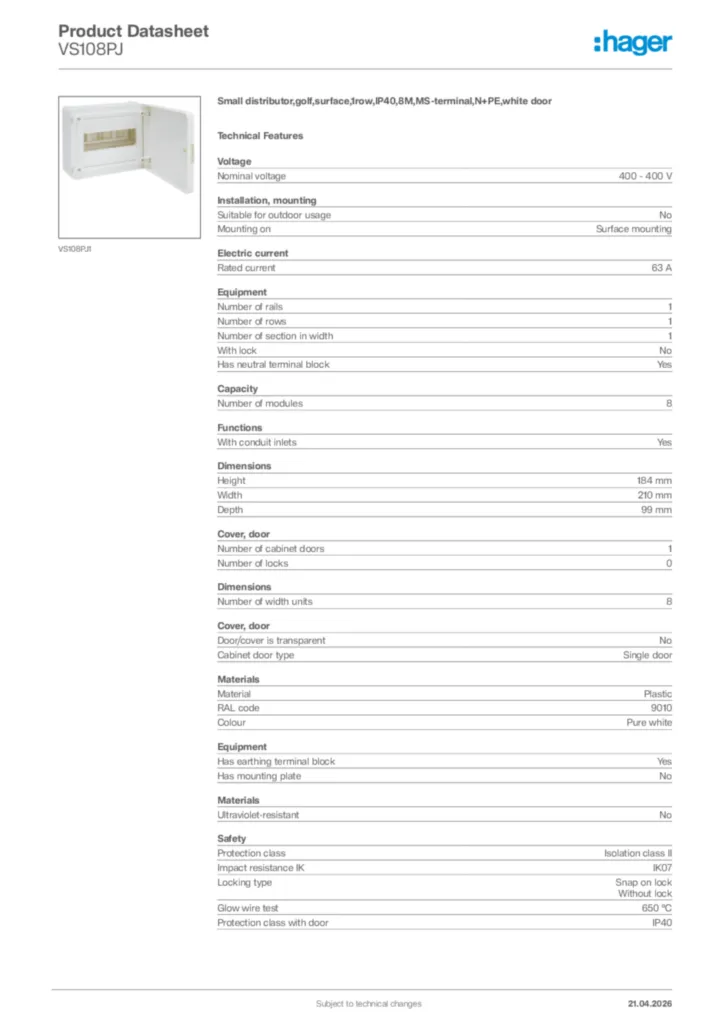

Product datasheet
Hager Product data sheet VS108PJ
Small distributor,golf,surface,1row,IP40,8M,MS-terminal,N+PE,white door
PDF -
Declaration of conformity
Declaration of conformity en-GB 2025-06-25
PDF487,74 kB
