The Hager Golf small surface-mounted 1-row IP40 4-module distributor with white door and MS terminals provides safe, neat distribution for small indoor circuits. Rated 63A at up to 400V, it includes N and PE terminal blocks and conduit inlets for quick wiring. Class II insulation and IK07 impact resistance enhance safety, while the compact RAL9010 plastic enclosure saves space. Ideal for residential subcircuits and small upgrades.
EAN
3250616595101
Packaging
1 Piece
Small distributor Golf flush 1-row 12M IP40 63A N+PE transparent door VS104PJ
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Cover/infill panel/identification strip 2 products available -
Cable gland shroud 1 products available -
Lock system 1 products available
Complete your system
Technical properties
Voltage
-
Nominal voltage400 - 400 V
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current63 A
Equipment
-
Number of rails1
-
Number of rows1
-
Number of section in width1
-
With lockNo
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
-
Has mounting plateNo
Capacity
-
Number of modules4
Functions
-
With conduit inletsYes
Dimensions
-
Height184 mm
-
Width138 mm
-
Depth99 mm
-
Number of width units4
Cover, door
-
Number of cabinet doors1
-
Number of locks0
-
Door/cover is transparentNo
-
Cabinet door typeSingle door
Materials
-
MaterialPlastic
-
RAL code9010
-
ColourPure white
-
Ultraviolet-resistantNo
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK07
-
Locking typeSnap on lock, Without lock
-
Glow wire test650 °C
-
Protection class with doorIP40
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

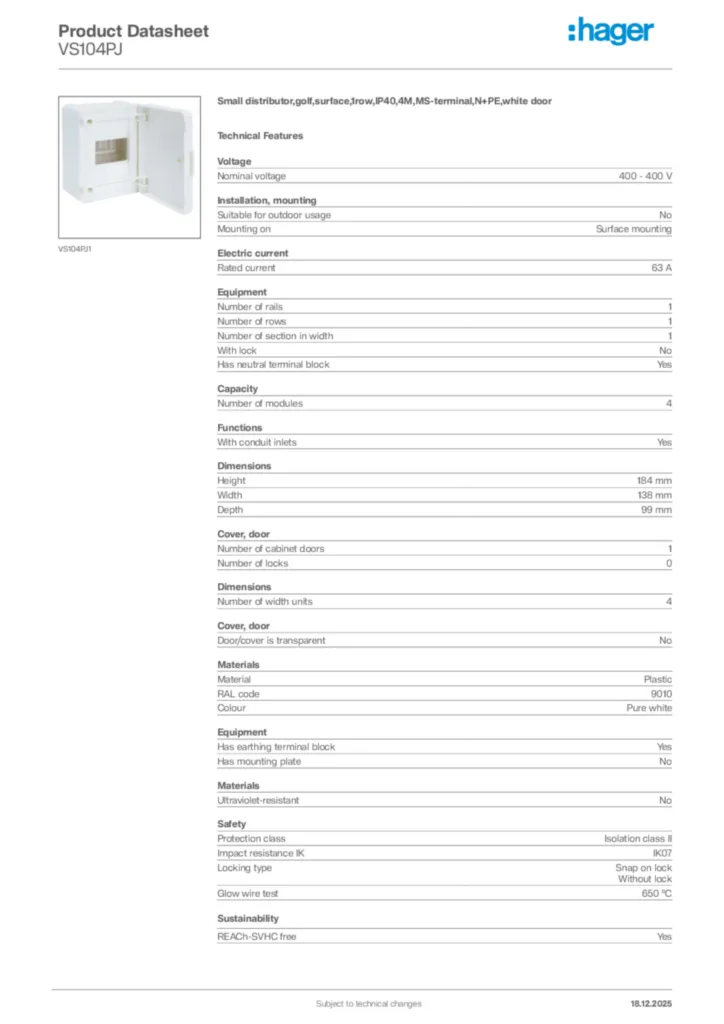

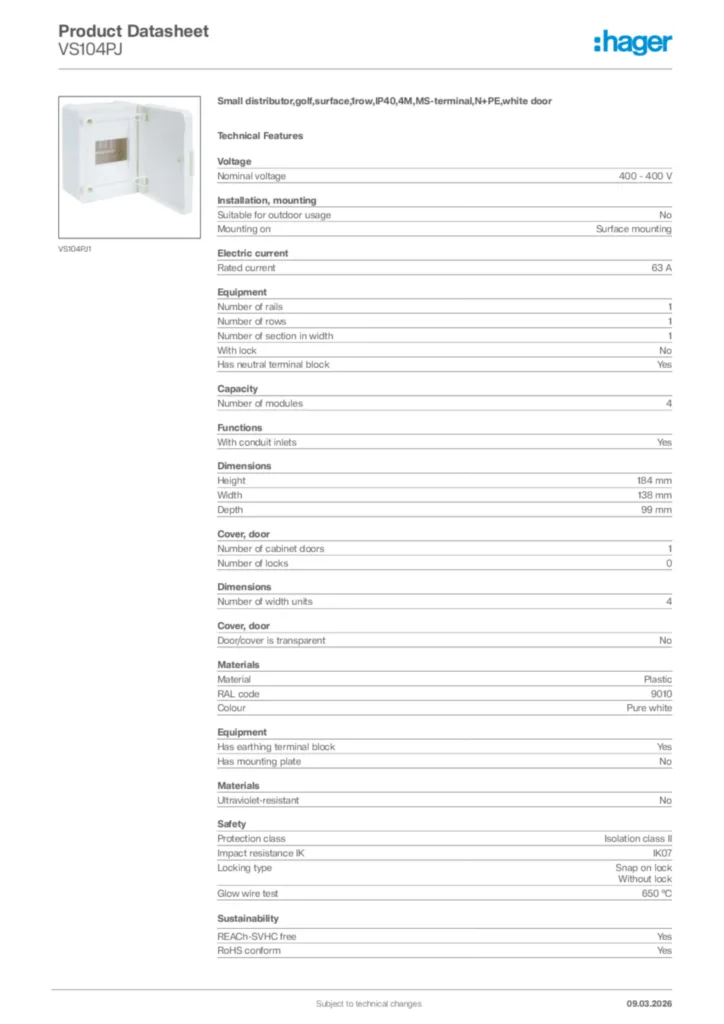

Product datasheet
Hager Product data sheet VS104PJ
Small distributor,golf,surface,1row,IP40,4M,MS-terminal,N+PE,white door
PDF -
Declaration of conformity
Declaration of conformity en-GB 2025-06-25
PDF487,74 kB
