The Hager Earth cross rail and brace for quadro.system (L500 mm) provides robust earthing and equipotential bonding in distribution panels. Rated 160 A, it ensures reliable PE continuity for residential and commercial boards. Made of copper for excellent conductivity and durability, its compact 12×495×5 mm profile and 5×5 mm busbar section save space and simplify installation, delivering safe, compliant earth distribution.
EAN
3250616139763
Packaging
1 Piece
Insulated copper laminated busbar 630A 32x6 2000mm quadro.system 8-way UC976
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Electric current
-
Rated current IN160 A
Dimensions
-
Height12 mm
-
Width495 mm
-
Width/thickness busbar5 - 5 mm
-
Depth5 mm
Materials
-
MaterialCopper
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

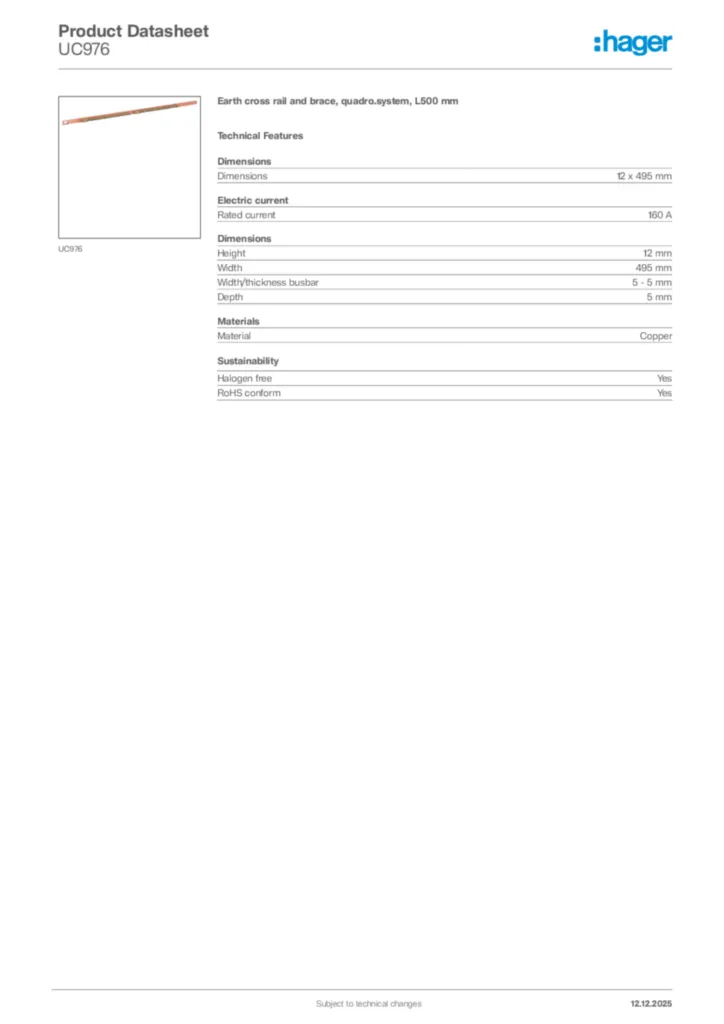

Hager Product data sheet UC976
Earth cross rail and brace, quadro.system, L500 mm
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2023-04-25
PDF387,46 kB
Declaration
Declaration of conformity International 2023-04-25
PDF395,23 kB
Declaration
Declaration of conformity International 2022-10-19
PDF707,52 kB
Declaration of conformity en-GB 2026-04-01
PDF539,93 kB
Declaration of conformity en-GB 2026-04-01
PDF538,80 kB
Declaration of conformity en-GB 2026-04-02
PDF506,23 kB
Declaration of conformity en-GB 2026-04-02
PDF503,38 kB
