The Hager quadro.system busbar support bracket (W500) securely mounts and protects 160-630 A busbars in switchboards. Made of robust steel with 70×500×50 mm dimensions, it integrates a contact protection rail to shield live parts, enhancing safety and compliance. Ideal for neat, reliable busbar arrangement in panels.
EAN
3250616138124
Packaging
1 Piece
Mounting plain front plate quadro.system Galvanised steel 75x350 mm UC812
Phase out product: please contact your electrical wholesaler for availability
Follow-up products :
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Materials
-
MaterialSteel
Dimensions
-
Height70 mm
-
Width500 mm
-
Depth50 mm
Functions
-
Type of accessory for busbarsContact protection rail
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

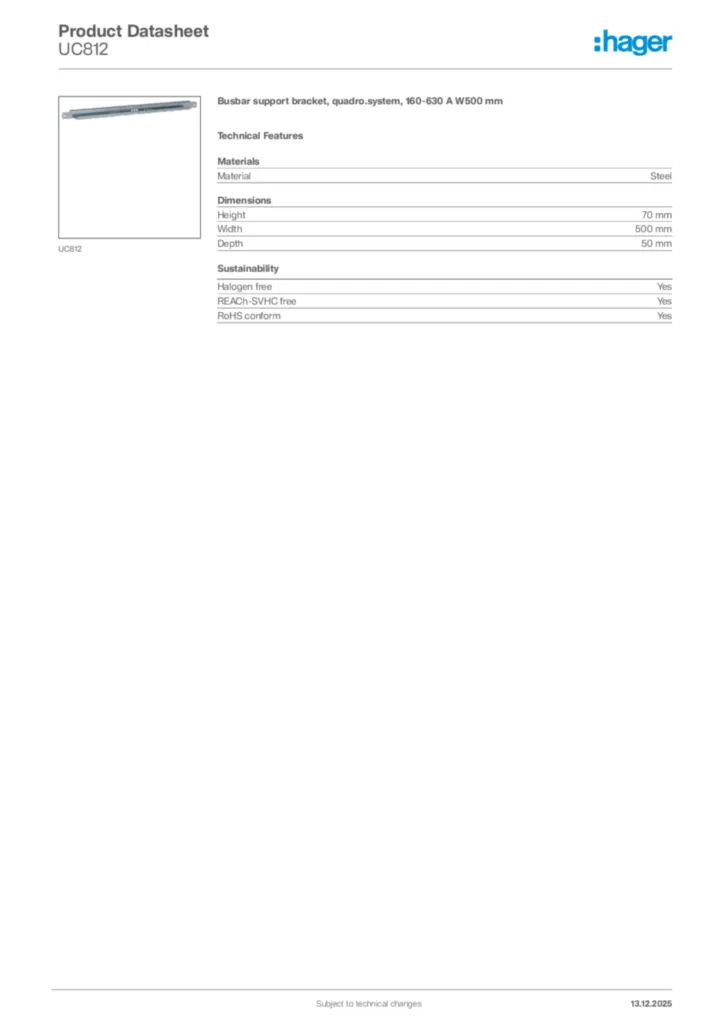

Hager Product data sheet UC812
Busbar support bracket, quadro.system, 160-630 A W500 mm
