OUTPUT DEVICE FOR 12 SHUTTERS / BLINDS 230V~ 4A / NE TXM632C
EAN
3250616048737
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Settings
-
Supported configuration modeETS, easy
Connectivity
-
With bus system KNX radioNo
Installation, mounting
-
Mounting onDIN rail
Equipment
-
With switch for manual switchYes
Materials
-
ColourLight grey
Electric current
-
Rated current4 A
-
Max. switching current4 A
Voltage
-
Operating voltage over bus21 - 32 V
Use conditions
-
Operating temperature-5 - 45 °C
Connection
-
Cross-section flexible conductor0.5 - 6 mm²
-
Cross-section rigid conductor0.5 - 6 mm²
Capacity
-
Number of modules10
Texts
-
FunctionWith safety functions e.g. for wind, rain, alarm, With positioning function for blind and lamella position, With sun shade function
-
Type of connectionWith screw terminals
-
Operating modeOperating mode can be set for roller shutter/awning
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

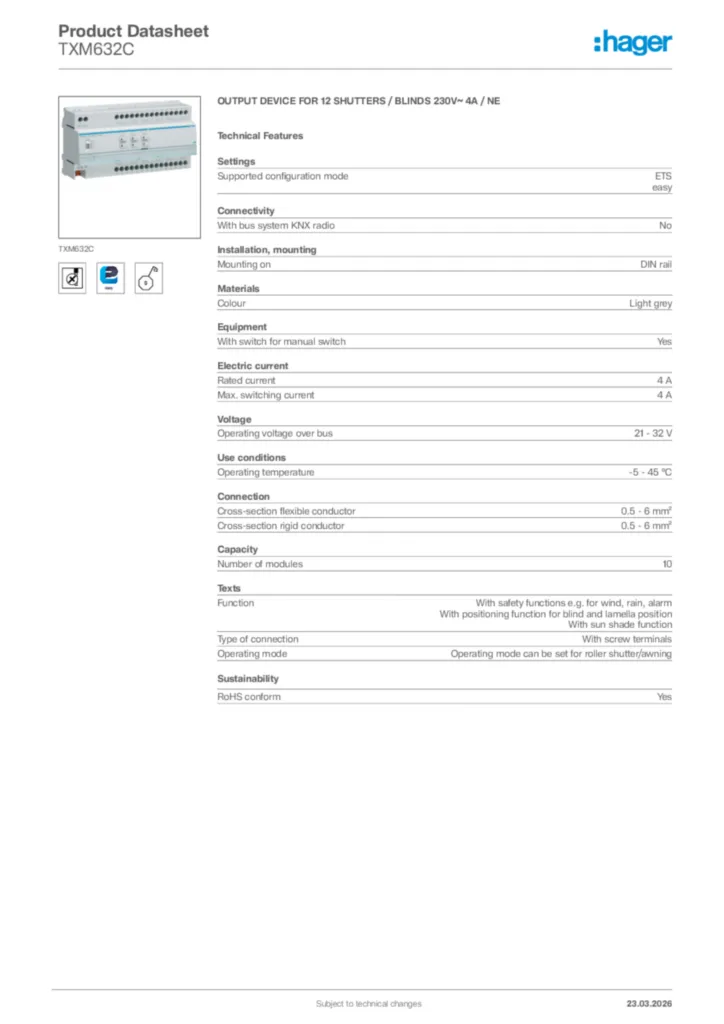

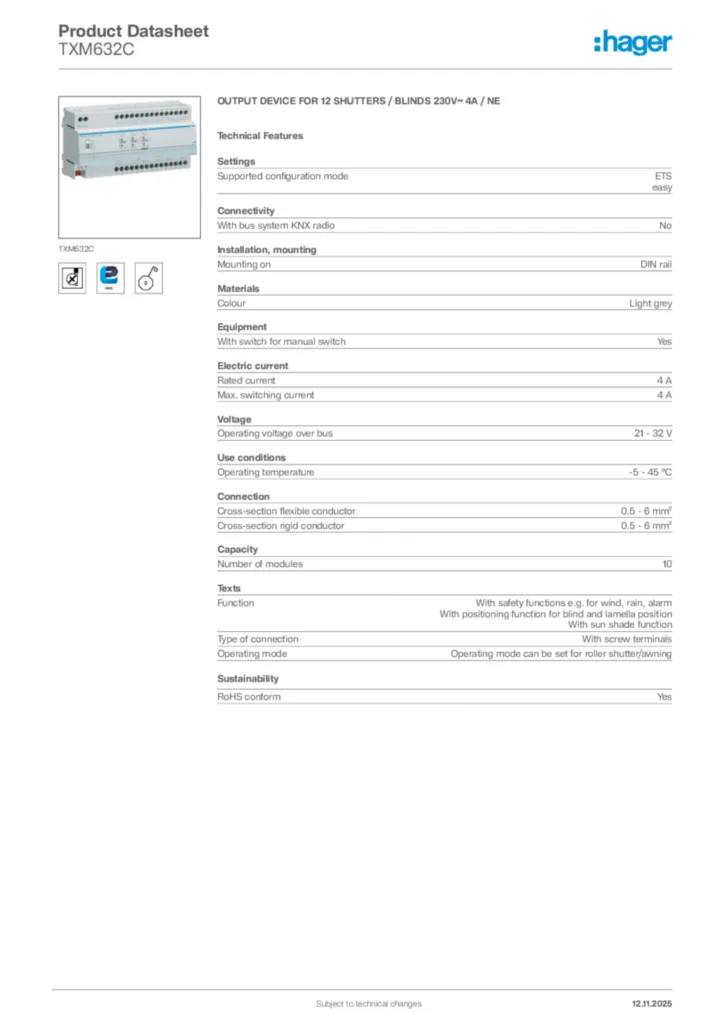

Product datasheet
undefined
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2022-01-21
PDF124,88 kB
