Motion detector radio, with battery, IP55, anthacite TRE521
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Accessories/spare parts for movement sensor 1 product.page.accessories.products-available
product.page.accessories.title-modal
Technical characteristics
Dimensions
-
Installation height4 - 4 m
-
Recommended installation height2.50 - 2.50 m
Settings
-
Supported configuration modeETS, easy
-
Minimal duty cycle30 s
Functions
-
Maximal duty cycle15 min
Connectivity
-
With bus system KNX radioYes
Scope of delivery
-
Bus connection includedYes
Lighting
-
Response brightness adjustable5 - 1000 lx
Detection
-
Detection angle220 - 220
-
Detection angle horizontal220 - 220
Use conditions
-
Operating temperature-20 - 55 °C
Materials
-
MaterialAcrylonitrile-Butadiene-Styrene (ABS), Polycarbonate (PC)
-
ColourAnthracite grey
-
RAL code7016
Texts
-
FunctionEasy additional functions: +6 scenes, on/off operating mode, scene call-up upon motion/no motion, Reset function (to factory setting)
-
Installation modeFor wall and ceiling mounting, corner installation with adapter
Reach distance
-
Max. transmission range frontally16 m
-
Max. transmission range sideways10 m
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-

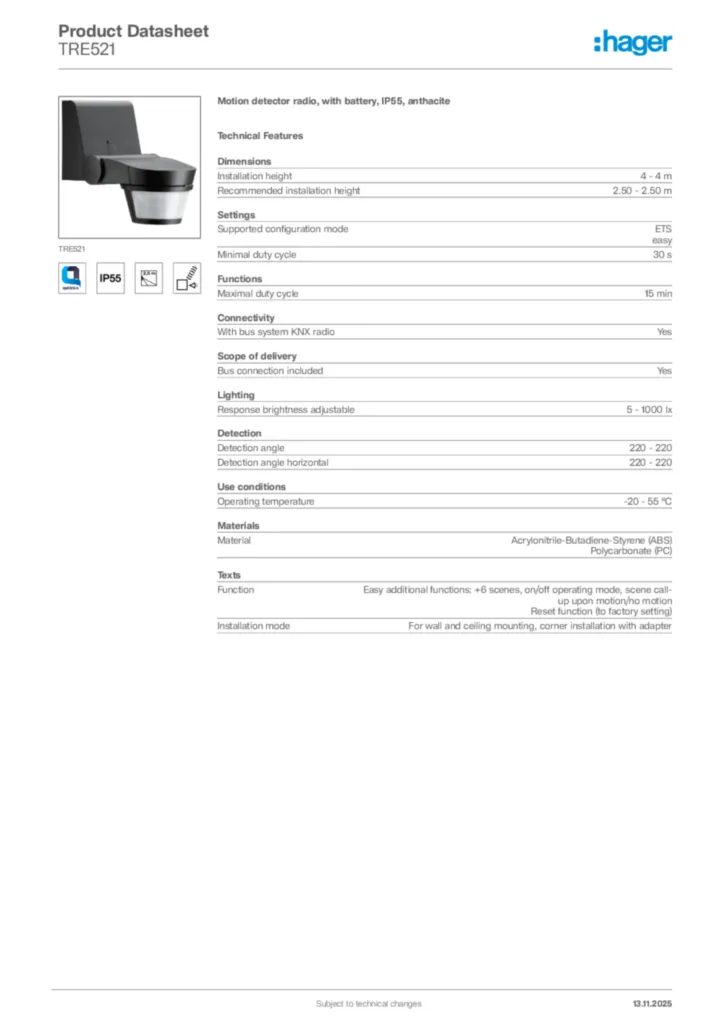

GeneratedProductDatasheet
Hager Product data sheet TRE521
Motion detector radio, with battery, IP55, anthacite
PDF -
ProductECDeclaration
EU Declaration of Conformity
Declaration of conformity en-GB 2026-10-23
PDF392,28 kB
