Motion detector radio, with battery, IP55, white TRE520
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Accessories/spare parts for movement sensor 1 products available
Technical properties
Dimensions
-
Installation height4 - 4 m
-
Recommended installation height2.50 - 2.50 m
Settings
-
Supported configuration modeETS, easy
-
Minimal duty cycle30 s
Functions
-
Maximal duty cycle15 min
Connectivity
-
With bus system KNX radioYes
Scope of delivery
-
Bus connection includedYes
Lighting
-
Response brightness adjustable5 - 1000 lx
Detection
-
Detection angle220 - 220
-
Detection angle horizontal220 - 220
Use conditions
-
Operating temperature-20 - 55 °C
Materials
-
MaterialAcrylonitrile-Butadiene-Styrene (ABS), Polycarbonate (PC)
Texts
-
FunctionEasy additional functions: +6 scenes, on/off operating mode, scene call-up upon motion/no motion, Reset function (to factory setting)
-
Installation modeFor wall and ceiling mounting, corner installation with adapter
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

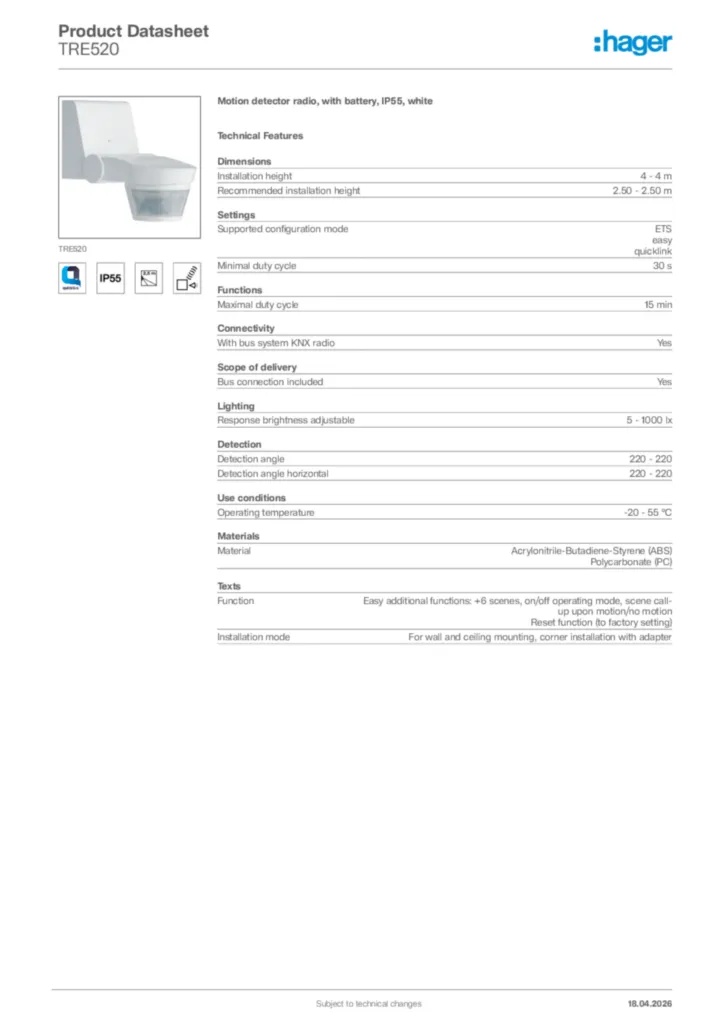

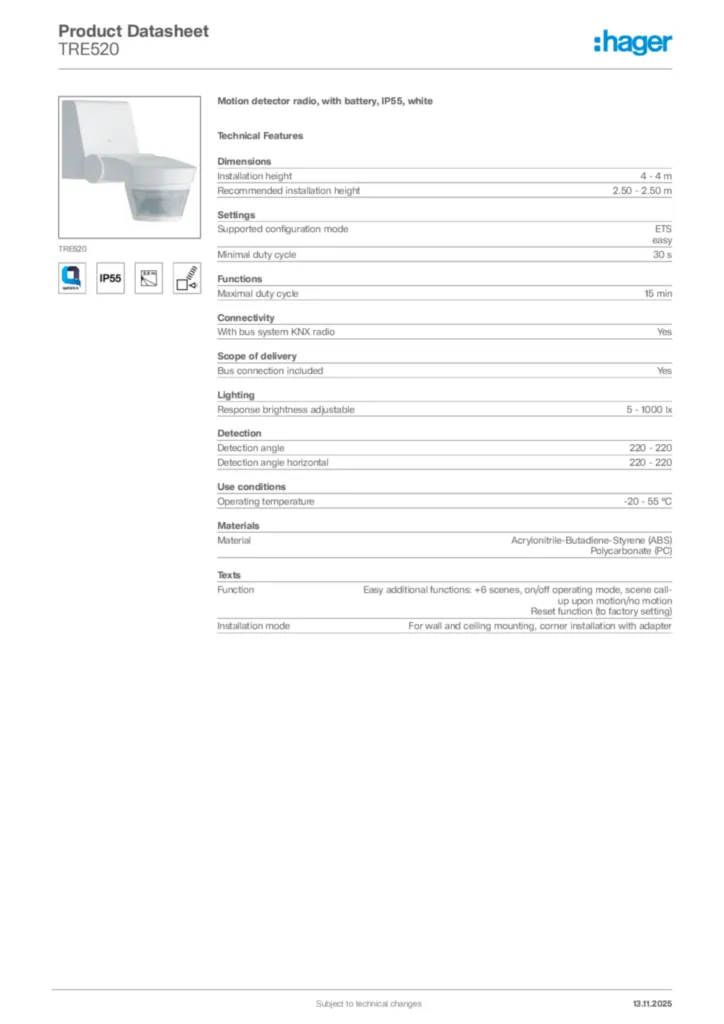

Hager Product data sheet TRE520
Motion detector radio, with battery, IP55, white
PDF -
Declaration of conformity
Declaration of conformity International 2024-01-18
PDF133,31 kB
