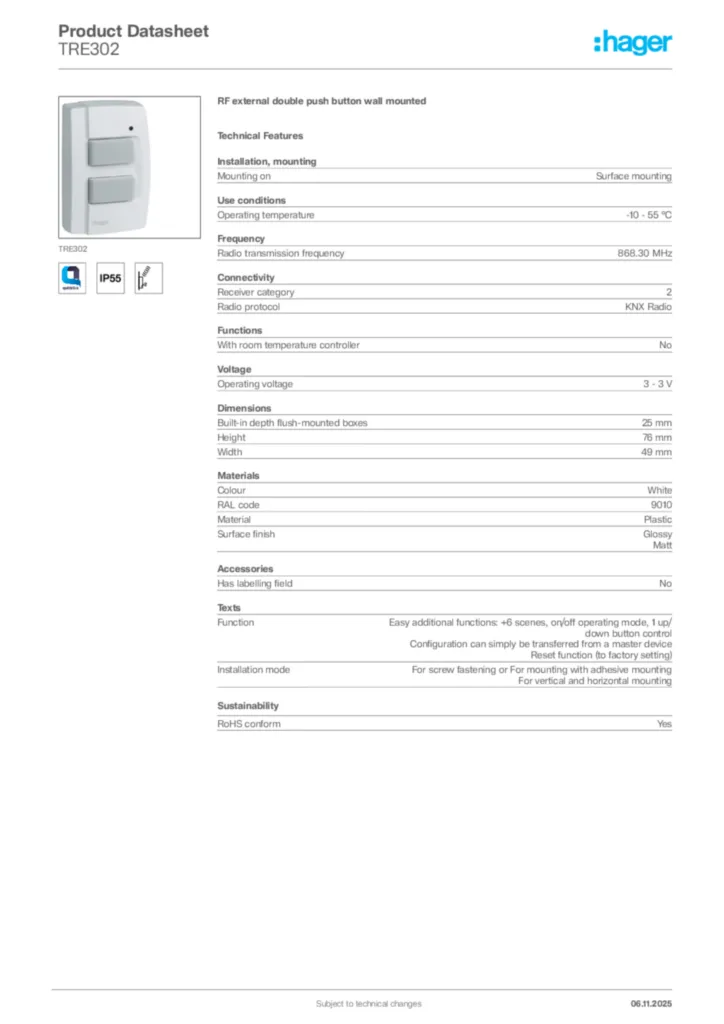

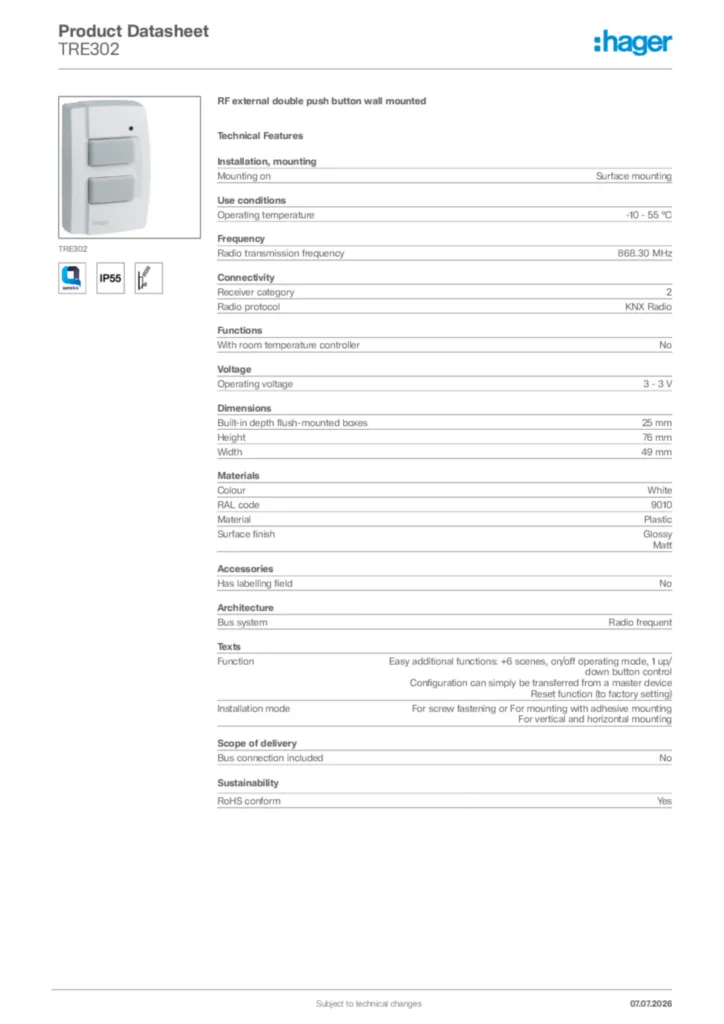

RF external double push button wall mounted TRE302
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Installation, mounting
-
Mounting onSurface mounting
Frequency
-
Radio transmission frequency868.30 MHz
Use conditions
-
Operating temperature-10 - 55 °C
Connectivity
-
Receiver category2
-
Radio protocolKNX Radio
Functions
-
With room temperature controllerNo
Voltage
-
Operating voltage3 - 3 V
Dimensions
-
Built-in depth flush-mounted boxes25 mm
-
Height76 mm
-
Width49 mm
Materials
-
ColourWhite
-
RAL code9010
-
MaterialPlastic
-
Surface finishGlossy, Matt
Accessories
-
Has labelling fieldNo
Texts
-
FunctionEasy additional functions: +6 scenes, on/off operating mode, 1 up/down button control, Configuration can simply be transferred from a master device, Reset function (to factory setting)
-
Installation modeFor screw fastening or For mounting with adhesive mounting, For vertical and horizontal mounting
Scope of delivery
-
Bus connection includedNo
