The Hager RF external single push button, wall-mounted, delivers wireless KNX Radio control for lighting or blinds. Operating at 868.30 MHz (receiver cat. 2), it supports on/off, 1 up/down, and up to 6 scenes, with master config transfer and factory reset. Surface-mount via screws or adhesive, vertical or horizontal. 3 V supply, -10…55°C. White RAL9010 plastic, 76×49×25 mm. Ideal for retrofit and flexible control.

EAN

3250615989277

Packaging

1 Piece

Actuators, controls, gateways, …

Triple LED indicator 230VAC Red/Green/Orange 1 Module IP20 TRE301

Technical properties
Environmental value
Documentations
More products

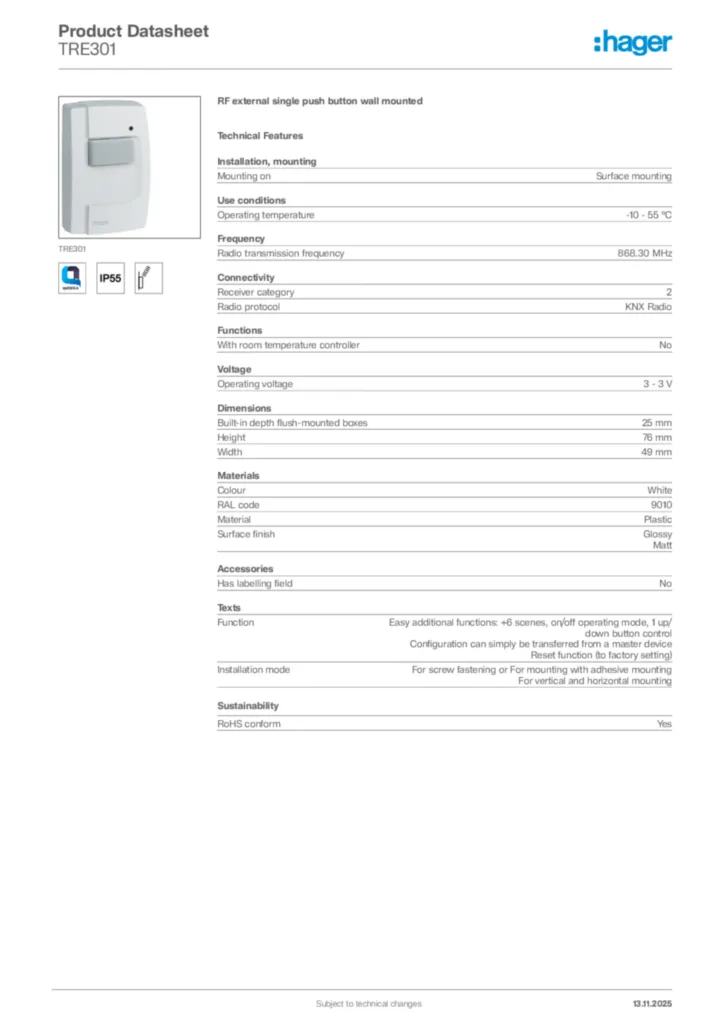

Download the data sheet

Technical properties

Mounting on

Surface mounting

Radio transmission frequency

868.30 MHz

Operating temperature

-10 - 55 °C

Receiver category

2
Radio protocol

KNX Radio

With room temperature controller

No

Operating voltage

3 - 3 V

Built-in depth flush-mounted boxes

25 mm
Height

76 mm
Width

49 mm

Colour

White
RAL code

9010
Material

Plastic
Surface finish

Glossy, Matt

Has labelling field

No

Bus system

EIB

Function

Easy additional functions: +6 scenes, on/off operating mode, 1 up/down button control, Configuration can simply be transferred from a master device, Reset function (to factory setting)
Installation mode

For screw fastening or For mounting with adhesive mounting, For vertical and horizontal mounting

Bus connection included

No

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
