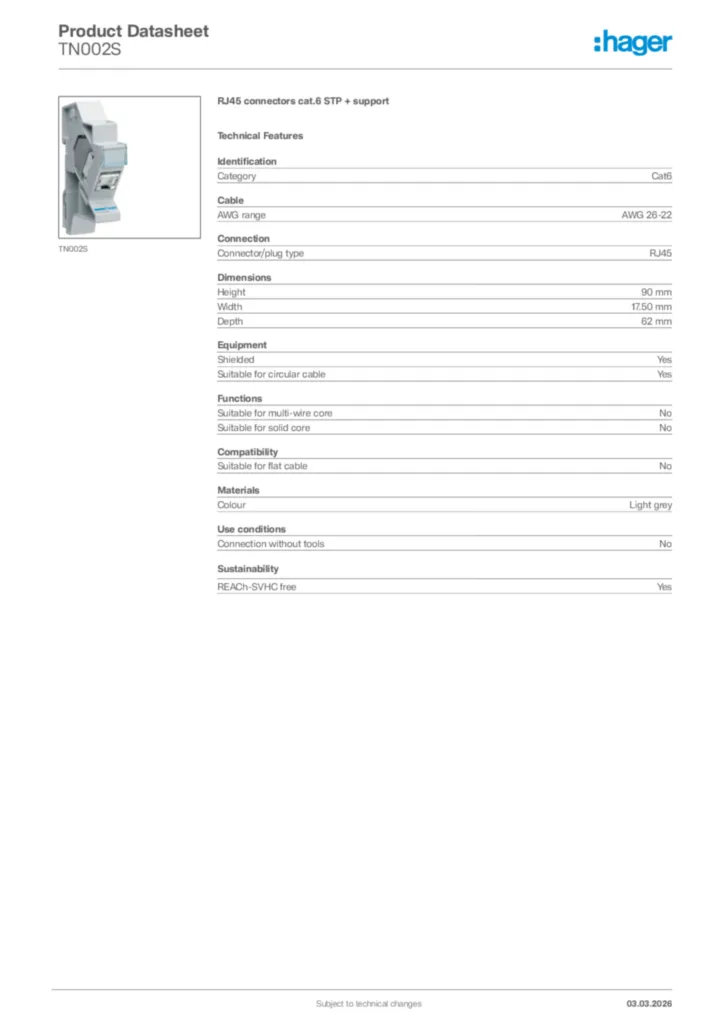

RJ45 connectors cat.6 STP + support TN002S
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 6 products available
Referenced by
-
UM31UKKit with plastic mounting plates for Multimedia applications, 450x250mm
-
UM41UKKit with plastic mounting plates for Multimedia applications, 600x250mm
-
UM51UKKit with plastic mounting plates for Multimedia applications, 750x250mm
-
UM61UKKit with plastic mounting plates for Multimedia applications, 900x250mm
-
UM71UKKit with plastic mounting plates for Multimedia applications, 1050x250mm
-
UM81UKKit with plastic mounting plates for Multimedia applications, 1200x250mm
Technical properties
Identification
-
CategoryCat6
Cable
-
AWG rangeAWG 26-22
Connection
-
Connector/plug typeRJ45
Dimensions
-
Height90 mm
-
Width17.50 mm
-
Depth62 mm
Equipment
-
ShieldedYes
-
Suitable for circular cableYes
Functions
-
Suitable for multi-wire coreNo
-
Suitable for solid coreNo
Compatibility
-
Suitable for flat cableNo
Materials
-
ColourLight grey
Use conditions
-
Connection without toolsNo
