Domovea expert TJA470
Phase out product: please contact your electrical wholesaler for availability
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
DC power supply 1 product.page.accessories.products-available
Technical characteristics
Equipment
-
Web serverYes
-
Number of channels1
Voltage
-
Operating voltage24 - 24 V
-
Operating voltage over bus21 - 32 V
-
Type voltage supplyDC
Connectivity
-
Type of interface bus system/media gatewayMultiple interface
Safety
-
Ingress Protection (IP) classIP20
Capacity
-
Number of modules6
Use conditions
-
Operating temperature-5 - 45 °C
Controls and indicators
-
With LED indicationYes
Dimensions
-
Number of width units6
Texts
-
EncodingManagement of 4 configurable user profiles
-
FunctionLocal and remote connection of the door station with IP end devices, such as smartphones, tablet computers and PCs
-
LabellingLarge labelling field
-
Connectors jacksWith 2 USB sockets type A
-
Type of connectionWith quickconnect plug-in terminals
Functions
-
Number of function channels500
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

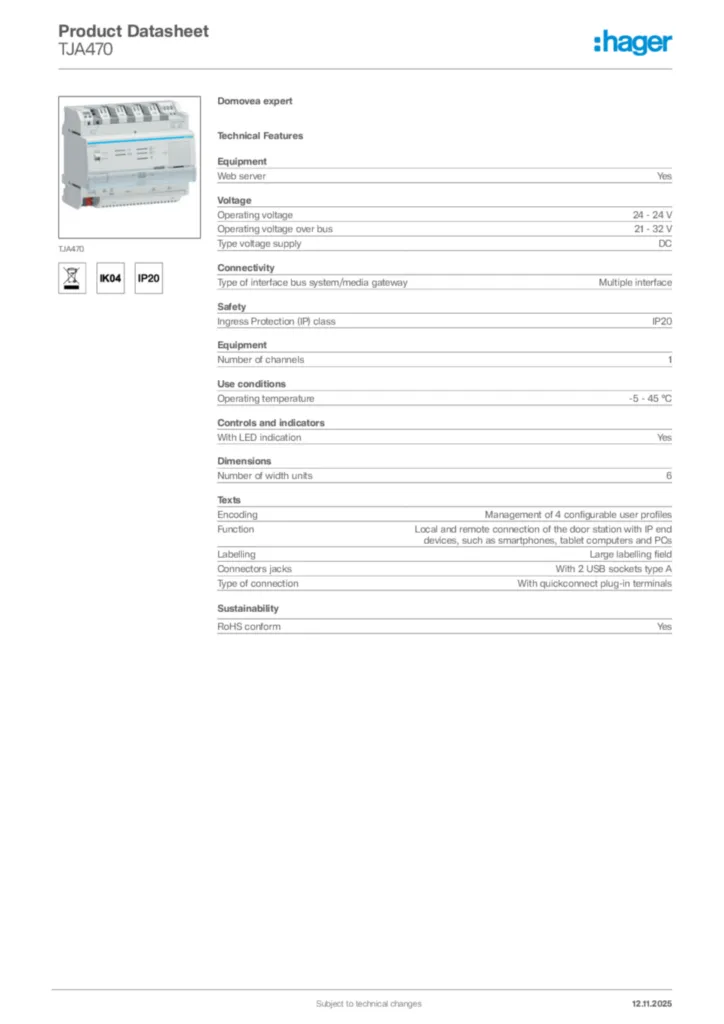

Hager Product data sheet TJA470
Domovea expert
PDF -
ProductInstallationManual
Leaflet domovea (EN)
Leaflet TJA470, TJA670 (English, 2023-06-29)
PDF900,23 kB -
ProductImplementationSoftware
Access Client Touch Panel V 1.5.7
Elcom Access app 1.5.7 for android
ZIP64,30 MB
Hager Pilot MacOS
Hager Pilot MacOS 2.2.1
DMG95,45 MB
Hager Pilot Windows
Hager Pilot Windows 2.2.1
EXE152,91 MB
Server Software (TJA470, TJA670)
Server Software 8.2.2
ZIP224,92 MB
domovea Client Android
domovea Client Android 3.15.3
APK152,95 MB
domovea Client MacOS
domovea Client MacOS 3.15.3
DMG188,92 MB
domovea Client Windows
domovea Client Windows 3.15.3_32
EXE291,06 MB -
ProductETSBase
ETS product database (Dummy application)
KNX product database International 2024-03-11
KNXPROD90,49 kB
ETS product database for TJA470
KNX product database en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pt-PT, sv-SE 2024-03-11
KNXPROD83,44 kB -
ProductManuals
Installation manual domovea (EN)
Installation manual domovea TJA470, TJA670 (English, 2023-11-16)
PDF1,75 MB -
ProductECDeclaration
Declaration of conformity International 2022-11-02
PDF144,52 kB
More documentation
