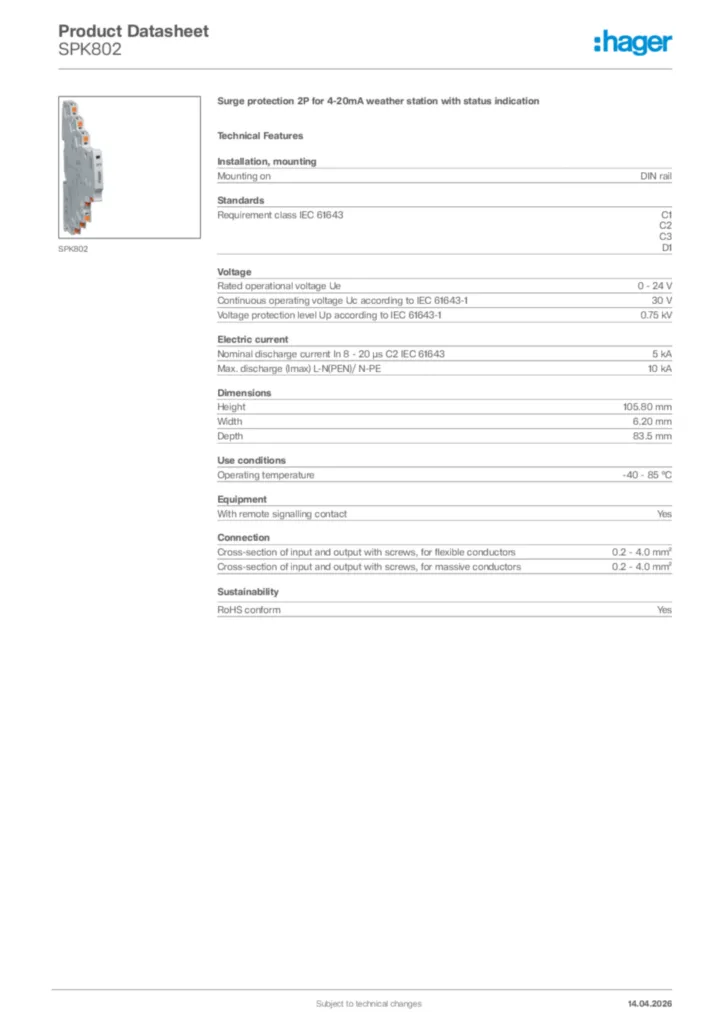

Surge protection 2P for 4-20mA weather station with status indication SPK802
Phase out product: please contact your electrical wholesaler for availability
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Installation, mounting
-
Mounting onDIN rail
Standards
-
Requirement class IEC 61643C1, C2, C3, D1
Voltage
-
Rated operational voltage Ue0 - 24 V
-
Continuous operating voltage Uc according to IEC 61643-130 V
-
Voltage protection level Up according to IEC 61643-10.75 kV
Electric current
-
Nominal discharge current In 8 - 20 µs C2 IEC 616435 kA
-
Max. discharge (Imax) L-N(PEN)/ N-PE10 kA
Dimensions
-
Height105.80 mm
-
Width6.20 mm
-
Depth83.5 mm
Use conditions
-
Operating temperature-40 - 85 °C
Equipment
-
With remote signalling contactYes
Connection
-
Cross-section of input and output with screws, for flexible conductors0.2 - 4.0 mm²
-
Cross-section of input and output with screws, for massive conductors0.2 - 4.0 mm²
