The Hager RS485 Jbus/Modbus unit for SM102E enables robust meter networking and easy integration with BMS/SCADA via Modbus/Jbus. Compact (84×21×36 mm) with IP20 housing, it accepts 0.5-1.5 mm² conductors and operates from -10 to 55 °C. A 4 kV insulation rating enhances safety and noise immunity. Ideal for reliable data acquisition and remote supervision in electrical panels.

EAN

3250615632104

Packaging

1 Piece

Energy metering agardio

RS485 Jbus/Modbus unit for SM103E IP20 Ui 4kV 1 module SM210

Technical properties
Environmental value
Documentations
More products

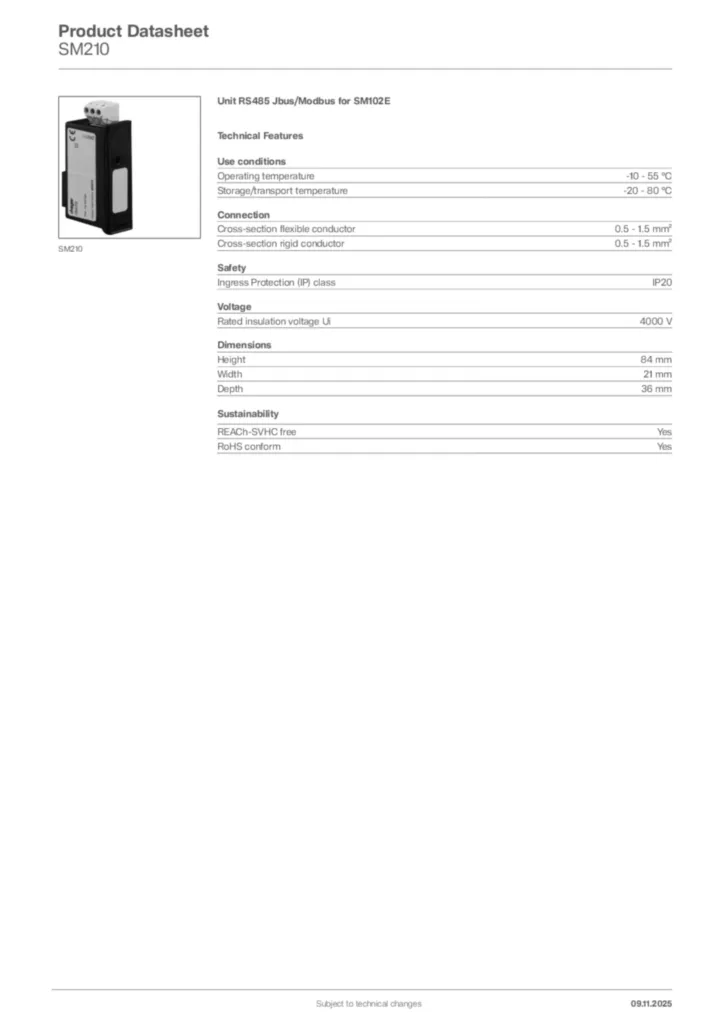

Download the data sheet

Technical properties

Operating temperature

-10 - 55 °C
Storage/transport temperature

-20 - 80 °C

Cross-section flexible conductor

0.5 - 1.5 mm²
Cross-section rigid conductor

0.5 - 1.5 mm²

Ingress Protection (IP) class

IP20

Rated insulation voltage Ui

4000 V

Height

84 mm
Width

21 mm
Depth

36 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
