The Hager 3-pole 100A modular switch provides reliable isolation and switching for three-phase loads up to 400 V AC. Rated 100 A in AC-21/AC-22, it offers Icc 1.2 kA (gG), Icm 1.69 kA, and Icw 1 s 1.2 kA. Compact 3 modules, IP20. Screw terminals accept 6-50 mm² (rigid) and 6-35 mm² (flex). 40,000 mechanical ops, 2,500 electrical. Ideal for residential and commercial distribution panels.

EAN

3250615510303

VPE

4 pieces

Switches, push buttons and LED indicator lights

Modular switch 1P 32A 230V AC21/AC22 1NO Screw terminals 1 module SBN390

Accessories
Technical characteristics
catalog.pageproduct.title_sustainability.h2
Documentations
More products

product.page.accessories.title

Terminal cover 1 product.page.accessories.products-available
Auxiliary device for distribution board devices 1 product.page.accessories.products-available

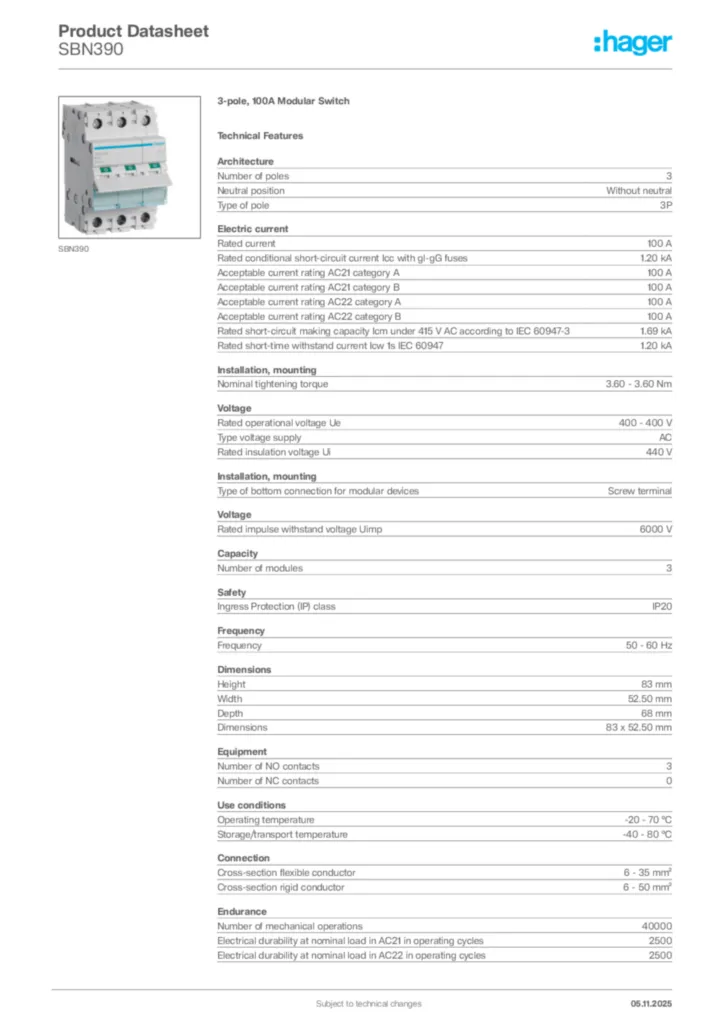

Technical characteristics

Number of poles

3
Control/operation element

Break switch
Type of pole

3P

Rated current IN

100 A
Rated conditional short-circuit current Icc with gl-gG fuses

1.20 kA
Acceptable current rating AC21 category A

100 A
Acceptable current rating AC21 category B

100 A
Acceptable current rating AC22 category A

100 A
Acceptable current rating AC22 category B

100 A
Rated short-circuit making capacity Icm under 415 V AC according to IEC 60947-3

1.69 kA
Rated short-time withstand current Icw 1s IEC 60947

1.20 kA

Nominal tightening torque

3.60 - 3.60 Nm
Type of bottom connection for modular devices

biconnect

Rated operational voltage Ue

400 - 400 V
Type voltage supply

AC
Rated insulation voltage Ui

440 V
Rated impulse withstand voltage Uimp

6000 V

Number of modules

3

Ingress Protection (IP) class

IP20

Frequency

50 - 60 Hz

Height

83 mm
Width

52.50 mm
Depth

68 mm

Number of NO contacts

3
Number of NC contacts

0

Operating temperature

-20 - 70 °C
Storage/transport temperature

-40 - 80 °C

Cross-section flexible conductor

6 - 35 mm²
Cross-section rigid conductor

6 - 50 mm²

Number of mechanical operations

40000
Electrical durability at nominal load in AC21 in operating cycles

2500
Electrical durability at nominal load in AC22 in operating cycles

2500

Power dissipation at IN

16.50 W
Power loss per pole at In

5.50 W

Down connection alignment for modular devices

Aligned terminal
Top connection alignment for modular devices

Aligned terminal

catalog.pageproduct.title_sustainability.h2

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
