The Hager 3‑pole 32A modular switch provides reliable isolation and control of three‑phase circuits up to 400 V AC. Rated 32A AC21/AC22, it offers 0.67 kA making and 0.48 kA 1 s withstand, with conditional 3 kA using gG fuses. Compact 2‑module IP20 design with screw terminals (1.5-16 mm²), 50-60 Hz. Durable: 200,000 mechanical and 25,000 electrical operations. Ideal for motors and distribution panels.

EAN

3250615510143

Packaging

Switches, push buttons and LED indicator lights

Modular switch disconnector 2P 32A AC22A 230V 1 module SBN332

Accessories
Technical properties
Environmental value
Documentations
More products

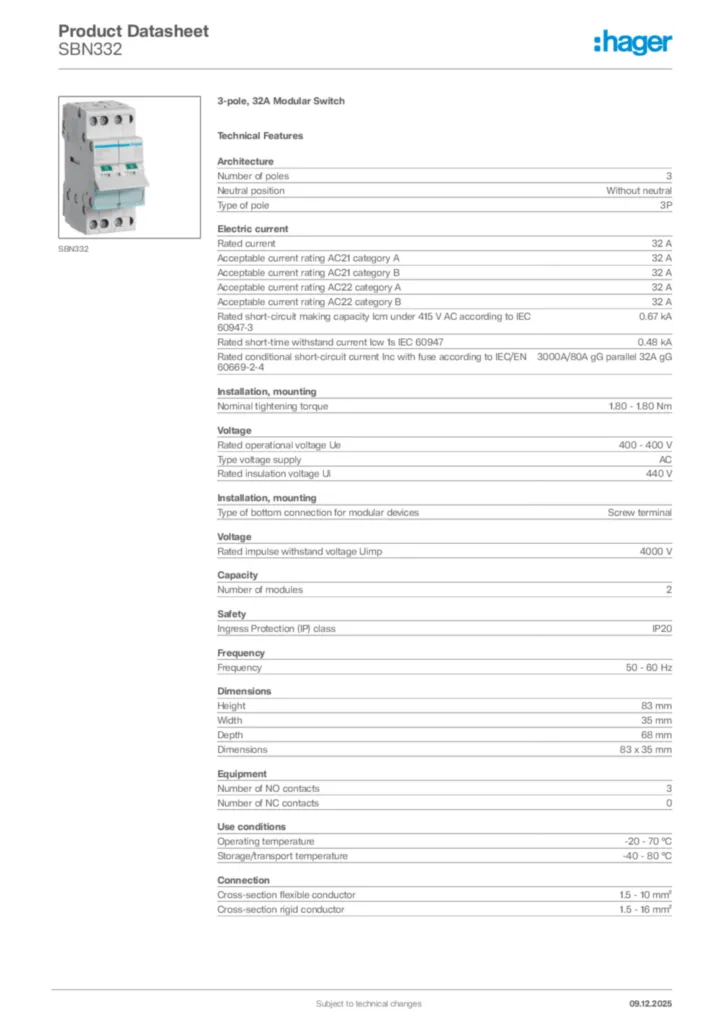

Download the data sheet

Complete your system

Auxiliary device for distribution board devices 1 products available

Technical properties

Number of poles

3
Control/operation element

Break switch
Type of pole

3P

Rated current

32 A
Acceptable current rating AC21 category A

32 A
Acceptable current rating AC21 category B

32 A
Acceptable current rating AC22 category A

32 A
Acceptable current rating AC22 category B

32 A
Rated short-circuit making capacity Icm under 415 V AC according to IEC 60947-3

0.67 kA
Rated short-time withstand current Icw 1s IEC 60947

0.48 kA
Rated conditional short-circuit current Inc with fuse according to IEC/EN 60669-2-4

3000A/80A gG parallel 32A gG

Nominal tightening torque

1.80 - 1.80 Nm
Type of bottom connection for modular devices

Screw terminal

Rated operational voltage Ue

400 - 400 V
Type voltage supply

AC
Rated insulation voltage Ui

440 V
Rated impulse withstand voltage Uimp

4000 V

Number of modules

2

Ingress Protection (IP) class

IP20

Frequency

50 - 60 Hz

Height

83 mm
Width

35 mm
Depth

68 mm

Number of NO contacts

3
Number of NC contacts

0

Operating temperature

-20 - 70 °C
Storage/transport temperature

-40 - 80 °C

Cross-section flexible conductor

1.5 - 10 mm²
Cross-section rigid conductor

1.5 - 16 mm²

Number of mechanical operations

200000
Electrical durability at nominal load in AC21 in operating cycles

25000
Electrical durability at nominal load in AC22 in operating cycles

25000

Total power loss under IN

4.50 W
Power loss per pole at In

1.50 W

Down connection alignment for modular devices

Shifted terminal
Top connection alignment for modular devices

Shifted terminal
