2-pole, 63A Modular Switch SBN263

Name: SBN263
Brand: Hager
SKU: SBN2632

EAN

3250615510211

Packaging

Accessories
Technical properties
Environmental value
Documentations
More products

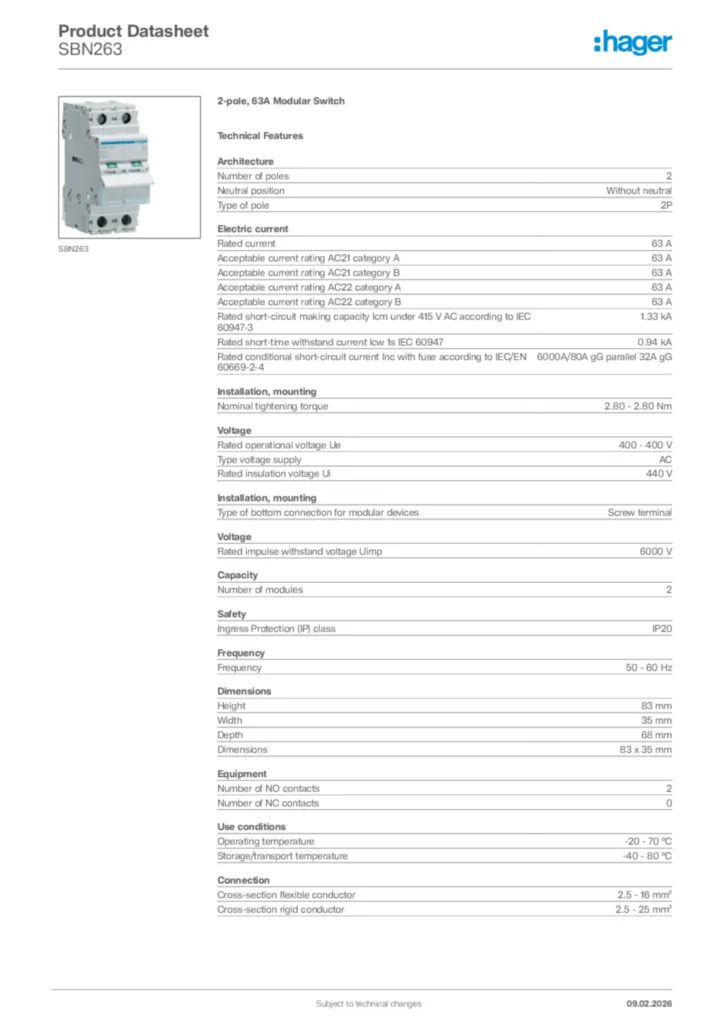

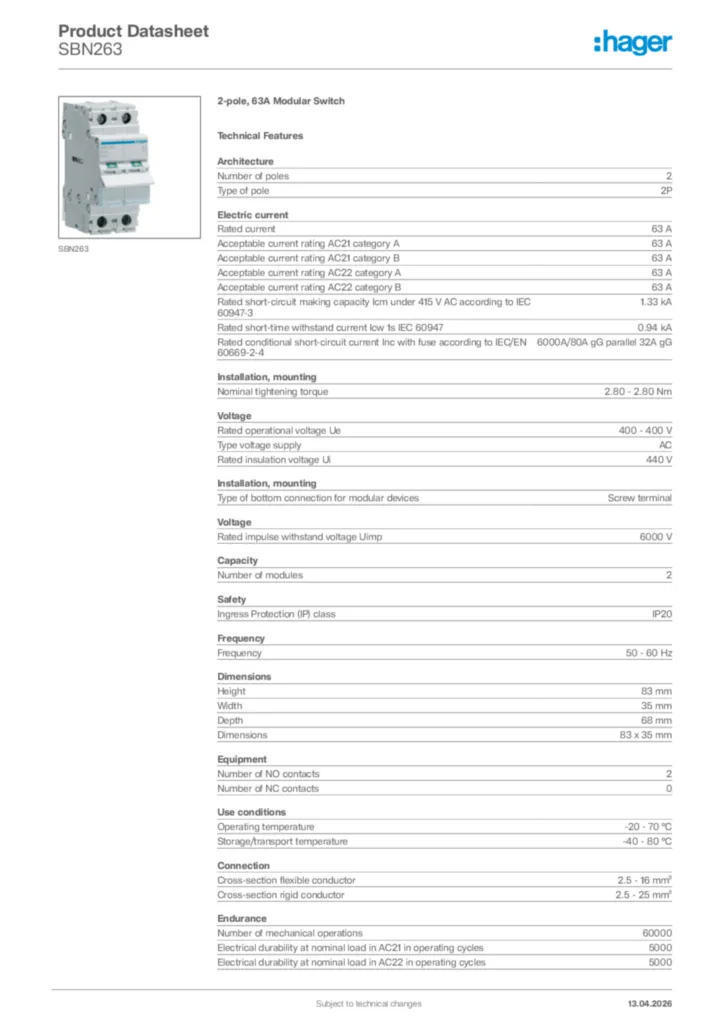

Download the data sheet

Complete your system

Terminal cover 1 products available
Auxiliary device for distribution board devices 1 products available

Technical properties

Number of poles

2
Neutral position

Without neutral
Type of pole

2P

Rated current

63 A
Acceptable current rating AC21 category A

63 A
Acceptable current rating AC21 category B

63 A
Acceptable current rating AC22 category A

63 A
Acceptable current rating AC22 category B

63 A
Rated short-circuit making capacity Icm under 415 V AC according to IEC 60947-3

1.33 kA
Rated short-time withstand current Icw 1s IEC 60947

0.94 kA
Rated conditional short-circuit current Inc with fuse according to IEC/EN 60669-2-4

6000A/80A gG parallel 32A gG

Nominal tightening torque

2.80 - 2.80 Nm

Rated operational voltage Ue

400 - 400 V
Type voltage supply

AC
Rated insulation voltage Ui

440 V
Rated impulse withstand voltage Uimp

6000 V

Number of modules

2

Ingress Protection (IP) class

IP20

Frequency

50 - 60 Hz

Height

83 mm
Width

35 mm
Depth

68 mm

Number of NO contacts

2
Number of NC contacts

0

Operating temperature

-20 - 70 °C
Storage/transport temperature

-40 - 80 °C

Cross-section flexible conductor

2.5 - 16 mm²
Cross-section rigid conductor

2.5 - 25 mm²

Number of mechanical operations

60000
Electrical durability at nominal load in AC21 in operating cycles

5000
Electrical durability at nominal load in AC22 in operating cycles

5000

Total power loss under IN

4.60 W
Power loss per pole at In

2.30 W

Top connection alignment for modular devices

Aligned terminal

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
