The Hager 2-pole 25A modular switch with LED indicator provides safe switching and isolation of single-phase circuits. Rated 230V AC, 50/60Hz, it carries 25A in AC21/AC22 duty, with 4kV impulse withstand and Ui 440V. Compact 1 module saves rail space; IP20. Robust: 200,000 mechanical ops, 25,000 electrical. Screw terminals for 1.5-16 mm² conductors. Ideal for lighting/heating control with clear status indication.
EAN
3250615511737
VPE
1 piece
2P 16A Modular Switch with LED Indicator 230V AC, 1 Module SBB225
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Auxiliary device for distribution board devices 1 product.page.accessories.products-available
Technical characteristics
Architecture
-
Number of poles2
-
Control/operation elementBreak switch with light
-
Type of pole2P
Electric current
-
Rated current IN25 A
-
Acceptable current rating AC21 category A25 A
-
Acceptable current rating AC21 category B25 A
-
Acceptable current rating AC22 category A25 A
-
Acceptable current rating AC22 category B25 A
-
Rated short-circuit making capacity Icm under 240 V AC according to IEC 60947-30.52 kA
-
Rated short-time withstand current Icw 1s IEC 609470.37 kA
-
Rated conditional short-circuit current Inc with fuse according to IEC/EN 60669-2-43000A/50A gG
Installation, mounting
-
Nominal tightening torque1.80 - 1.80 Nm
-
Suitable for outdoor usageNo
-
Type of bottom connection for modular devicesScrew terminal
Voltage
-
Rated operational voltage Ue230 - 230 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui440 V
-
Rated impulse withstand voltage Uimp4000 V
Capacity
-
Number of modules1
Safety
-
Ingress Protection (IP) classIP20
Frequency
-
Frequency50 - 60 Hz
Dimensions
-
Height83 mm
-
Width17.50 mm
-
Depth68 mm
Equipment
-
Number of NO contacts2
-
Number of NC contacts0
Use conditions
-
Operating temperature-20 - 70 °C
-
Storage/transport temperature-40 - 80 °C
Connection
-
Cross-section flexible conductor1.5 - 10 mm²
-
Cross-section rigid conductor1.5 - 16 mm²
Endurance
-
Number of mechanical operations200000
-
Electrical durability at nominal load in AC21 in operating cycles25000
-
Electrical durability at nominal load in AC22 in operating cycles25000
Power
-
Power dissipation at IN1.90 W
-
Power loss per pole at In0.90 W
Lighting
-
Type of lampLED
Connectivity
-
Down connection alignment for modular devicesShifted terminal
-
Top connection alignment for modular devicesShifted terminal
Compatibility
-
Suitable for DIN RailYes
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

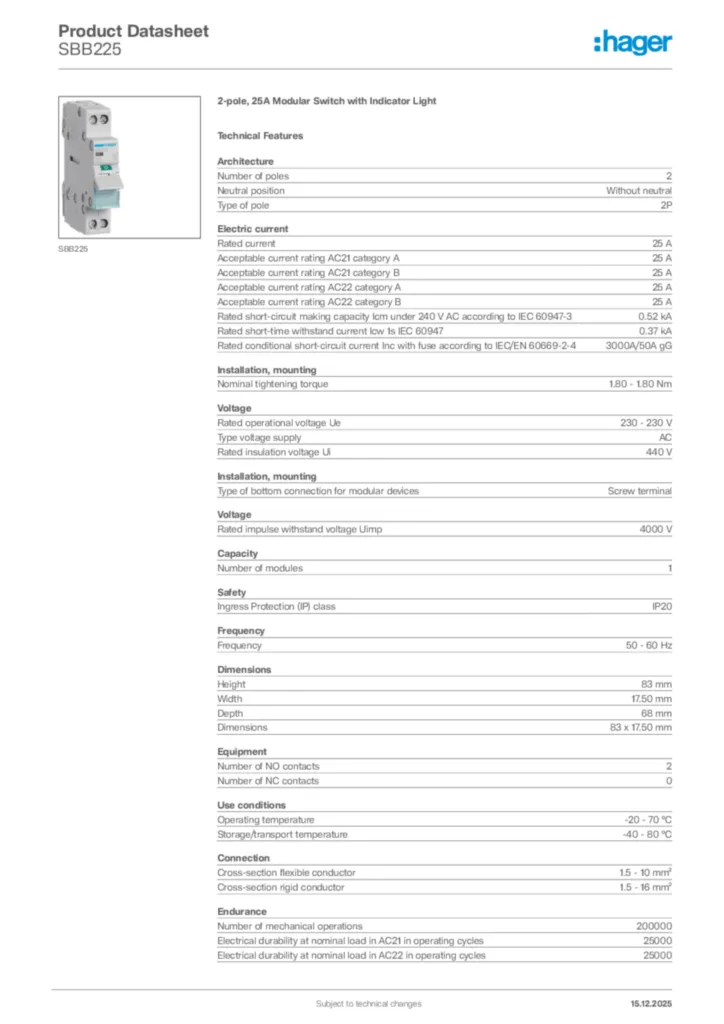

Hager Product data sheet SBB225
