    Trip free switch 4P 80A SA480

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Trip free switch 4P 80A

    SA480

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Archi­tec­ture
    • Number of poles
      4
    • Type of pole
      4P
    Elec­tric current
    • Rated current
      80 A
    • Rated short-­time with­stand current Icw 1s IEC 60947
      0.96 kA
    Install­a­tion, mounting
    • Nominal tight­ening torque
      2.70 - 2.70 Nm
    Voltage
    • Rated oper­a­tional voltage Ue
      230 - 415 V
    • Type voltage supply
      AC
    Capa­city
    • Number of modules
      4.50
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Dimen­sions
    • Height
      83 mm
    • Width
      79 mm
    • Depth
      68 mm
    Equip­ment
    • Number of NO contacts
      5
    • Number of NC contacts
      1
    Use condi­tions
    • Oper­ating temper­ature
      -25 - 40 °C
    • Stor­age/trans­port temper­ature
      -25 - 70 °C
    Connec­tion
    • Cross-sec­tion rigid conductor
      Sw: 6 - 25 mm² - Aux: 1 - 10 mm²
    Power
    • Total power loss under IN
      21.87 W
    • Power loss per pole at In
      5.80 W

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    Certifications and documents

    2-pole, 63A Modular Switch
    PDF
    2,89 MB
    Hager REACH declaration SA480
    PDF

    Downloads

    • Image SA480 | Hager Africa

      Product Image SA480

    • Product datasheet

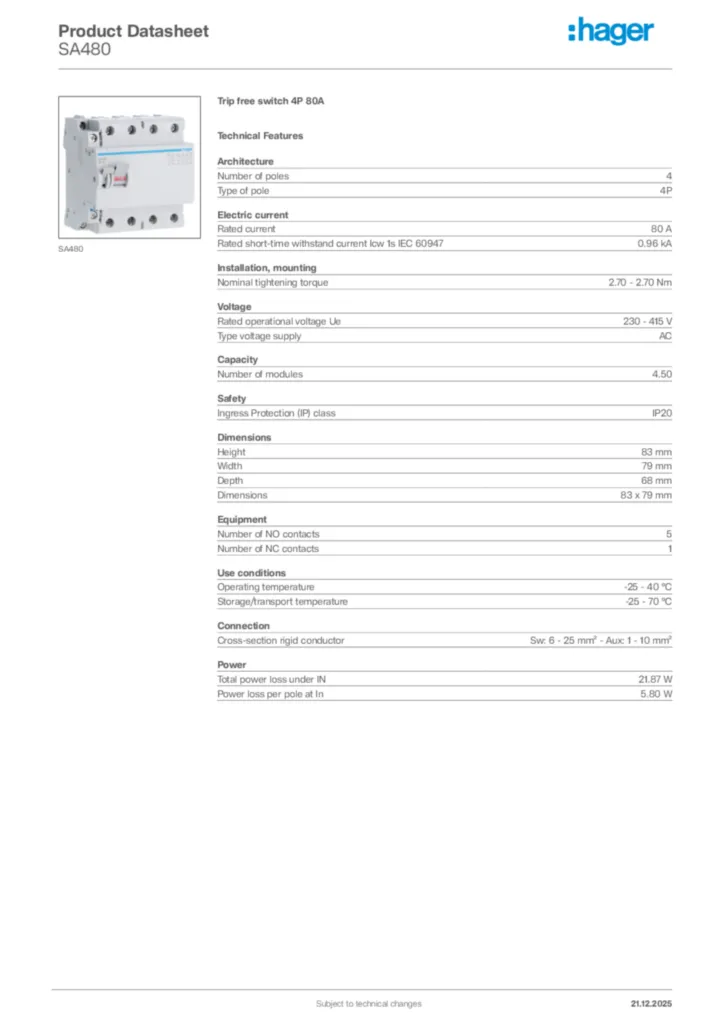

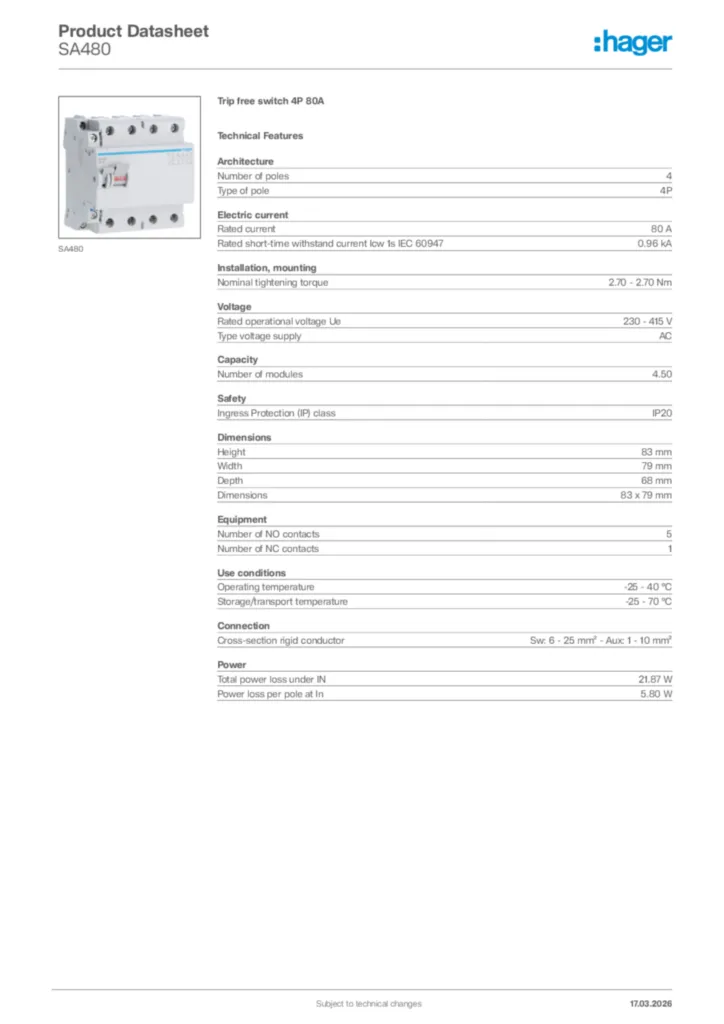

      Image Hager Product data sheet SA480 | Hager Africa

      Hager Product data sheet SA480

      Trip free switch 4P 80A

      PDF
