The Hager MCB 1P 15kA C-50A 1M safeguards circuits from overloads and short circuits in demanding residential, commercial, and industrial boards. 50A C-curve suits inductive loads; 15kA Icu (10kA Icn, 7.5kA Ics) ensures high fault protection. Compact 1-module, 240-415 V AC. Biconnect/screw terminals, 1-35 mm², 2.8 Nm. 6 kV impulse, IP20, -25…70°C. Durable: 20,000 mech/4,000 elec cycles. 360° mounting.

EAN

3250614644917

Packaging

1 Piece

Miniature circuit breakers (MCB and MCB Multipolar)

MCB 1P 63A 15kA Curve C 1 Module AC 240-415V NRN150

Technical properties
Environmental value
Documentations
More products

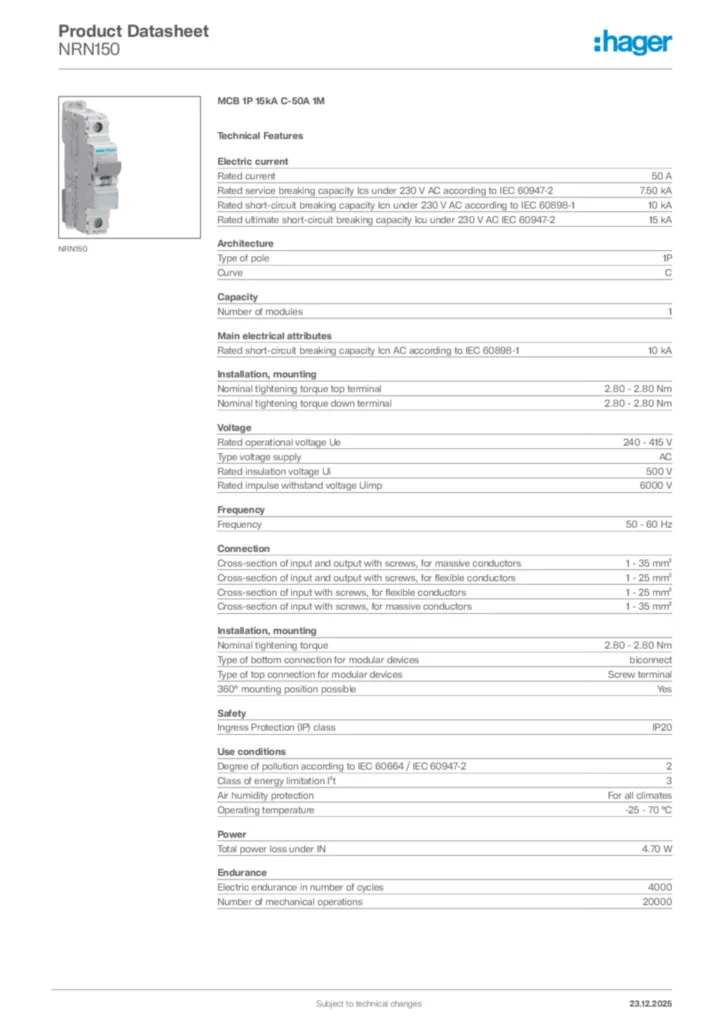

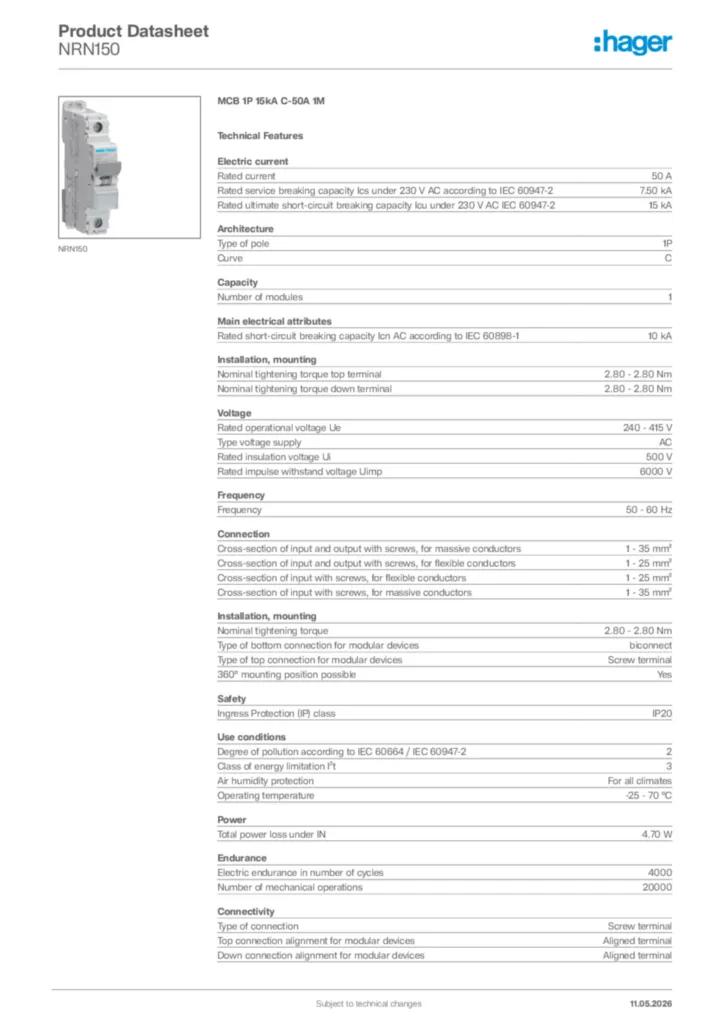

Download the data sheet

Technical properties

Rated current

50 A
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

7.50 kA
Rated ultimate short-circuit breaking capacity Icu AC IEC 60947-2

15 kA

Type of pole

1P
Curve

C

Number of modules

1

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

10 kA

Nominal tightening torque top terminal

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.80 - 2.80 Nm
Nominal tightening torque

2.80 - 2.80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated operational voltage Ue

240 - 415 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²

Ingress Protection (IP) class

IP20
Grid distance

60 mm

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Air humidity protection

For all climates
Operating temperature

-25 - 70 °C

Total power loss under IN

4.70 W

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

83 mm
Width

17.50 mm
Depth

70 mm
