The Hager MCB 1P 25kA C-6A 1M safeguards single-phase circuits against overloads and short circuits. With 25 kA Icu (IEC 60947-2), 10 kA Icn (IEC 60898-1), and C-curve tripping, it suits demanding residential and commercial panels. Compact 1 module, 240-415 V AC, 50-60 Hz. Screw terminals/biconnect, 1-35 mm², 2.8 Nm. 6 kV impulse withstand, IP20, -25 to 70 °C, 4,000 electrical/20,000 mechanical cycles.

EAN

3250614644832

Packaging

1 Piece

Miniature circuit breakers (MCB and MCB Multipolar)

Circuit breaker 1P 40A 6kA Curve C 230/400V 1 Module NRN106

Technical properties
Environmental value
Documentations
More products

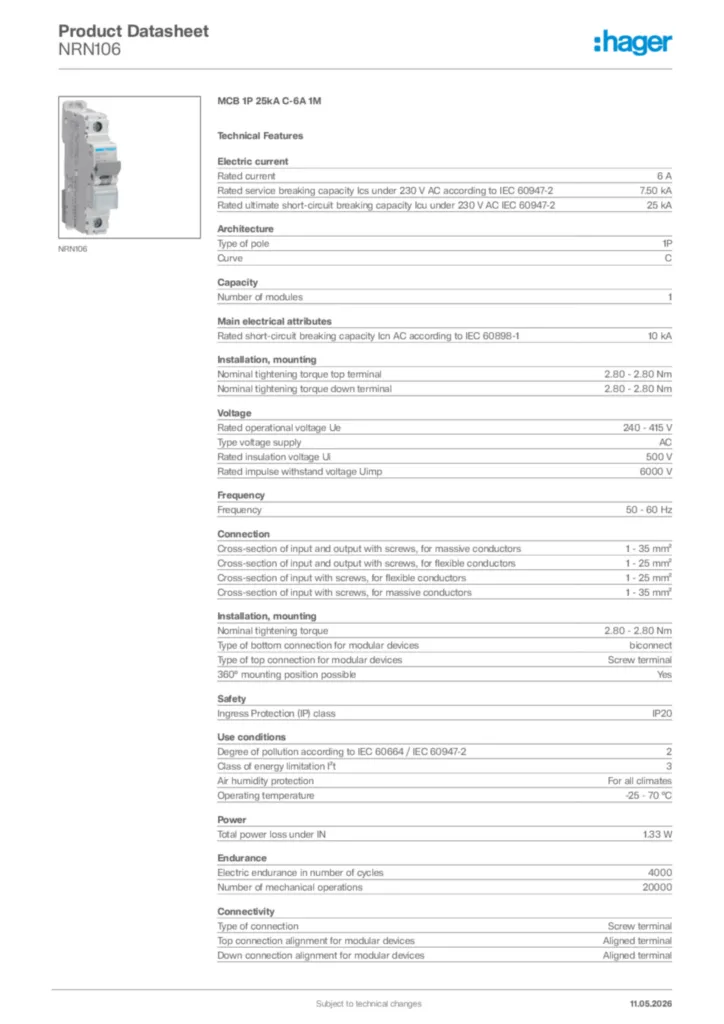

Download the data sheet

Technical properties

Rated current IN

6 A
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

7.50 kA
Rated ultimate short-circuit breaking capacity Icu AC IEC 60947-2

25 kA

Type of pole

1P
Curve

C

Number of modules

1

Nominal tightening torque top terminal

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.80 - 2.80 Nm
Nominal tightening torque

2.80 - 2.80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated operational voltage Ue

240 - 415 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²

Ingress Protection (IP) class

IP20
Grid distance

60 mm

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Air humidity protection

For all climates
Operating temperature

-25 - 70 °C

Power dissipation at IN

1.33 W

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

83 mm
Width

17.50 mm
Depth

70 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
