The Hager MCB 1P 25kA B-25A 1M safeguards circuits against overloads and short circuits. Rated 25 A with B-curve for lighting/resistive loads, it offers 25 kA Icu (Ics 7.5 kA @230 V) and 10 kA Icn. Suits 240-415 V AC, 50-60 Hz. Compact 1 module (17.5 mm), IP20, 6 kV impulse. Screw/biconnect terminals 1-35 mm², 360° mounting. Durable (20,000 mech/4,000 elec). Ideal for high fault level boards.

EAN

3250614645488

Packaging

1 Piece

MCB 1P 16A 25kA Curve B 1 Module NQN125

Phase out product: please contact your electrical wholesaler for availability

Technical properties
Environmental value
Documentations

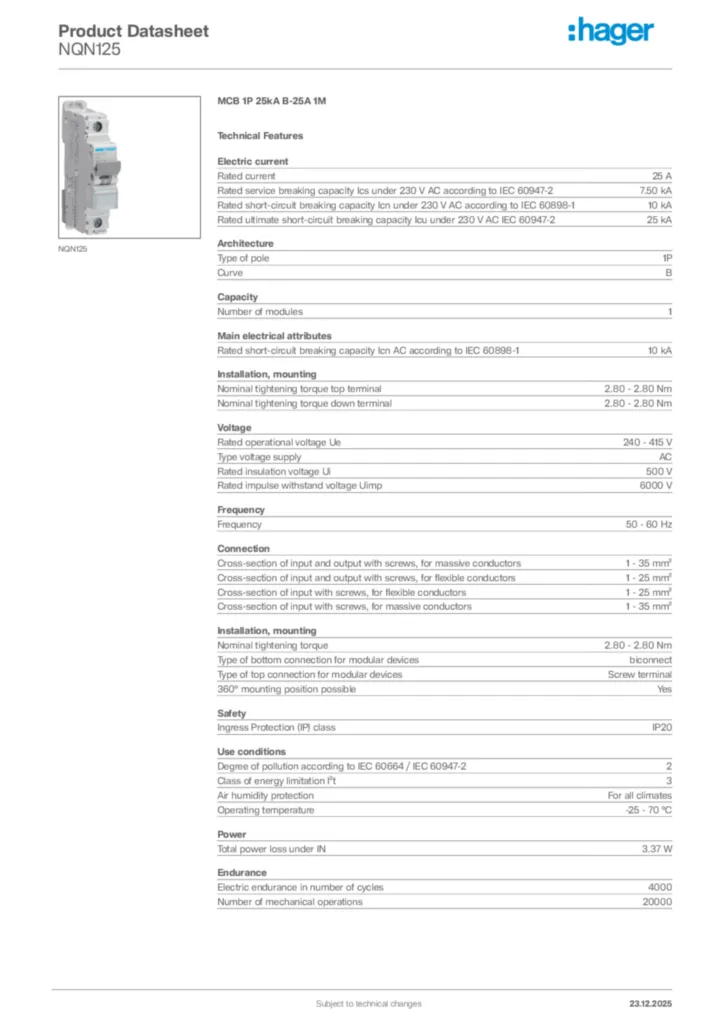

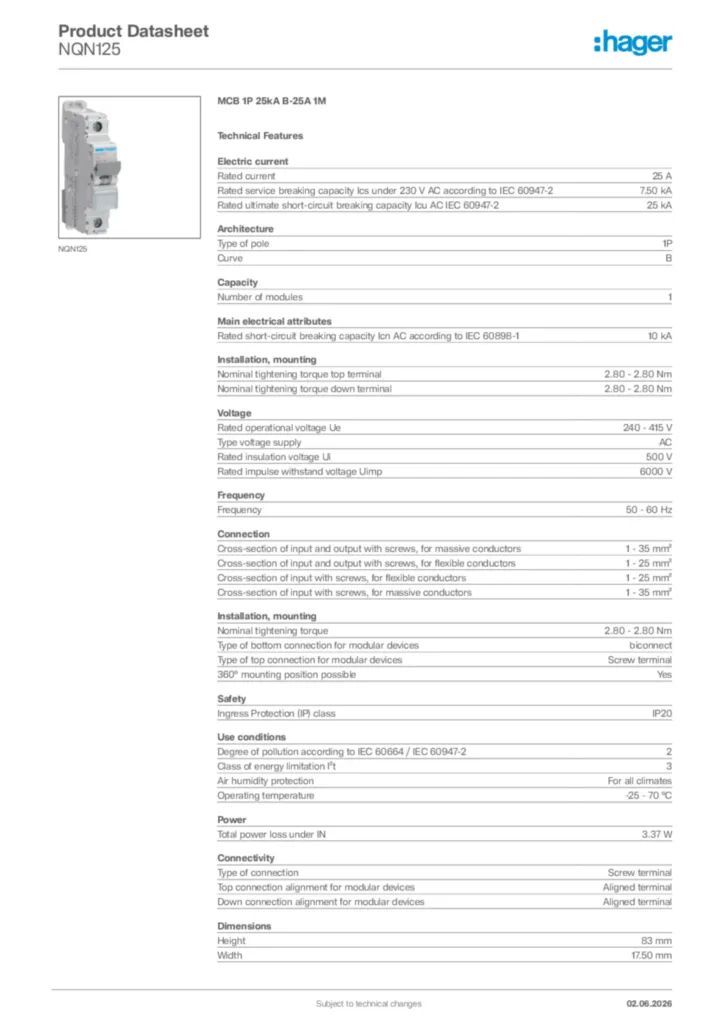

Download the data sheet

Technical properties

Rated current IN

25 A
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

7.50 kA
Rated ultimate short-circuit breaking capacity Icu AC IEC 60947-2

25 kA
Rated current at -15°C

31.35 A
Rated current at -10°C

30.64 A
Rated current at -5°C

29.94 A
Rated current at 0°C

29.23 A
Rated current at 5°C

28.53 A
Rated current at 10°C

27.82 A
Rated current at 15°C

27.12 A
Rated current at 20°C

26.41 A
Rated current at 25°C

25.71 A
Rated current at 30°C

25 A
Rated current at 35°C

24.29 A
Rated current at 40°C

23.59 A
Rated current at 45°C

22.88 A
Rated current at 50°C

22.18 A
Rated current at 55°C

21.47 A
Rated current at 60°C

20.77 A
Rated current at 65°C

20.06 A
Rated current at 70°C

19.36 A
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-2

25 kA

Type of pole

1P
Curve

B

Number of modules

1

Nominal tightening torque top terminal

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.80 - 2.80 Nm
Nominal tightening torque

2.80 - 2.80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated operational voltage Ue

230 - 240 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²

Ingress Protection (IP) class

IP20

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Air humidity protection

For all climates
Operating temperature

-25 - 70 °C

Power dissipation at IN

3.37 W

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

83 mm
Width

17.50 mm
Depth

70 mm
