Hager MCB 1P 25kA B-10A 1M miniature circuit breaker safeguards single-phase circuits against overloads and short circuits. 10 A B-curve suits lighting and general loads; 25 kA Icu (Ics 7.5 kA), 10 kA Icn for high fault levels. 240-415 V AC, 6 kV Uimp, 1 module (17.5 mm). Screw/biconnect 1-35 mm², 2.8 Nm. IP20, -25…70°C, 360° mounting; 20k mechanical/4k electrical cycles. Ideal for residential and commercial panels.

EAN

3250614645440

Packaging

1 Piece

Miniature circuit breaker 1P 6A 25kA Curve B 1 Module NQN110

Phase out product: please contact your electrical wholesaler for availability

Technical properties
Environmental value
Documentations

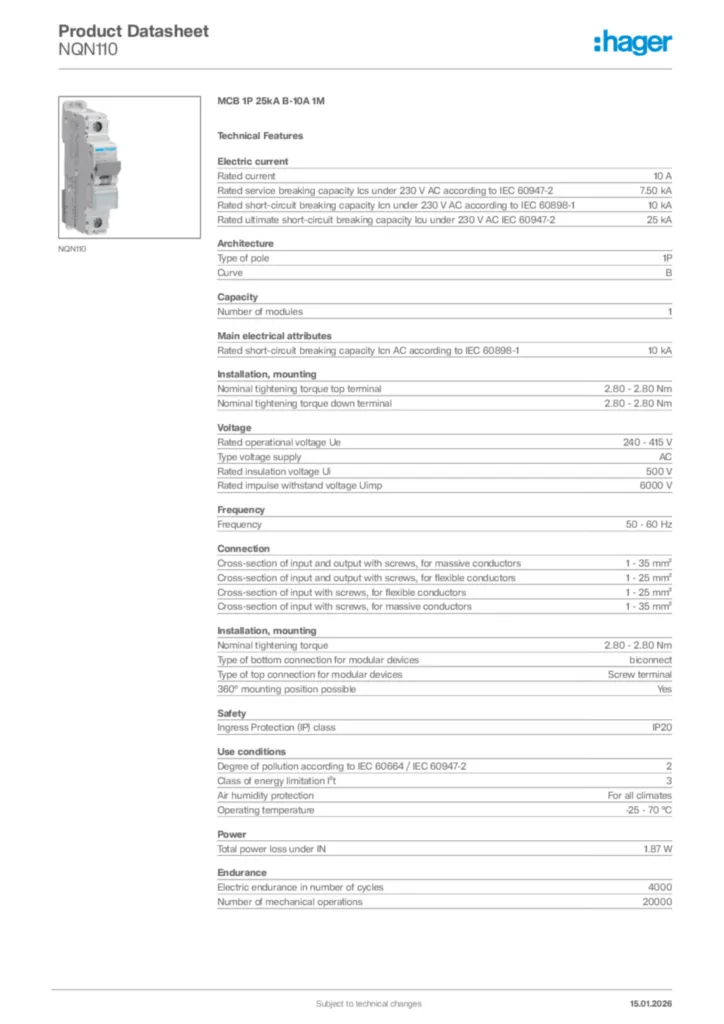

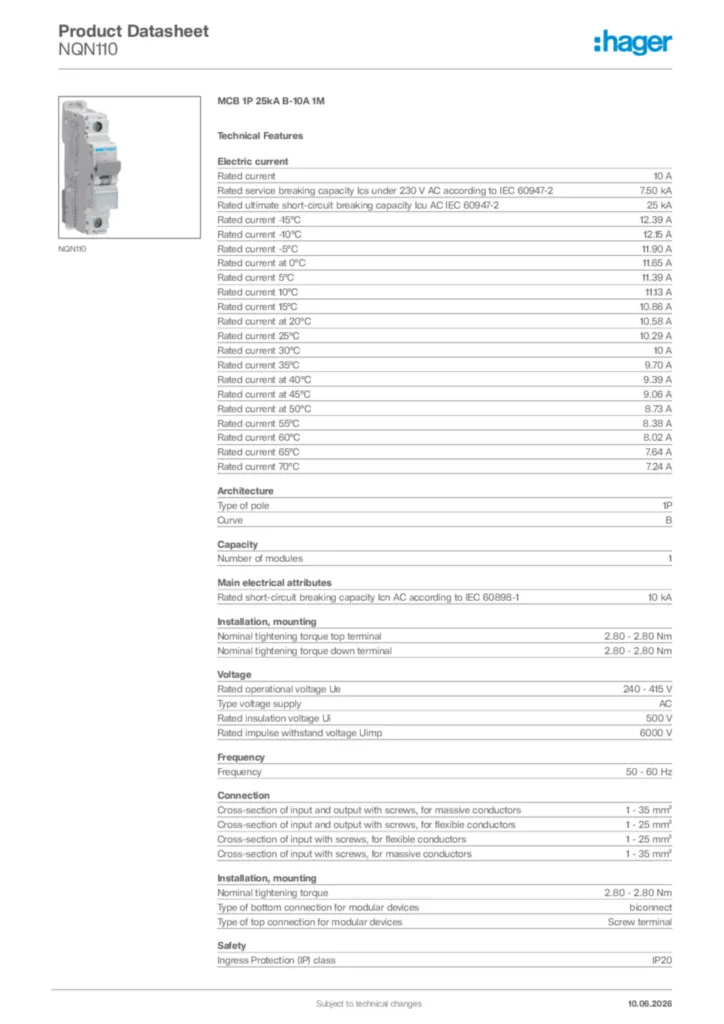

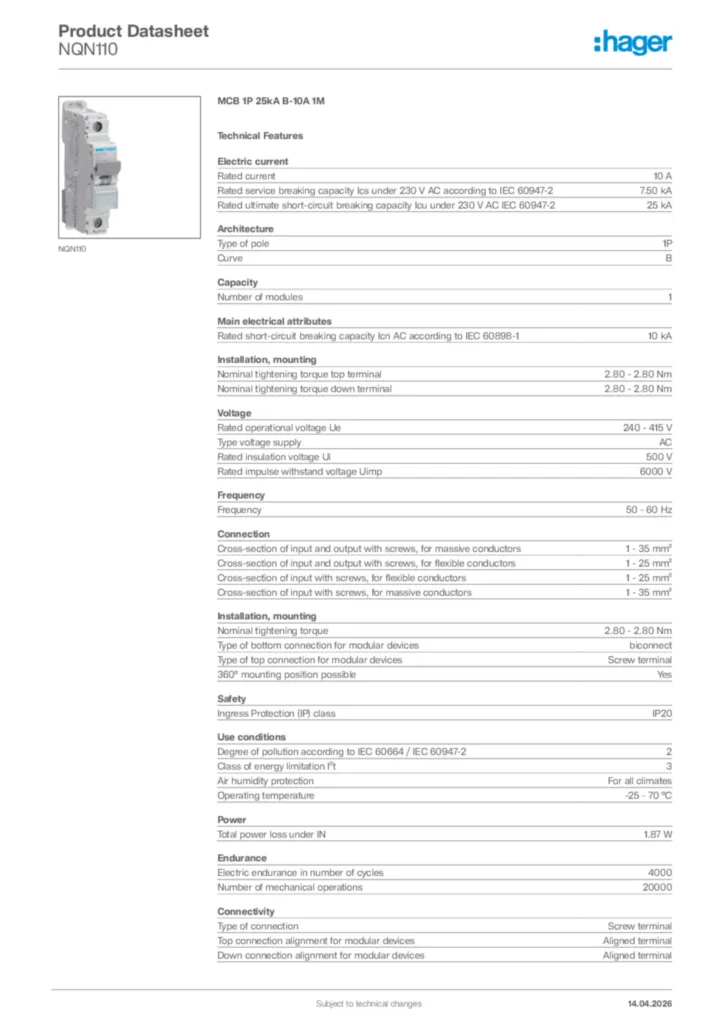

Download the data sheet

Technical properties

Rated current IN

10 A
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

7.50 kA
Rated ultimate short-circuit breaking capacity Icu AC IEC 60947-2

25 kA
Rated current at -15°C

12.42 A
Rated current at -10°C

12.15 A
Rated current at -5°C

11.88 A
Rated current at 0°C

11.61 A
Rated current at 5°C

11.34 A
Rated current at 10°C

11.08 A
Rated current at 15°C

10.81 A
Rated current at 20°C

10.54 A
Rated current at 25°C

10.27 A
Rated current at 30°C

10 A
Rated current at 35°C

9.68 A
Rated current at 40°C

9.37 A
Rated current at 45°C

9.05 A
Rated current at 50°C

8.73 A
Rated current at 55°C

8.41 A
Rated current at 60°C

8.1 A
Rated current at 65°C

7.78 A
Rated current at 70°C

7.46 A
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-2

25 kA

Type of pole

1P
Curve

B

Number of modules

1

Nominal tightening torque top terminal

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.80 - 2.80 Nm
Nominal tightening torque

2.80 - 2.80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated operational voltage Ue

230 - 240 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²

Ingress Protection (IP) class

IP20

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Air humidity protection

For all climates
Operating temperature

-25 - 70 °C

Power dissipation at IN

1.87 W

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

83 mm
Width

17.50 mm
Depth

70 mm
