The Hager MCB 1P C-63A 1M delivers robust overload and short-circuit protection for demanding single-phase circuits. C curve, 63 A, 10 kA Icn (IEC 60898-1) and 15 kA Icu (IEC 60947-2). For 230/400 V AC, 50-60 Hz. Compact 1 module, IP20. Screw/biconnect terminals 1-35 mm², Ui 500 V, Uimp 6 kV. 360° mounting, 20k mechanical/4k electrical cycles. Ideal for sub-mains, HVAC, and light commercial feeders.

EAN

3250614615580

Packaging

Miniature circuit breakers (MCB and MCB Multipolar)

Miniature Circuit Breaker 1P 40A C Curve 10kA Icn, 15kA Icu, 1 Module NCN163A

Accessories
Technical properties
Environmental value
Documentations
More products

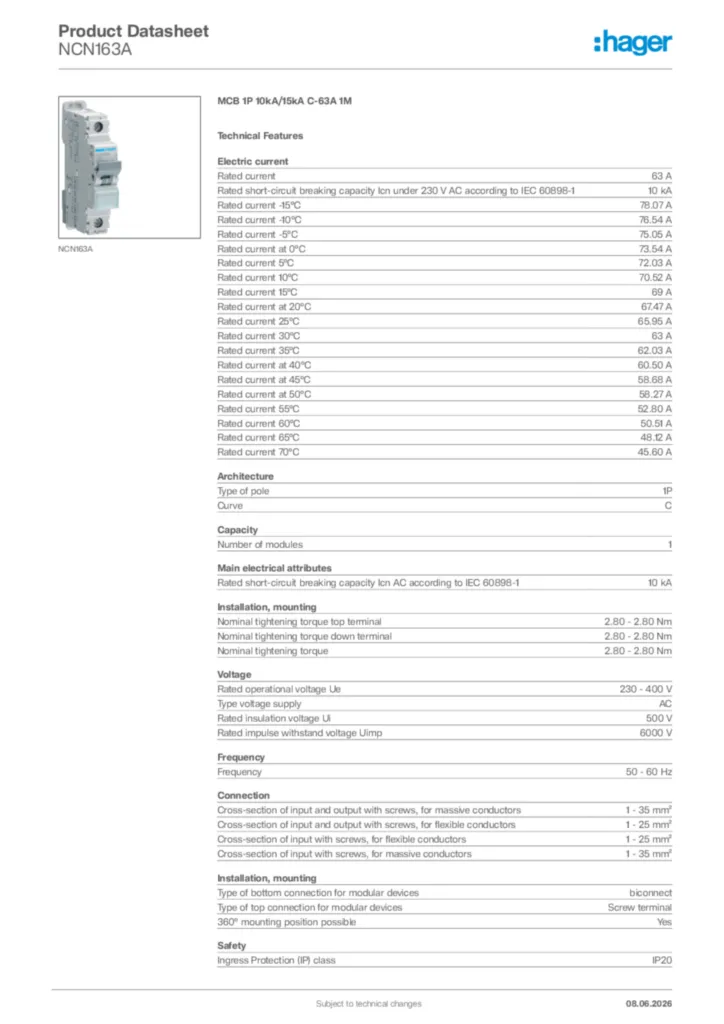

Download the data sheet

Complete your system

Terminal cover 1 products available
Modular phase busbar 2 products available

Technical properties

Rated current

63 A
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

10 kA
Rated current -15°C

78.07 A
Rated current -10°C

76.54 A
Rated current -5°C

75.05 A
Rated current at 0°C

73.54 A
Rated current 5°C

72.03 A
Rated current 10°C

70.52 A
Rated current 15°C

69 A
Rated current at 20°C

67.47 A
Rated current 25°C

65.95 A
Rated current 30°C

63 A
Rated current 35°C

62.03 A
Rated current at 40°C

60.50 A
Rated current at 45°C

58.68 A
Rated current at 50°C

58.27 A
Rated current 55°C

52.80 A
Rated current 60°C

50.51 A
Rated current 65°C

48.12 A
Rated current 70°C

45.60 A
Rated service breaking capacity Ics AC according to IEC 60898-1

7.50 kA

Type of pole

1P
Curve

C

Number of modules

1

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

10 kA

Nominal tightening torque top terminal

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.80 - 2.80 Nm
Nominal tightening torque

2.80 - 2.80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated operational voltage Ue

230 - 400 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²

Ingress Protection (IP) class

IP20
Grid distance

60 mm

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Operating temperature

-25 - 70 °C

Total power loss under IN

5.73 W

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

83 mm
Width

17.50 mm
Depth

70 mm
