The Hager MCB 2P 6kA C-10A 2M miniature circuit breaker protects circuits against overloads and short circuits in residential and light commercial use. Two-pole isolation up to 400 V AC with 6 kA Icn and C-curve suits inductive/start-up loads. Compact 2-mod (35 mm), screw terminals with biconnect for 1-35 mm², IP20, 50/60 Hz, Uimp 4 kV, -25…70°C, 360° mounting for easy installation.

EAN

3250614517112

Packaging

Miniature circuit breakers (MCB and MCB Multipolar)

MCB 1P 40A Curve C 6kA 1 Module 230-400V AC MU210A

Technical properties
Environmental value
Documentations
More products

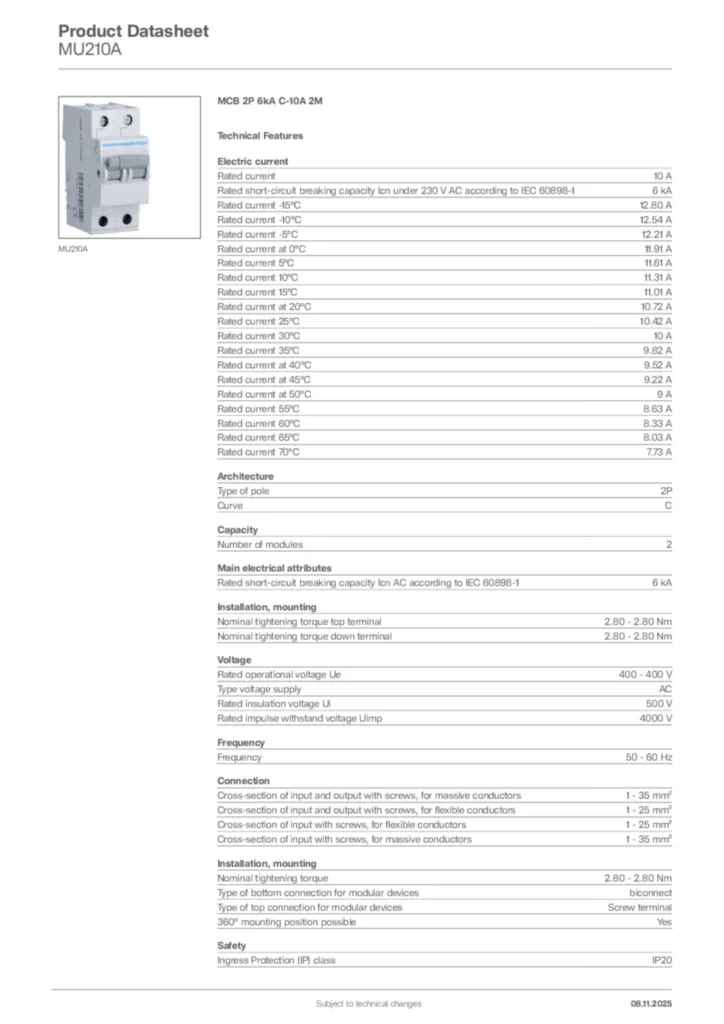

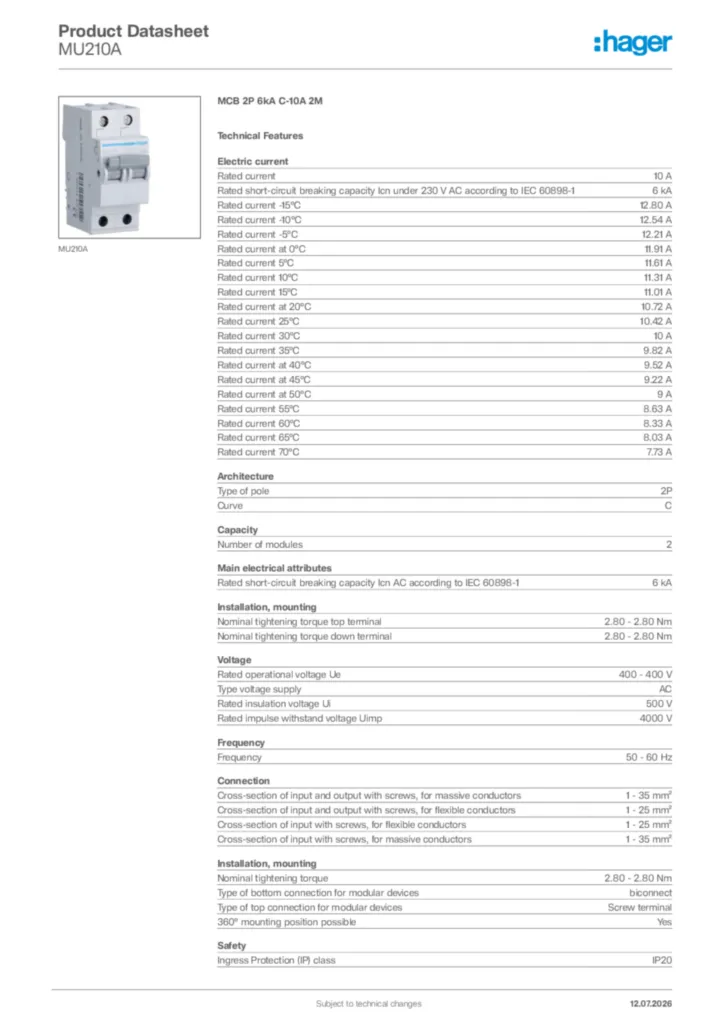

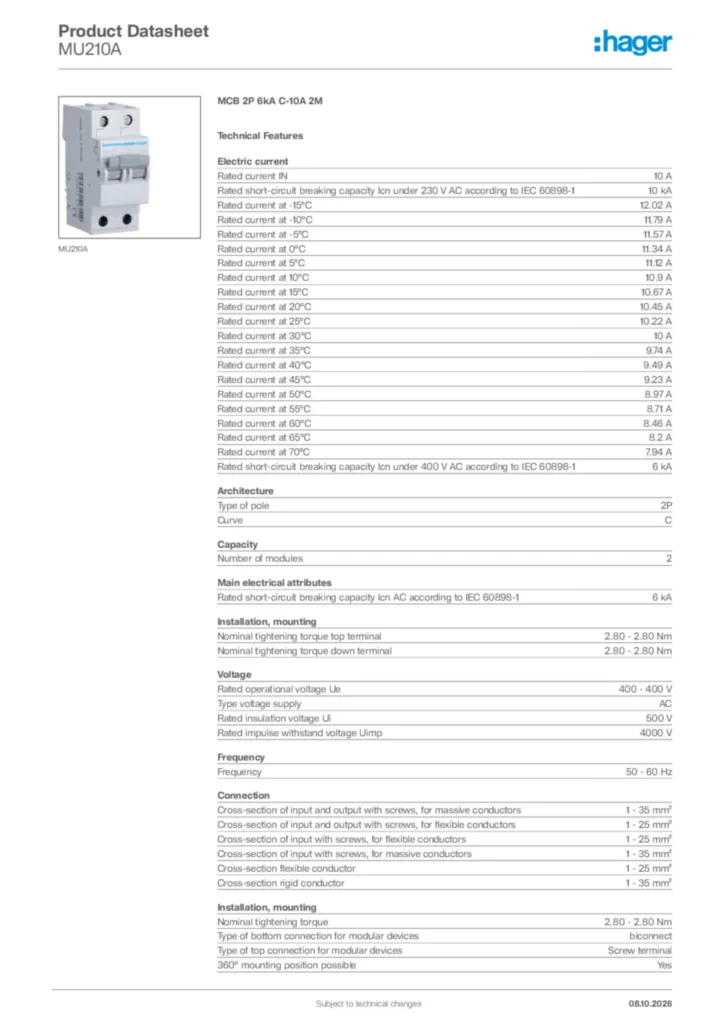

Download the data sheet

Technical properties

Rated current IN

10 A
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

10 kA
Rated current at -15°C

12.02 A
Rated current at -10°C

11.79 A
Rated current at -5°C

11.57 A
Rated current at 0°C

11.34 A
Rated current at 5°C

11.12 A
Rated current at 10°C

10.9 A
Rated current at 15°C

10.67 A
Rated current at 20°C

10.45 A
Rated current at 25°C

10.22 A
Rated current at 30°C

10 A
Rated current at 35°C

9.74 A
Rated current at 40°C

9.49 A
Rated current at 45°C

9.23 A
Rated current at 50°C

8.97 A
Rated current at 55°C

8.71 A
Rated current at 60°C

8.46 A
Rated current at 65°C

8.2 A
Rated current at 70°C

7.94 A
Rated short-circuit breaking capacity Icn under 400 V AC according to IEC 60898-1

6 kA

Type of pole

2P
Curve

C

Number of modules

2

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Nominal tightening torque top terminal

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.80 - 2.80 Nm
Nominal tightening torque

2.80 - 2.80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated operational voltage Ue

400 - 400 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²
Cross-section flexible conductor

1 - 25 mm²
Cross-section rigid conductor

1 - 35 mm²

Ingress Protection (IP) class

IP20
Grid distance

35 mm

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Air humidity protection

For all climates
Operating temperature

-25 - 70 °C

Power dissipation at IN

3.80 W

Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal
Type of connection

Screw terminal

Height

83 mm
Width

35 mm
Depth

70 mm
