The Hager MCB 1P 6kA B-16A 1M miniature circuit breaker protects circuits from overloads and short circuits. Single-pole, 16 A B-curve with 6 kA Icn per IEC 60898-1, for 230/400 V AC, 50-60 Hz. Compact 1-module width with screw terminals and biconnect bottom (1-35 mm² rigid, 1-25 mm² flexible), 360° mounting. Ui 500 V, Uimp 4 kV, IP20, I²t class 3. Ideal for residential and light commercial boards.

EAN

3250614507038

Packaging

MCB 1P 10A 6kA Curve B 230/400V 1 Module MT116A

Phase out product: please contact your electrical wholesaler for availability

Technical properties
Environmental value
Documentations

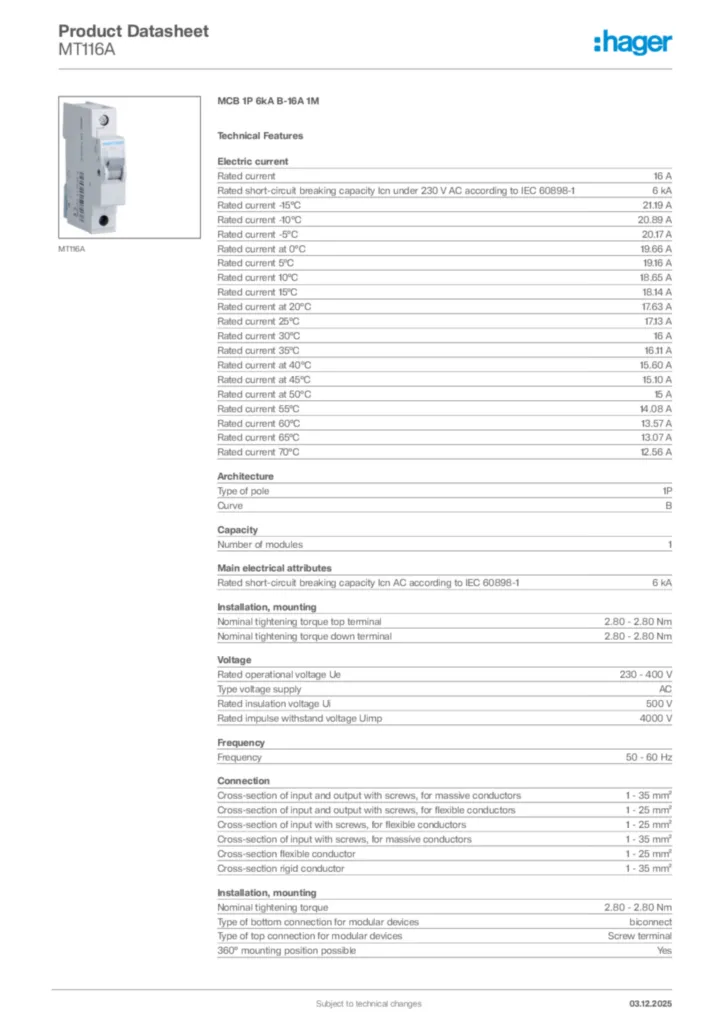

Technical properties

Rated current IN

16 A
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

6 kA
Rated current at -15°C

19.36 A
Rated current at -10°C

18.99 A
Rated current at -5°C

18.61 A
Rated current at 0°C

18.24 A
Rated current at 5°C

17.87 A
Rated current at 10°C

17.49 A
Rated current at 15°C

17.12 A
Rated current at 20°C

16.75 A
Rated current at 25°C

16.37 A
Rated current at 30°C

16 A
Rated current at 35°C

15.57 A
Rated current at 40°C

15.14 A
Rated current at 45°C

14.71 A
Rated current at 50°C

14.28 A
Rated current at 55°C

13.84 A
Rated current at 60°C

13.41 A
Rated current at 65°C

12.98 A
Rated current at 70°C

12.55 A

Type of pole

1P
Curve

B

Number of modules

1

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Nominal tightening torque top terminal

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.80 - 2.80 Nm
Nominal tightening torque

2.80 - 2.80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated operational voltage Ue

230 - 400 V
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²
Cross-section flexible conductor

1 - 25 mm²
Cross-section rigid conductor

1 - 35 mm²

Grid distance

35 mm

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Air humidity protection

For all climates
Operating temperature

-25 - 70 °C

Power dissipation at IN

2.40 W

Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal
Type of connection

Screw terminal

Height

83 mm
Width

17.50 mm
Depth

68 mm
