The Hager MCB 1P 6kA B-10A 1M safeguards circuits against overloads and short circuits. With 10A B-curve tripping and 6kA Icn to IEC 60898-1, it suits residential and light commercial 230-400 V AC systems. Compact 1-module (17.5 mm), 360° mountable, screw/biconnect terminals for 1-35 mm², IP20, Ui 500 V, Uimp 4 kV, -25 to 70 °C. Reliable, quick installation and panel space saving.

EAN

3250614507014

Packaging

Enclosed fuse switch 3P 63A A4 fuse Long rotary handle IP41 Ui 800V MT110A

Phase out product: please contact your electrical wholesaler for availability

Technical properties
Environmental value
Documentations

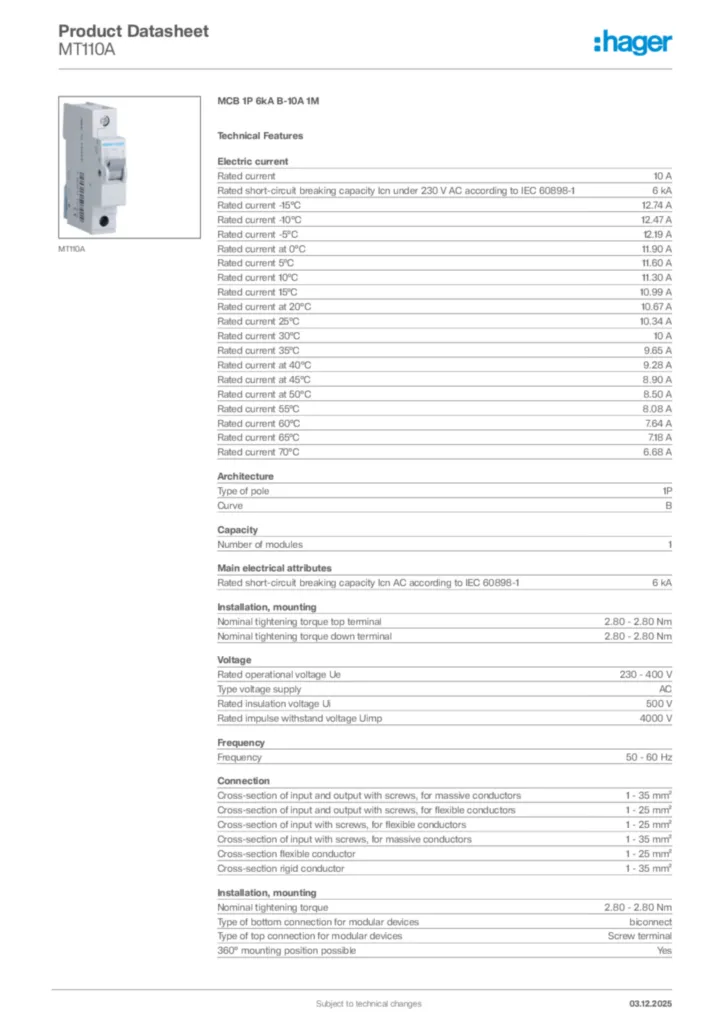

Technical properties

Rated current IN

10 A
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

6 kA
Rated current at -15°C

12 A
Rated current at -10°C

11.80 A
Rated current at -5°C

11.60 A
Rated current at 0°C

11.40 A
Rated current at 5°C

11.20 A
Rated current at 10°C

10.90 A
Rated current at 15°C

10.70 A
Rated current at 20°C

10.50 A
Rated current at 25°C

10.20 A
Rated current at 30°C

10 A
Rated current at 35°C

9.80 A
Rated current at 40°C

9.50 A
Rated current at 45°C

9.20 A
Rated current at 50°C

9 A
Rated current at 55°C

8.70 A
Rated current at 60°C

8.40 A
Rated current at 65°C

8.20 A
Rated current at 70°C

7.90 A

Type of pole

1P
Curve

B

Number of modules

1

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Nominal tightening torque top terminal

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.80 - 2.80 Nm
Nominal tightening torque

2.80 - 2.80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated operational voltage Ue

230 - 400 V
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²
Cross-section flexible conductor

1 - 25 mm²
Cross-section rigid conductor

1 - 35 mm²

Grid distance

35 mm

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Air humidity protection

For all climates
Operating temperature

-25 - 70 °C

Power dissipation at IN

1.80 W

Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal
Type of connection

Screw terminal

Height

83 mm
Width

17.50 mm
Depth

68 mm
