The Hager halogen‑free endcap for LF/LFH trunking 40x57 mm provides a neat, safe termination for cable ducts. Made of durable ABS in stone grey (RAL 7030), it offers IK07 impact resistance and operates from -5 to 60 °C. Fast installation via screw or snap‑on mounting. Ideal for residential and commercial applications, ensuring clean aesthetics and reduced smoke/halogen emissions in case of fire.

EAN

4012740021524

Packaging

1 Piece

Flush-mounted KNX RF radio input, 2-channel, battery powered, bidirectional LF4006067030

Technical properties
Environmental value
Documentations

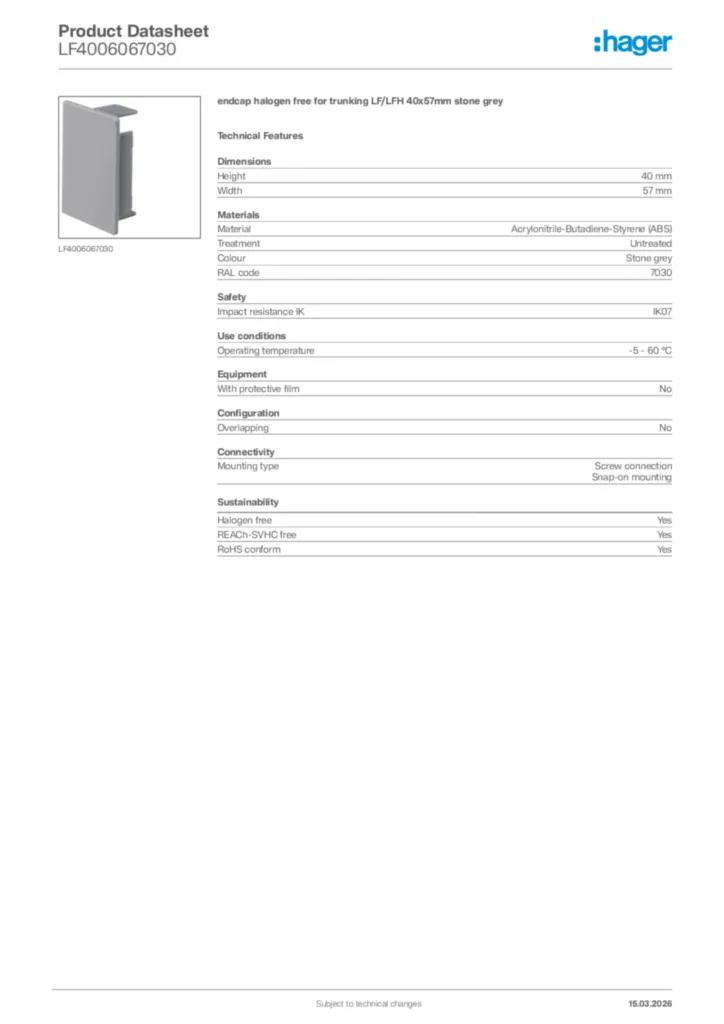

Download the data sheet

Technical properties

Height

40 mm
Width

57 mm

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Stone grey
RAL code

7030

Impact resistance IK

IK07

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

No
With antibacterial treatment

No

Mounting type

Screw connection, Snap-on mounting

Suitable for functional integrity according to DIN4102-12

No

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
