    • L22619010
    EAN
    4012740312240
    Packaging
    1 Piece
    • Device supports for skirting ducts

    L 2261 White 9010 SL-Socket plinth L22619010

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    L 2261 White 9010 SL-Socket plinth

    L22619010

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Accessories
    • Pre-equipped with
      Empty
    Dimen­sions
    • Height
      150 mm
    • Width
      50 mm
    • Depth
      50 mm
    • Length
      110 mm
    • Number of units
      1
    Equip­ment
    • Empty socket box
      Yes
    Elec­tric current
    • Rated current
      16 A
    Voltage
    • Nominal voltage
      230 - 230 V
    Connec­tion
    • Cable cross-sec­tion
      120-290 mm²
    Mater­ials
    • Material
      Acryloni­trile-Butadiene-Styrene (ABS)
    • Colour
      Pure white
    • RAL code
      9010
    Safety
    • Ingress Protec­tion (IP) class
      IP40
    • Impact resist­ance IK
      IK07
    Use condi­tions
    • Oper­ating temper­ature
      -5 - 65 °C
    Install­a­tion, mounting
    • Mount­ing-/­Con­nec­tion Posi­tion
      Hori­zontal
    Compat­ib­ility
    • Device install­a­tion compat­ible format
      Standard 60 mm

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    Halogen free Yes

    Certifications and documents

    PEP - Mini-trunking / Skirting trunking / Corner trunking - series ATA - SL - EK (English)
    PDF
    399,87 kB
    REACH declaration L22619010
    PDF
    RoHS report L22619010
    PDF

    Downloads

    • Image L22619010 | Hager Africa

      Product Image L22619010

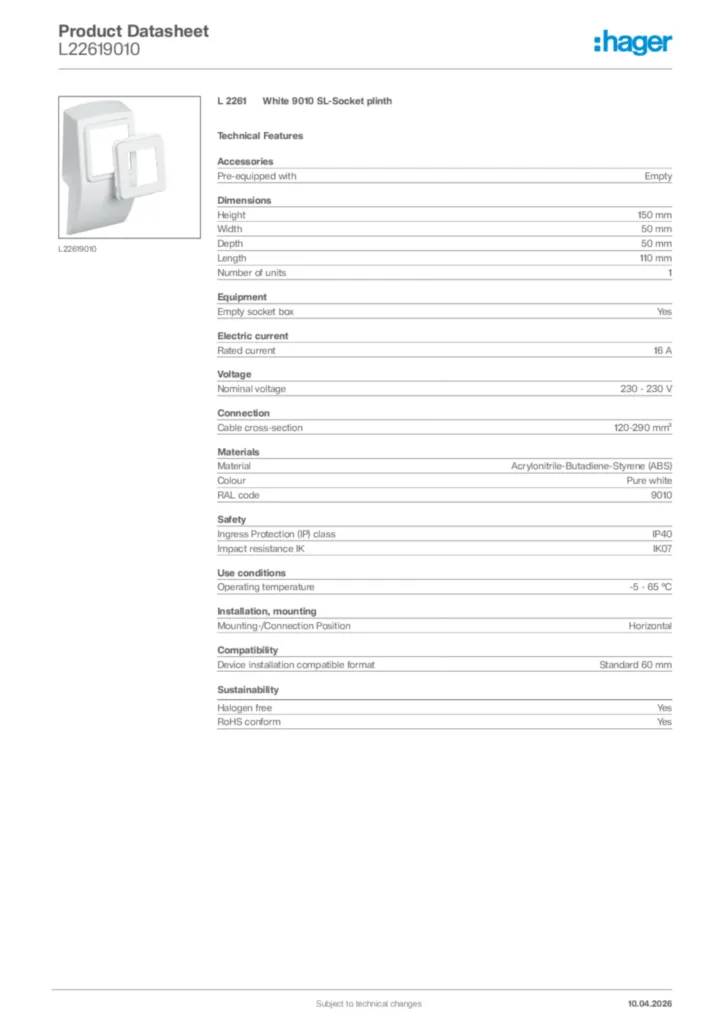

    • Product datasheet

      Image Hager Product data sheet L22619010 | Hager Africa

      Hager Product data sheet L22619010

      L 2261 White 9010 SL-Socket plinth

      PDF

    • Declaration of conformity

      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity International 2017-01-13

      PDF
      21,73 kB
      Image EU-Declaration SL T046A FR_EN 26072019 | Hager Africa

      EU-Declaration SL T046A FR_EN 26072019

      Declaration of conformity International 2019-08-23

      PDF
      48,54 kB
