Feed-through terminal-phase, 16mm², 1000V/71A, screw connection KXA16LH
EAN
3250613942090
Packaging
50
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Labelling material 3 products available -
Component terminal block 1 products available -
Cross-connector for terminal block 1 products available
Technical properties
Electric current
-
Rated current71 A
Dimensions
-
Height57.50 mm
-
Width12 mm
-
Depth59.30 mm
Installation, mounting
-
Mounting onDIN rail
Connection
-
Cross-section flexible conductor4 - 16 mm²
-
Cross-section rigid conductor1.5 - 10 mm²
Materials
-
ColourGrey
-
MaterialPolyamide (PA)
Connectivity
-
Type of connectionScrew terminal
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

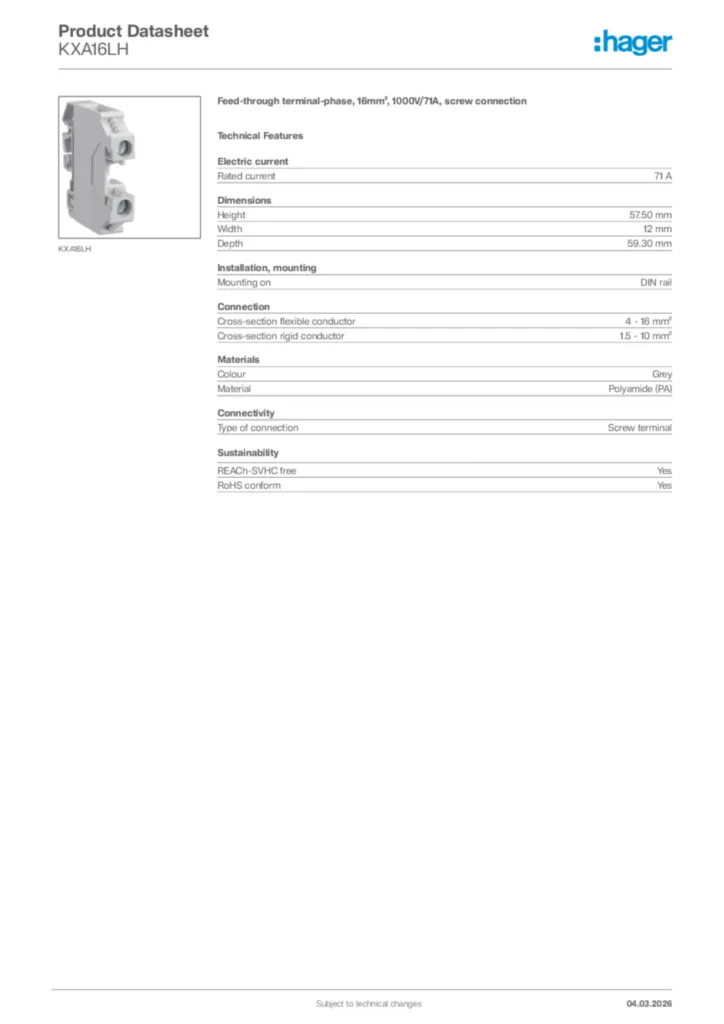

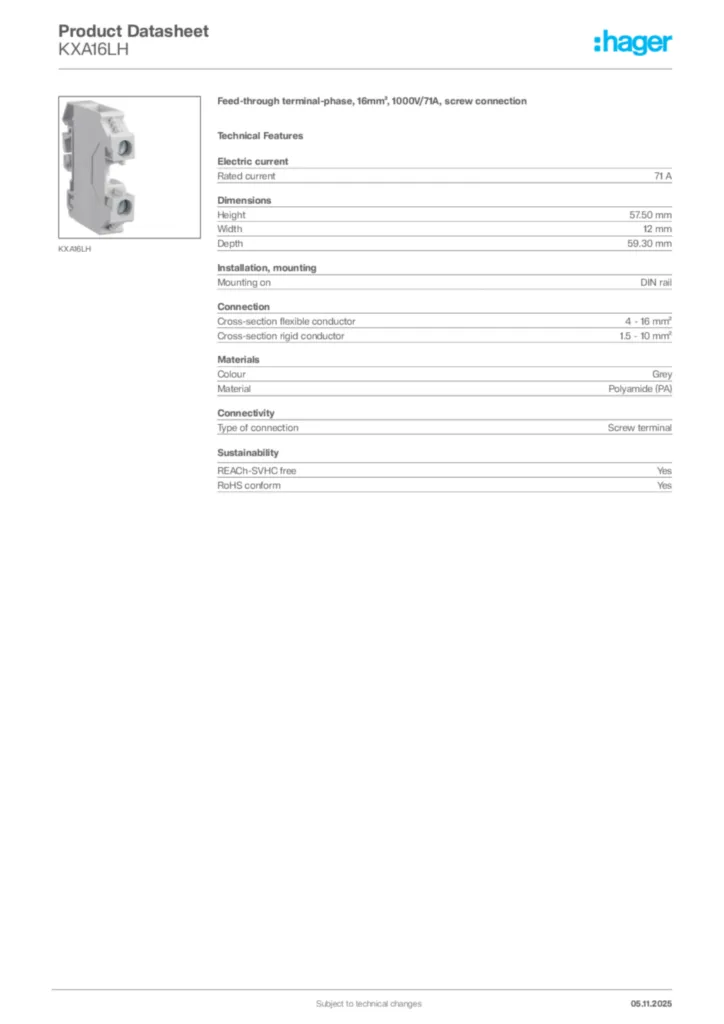

Product datasheet
undefined
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2022-08-29
PDF194,57 kB
Declaration
Declaration of conformity International 2022-11-16
PDF265,19 kB
