The Hager external box for 200-400 A load break switches and 125-250 A fuse combination switches provides safe, compact housing for isolation and distribution. Made of varnished steel (1.5 mm) in RAL 7035, it offers IK05 impact resistance and Class I insulation. Sized 200×375×200 mm, it installs by surface mounting for indoor use. Opaque door, no locks.
EAN
3250613415549
VPE
1 piece
External box for 630-800A LBS & 315-400A FCS, steel, IK05, surface mount JZA701
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
Technical characteristics
Dimensions
-
Height200 mm
-
Width375 mm
-
Depth200 mm
-
Thickness of sidewall1.5 mm
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
Installation, mounting
-
Mounting onSurface mounting
-
Suitable for outdoor usageNo
Materials
-
ColourLight grey
-
RAL code7035
-
TreatmentVarnished
-
MaterialSteel
Cover, door
-
Number of locks0
-
Door/cover is transparentNo
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

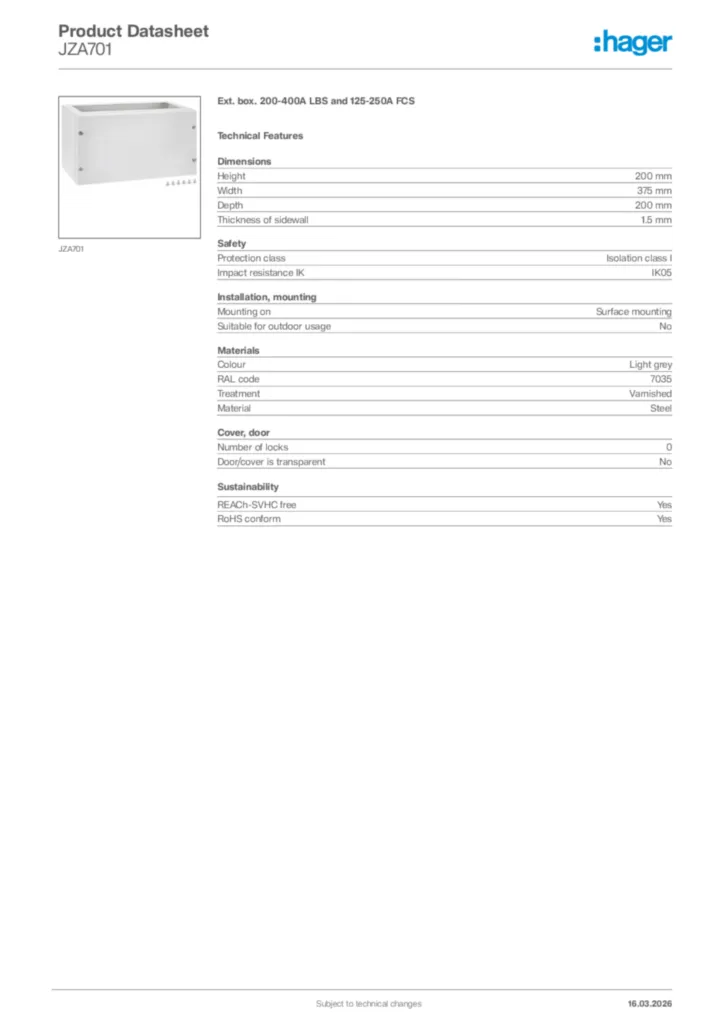

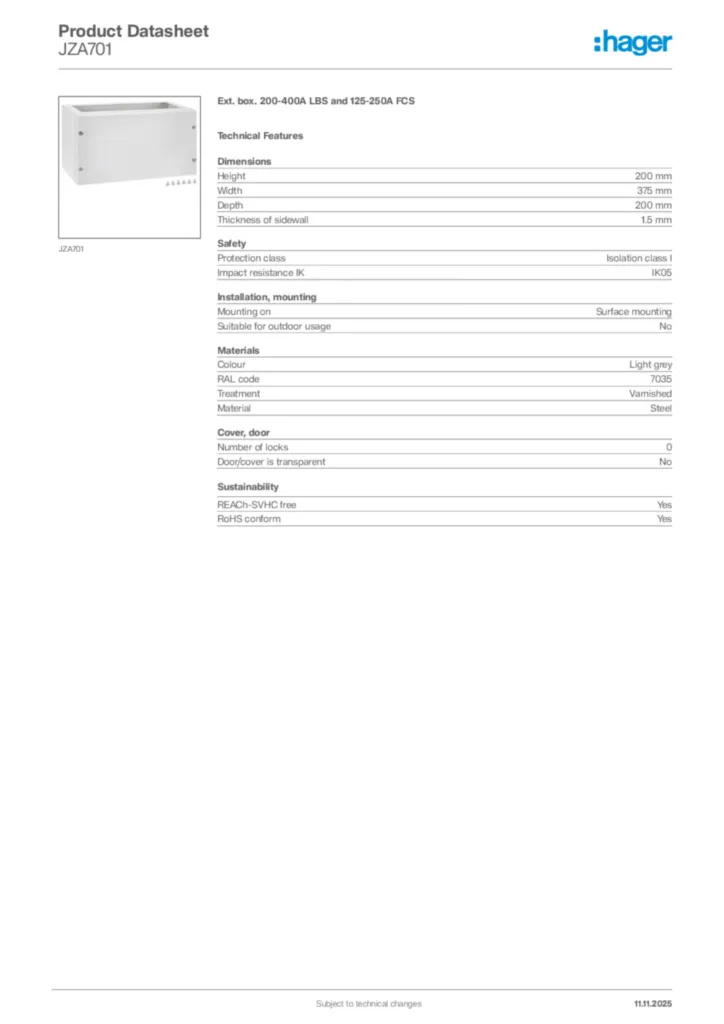

Hager Product data sheet JZA701
Ext. box. 200-400A LBS and 125-250A FCS
PDF -
ProductECDeclaration
CE 24_3615_04_24
Enclosed LBS Range
PDF256,65 kB
UKCA 24_3084_04_24
Enclosed LBS Range
PDF249,24 kB
