400A P'LBOARD 12WAY 125A OUTGOERS JN4B00012S1

EAN
3250611092261
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

400A P'LBOARD 12WAY 125A OUTGOERS

JN4B00012S1

  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Technical properties

Install­a­tion, mounting
  • Mounting on
    Surface mounting
Elec­tric current
  • Rated current
    400 A
Equip­ment
  • Has mounting plate
    No
Capa­city
  • Number of modules
    0
Dimen­sions
  • Height
    1230 mm
  • Width
    690 mm
  • Depth
    205 mm
Cover, door
  • Number of cabinet doors
    1
  • Door/­cover is trans­parent
    No
Mater­ials
  • Material
    Steel
  • RAL code
    9002
  • Colour
    Grey white
Safety
  • Protec­tion class
    Isol­a­tion class I
  • Impact resist­ance IK
    IK05
  • Ingress Protec­tion (IP) class
    IP41
  • Locking type
    Special tool, Without lock

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Certifications and documents

125A 4 Way TPN Board c/w SD & SPD
PDF
17,17 MB
Hager RoHS report JN4B00012S1
PDF

Downloads

  • Image JN4B00012S1 | Hager Africa

    Product Image JN4B00012S1

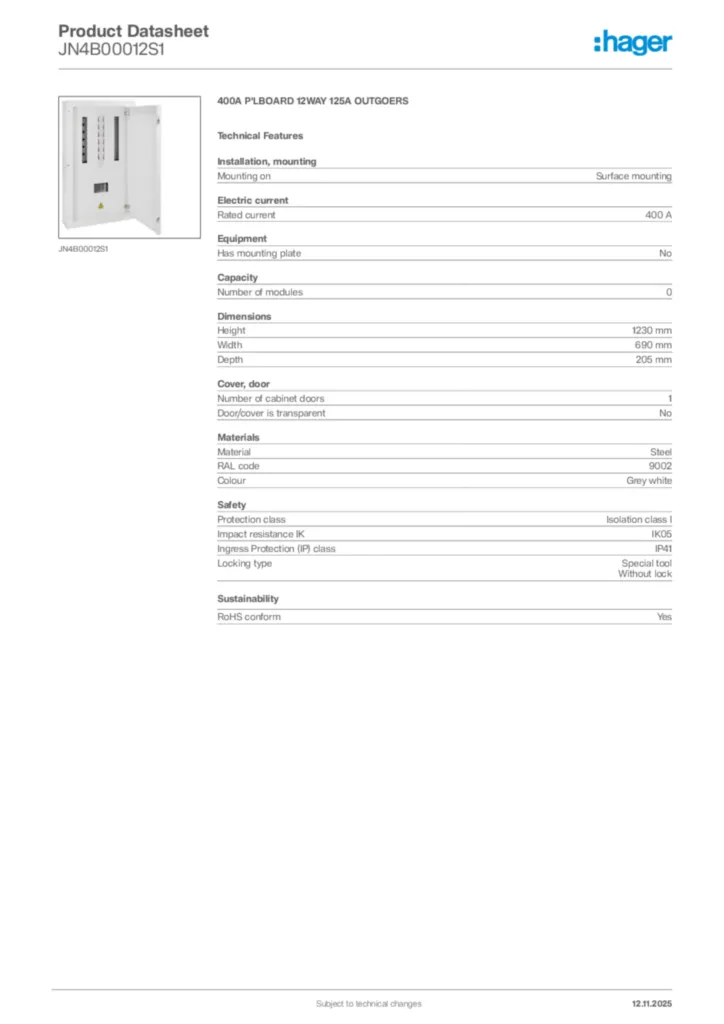

  • Product datasheet

    Image undefined | Hager Africa

    undefined

    PDF

  • Installation manual

    Image Installation manual en-GB 2024-02-16 | Hager Africa

    Installation manual en-GB 2024-02-16

    PDF
    33,80 MB
