The Hager TPSN enclosed fused combination switch provides safe isolation and short-circuit protection for distribution circuits. Rated 63 A with 4 poles and 800 V Ui, it suits three-phase applications. The long rotary handle enables reliable on-load switching, while the IP41 enclosure enhances safety. Accepts A4 fuses for coordinated protection. Compact at 400 x 375 mm, ideal for commercial and light industrial panels.
EAN
3250613415952
Packaging
1 Piece
Enclosed fuse switch TPN 160A Ui800V IP41 long rotary handle C3 JFE410U
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Electric current
-
Rated current IN63 A
Architecture
-
Number of poles4
-
Control/operation elementLong rotary handle
Voltage
-
Rated insulation voltage Ui800 V
Safety
-
Ingress Protection (IP) classIP41
Fuse
-
Fuse sizeA4
Dimensions
-
Height400 mm
-
Width375 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

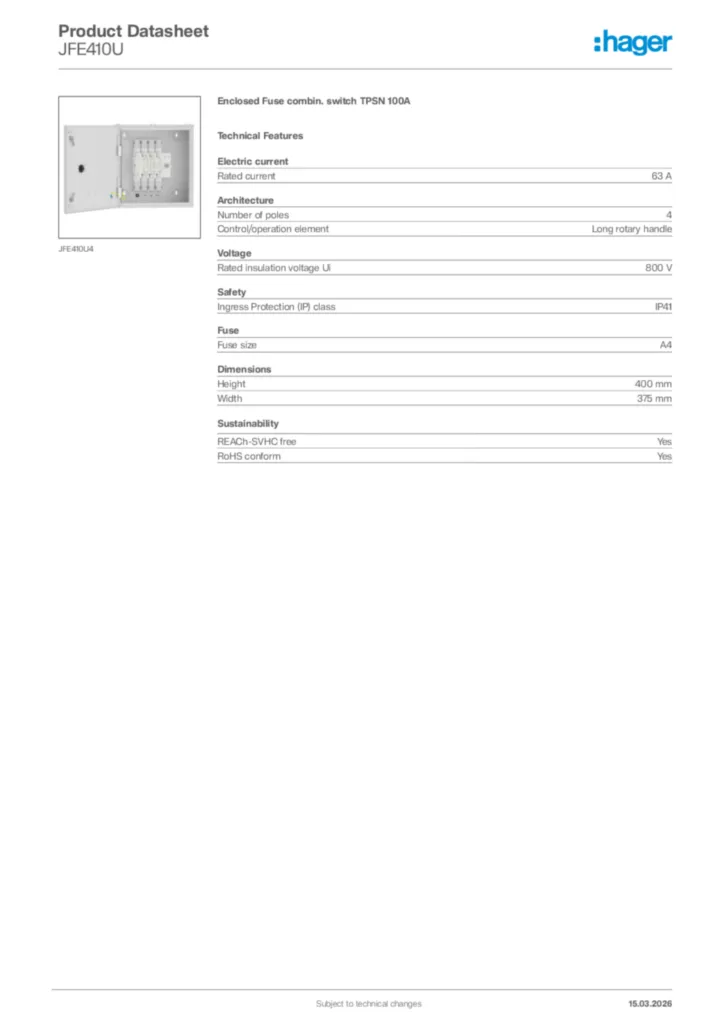

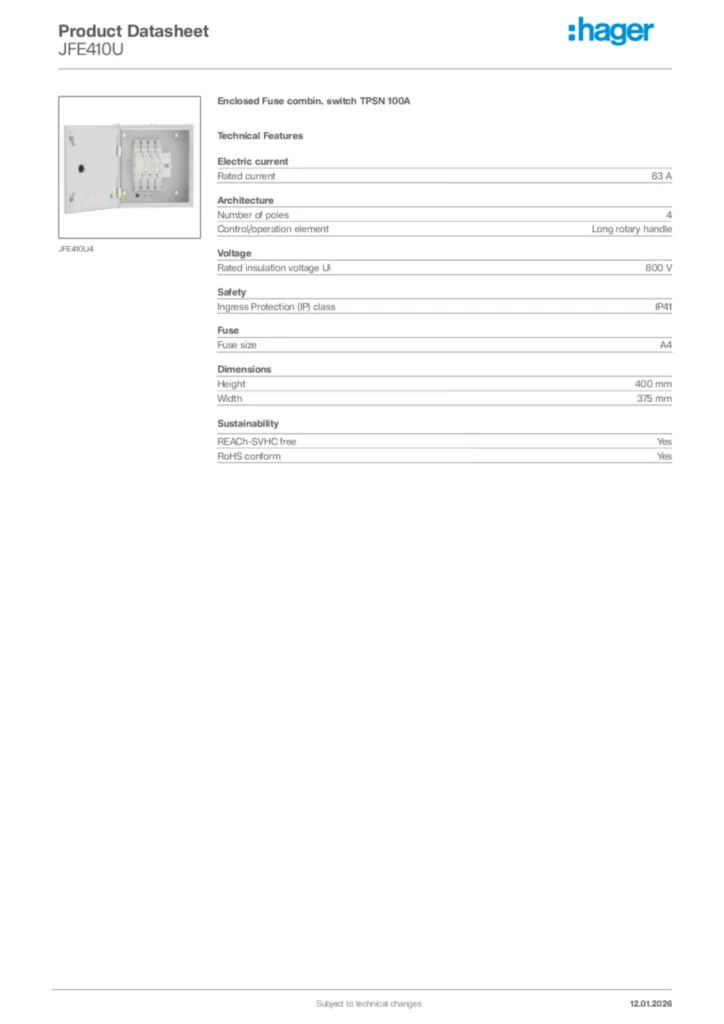

Product datasheet
Hager Product data sheet JFE410U
Enclosed Fuse combin. switch TPSN 100A
PDF -
Instruction manual
Instruction manual en-GB 2024-02-27
PDF17,50 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-02-07
PDF836,40 kB
Declaration of conformity en-US 2026-07-14
PDF284,32 kB
