    • Home
    • Catalog
    • High Power & Switching
    • Load breakers and switches
    • Load break switches with fuses
    • JFB302U
    EAN
    3250613415853
    Packaging
    1 Piece
    • Load break switches with fuses

    Enclosed Fuse combin. switch TPN 20A JFB302U

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Enclosed Fuse combin. switch TPN 20A

    JFB302U

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Elec­tric current
    • Rated current IN
      32 A
    Archi­tec­ture
    • Number of poles
      3
    • Control/­op­er­a­tion element
      Long rotary handle
    Voltage
    • Rated insu­la­tion voltage Ui
      800 V
    Safety
    • Ingress Protec­tion (IP) class
      IP41
    Fuse
    • Fuse size
      A1
    Dimen­sions
    • Height
      250 mm
    • Width
      200 mm

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    REACH declaration JFB302U
    PDF
    RoHS report JFB302U
    PDF

    Downloads

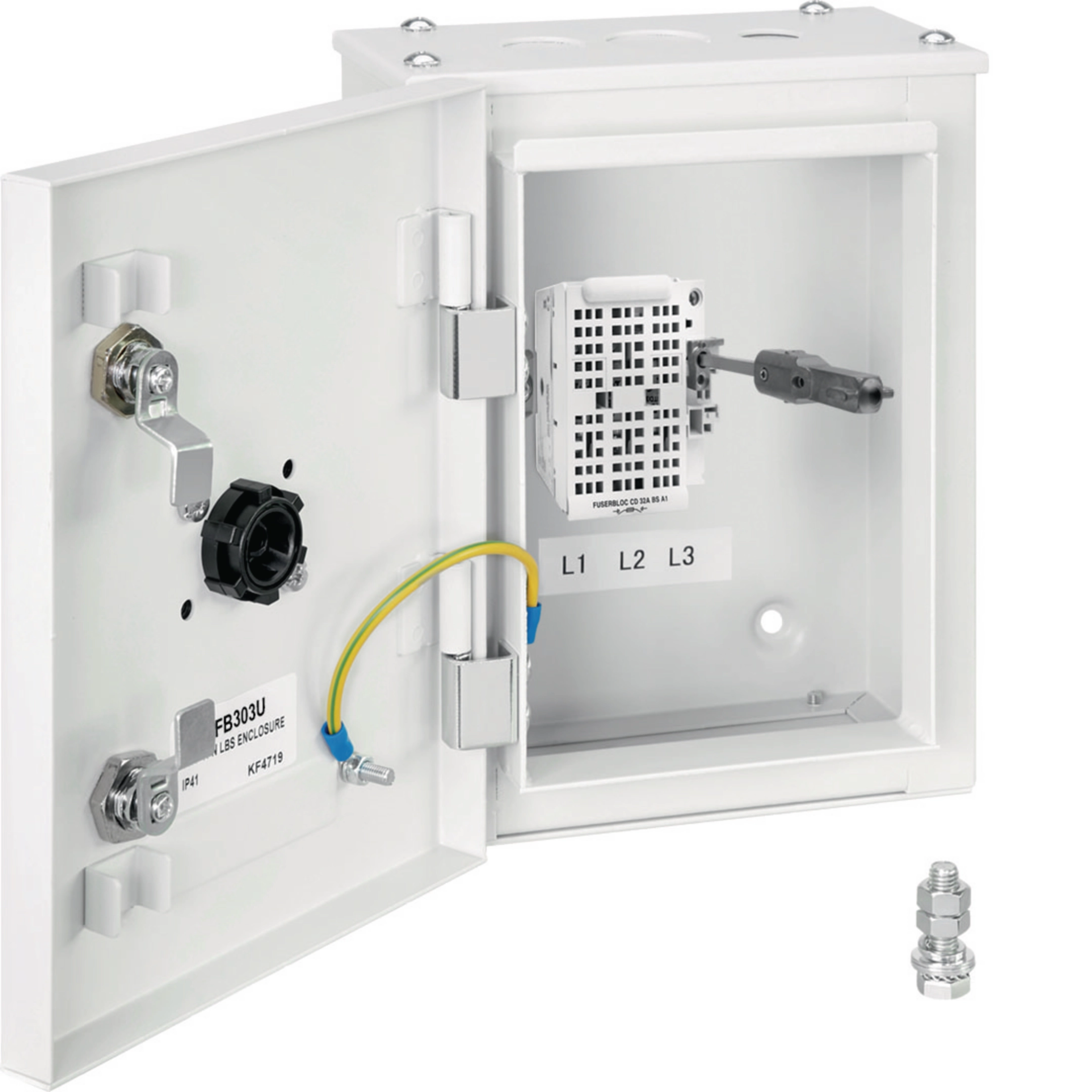

    • Image JFB302U | Hager Africa

      Product Image JFB302U

    • Product datasheet

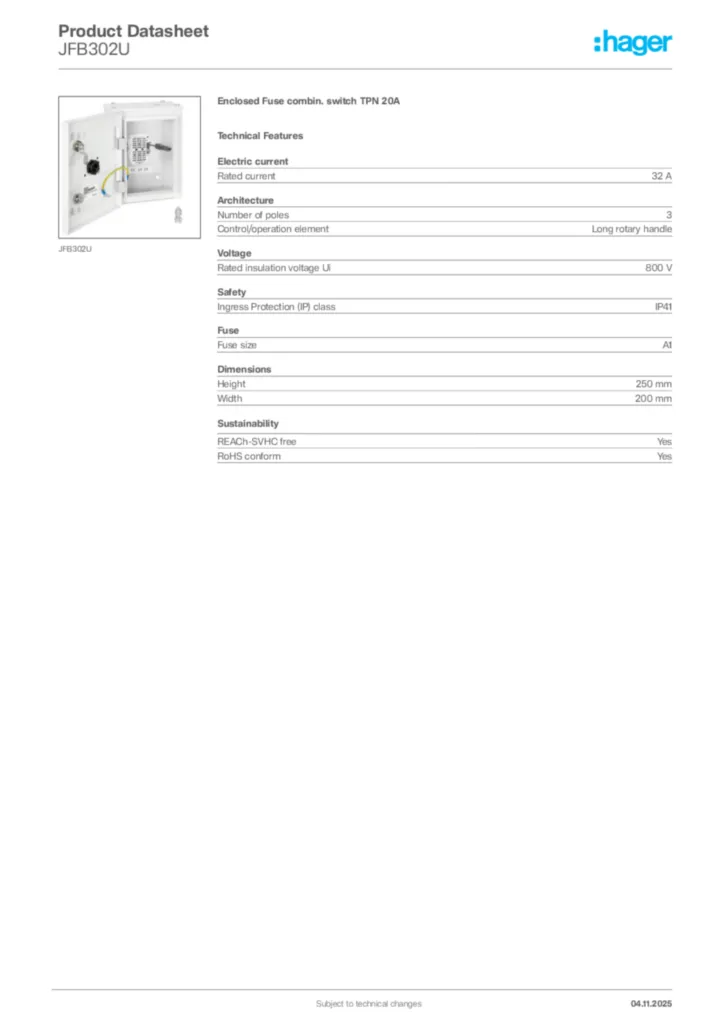

      Image Hager Product data sheet JFB302U | Hager Africa

      Hager Product data sheet JFB302U

      Enclosed Fuse combin. switch TPN 20A

      PDF

    • Instruction manual

      Image Instruction manual en-GB 2024-02-27 | Hager Africa

      Instruction manual en-GB 2024-02-27

      PDF
      17,50 MB

    • Declaration of conformity

      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity International 2022-02-07

      PDF
      836,40 kB
      Image Declaration of conformity en-US 2026-07-14 | Hager Africa

      Declaration of conformity en-US 2026-07-14

      PDF
      284,32 kB
