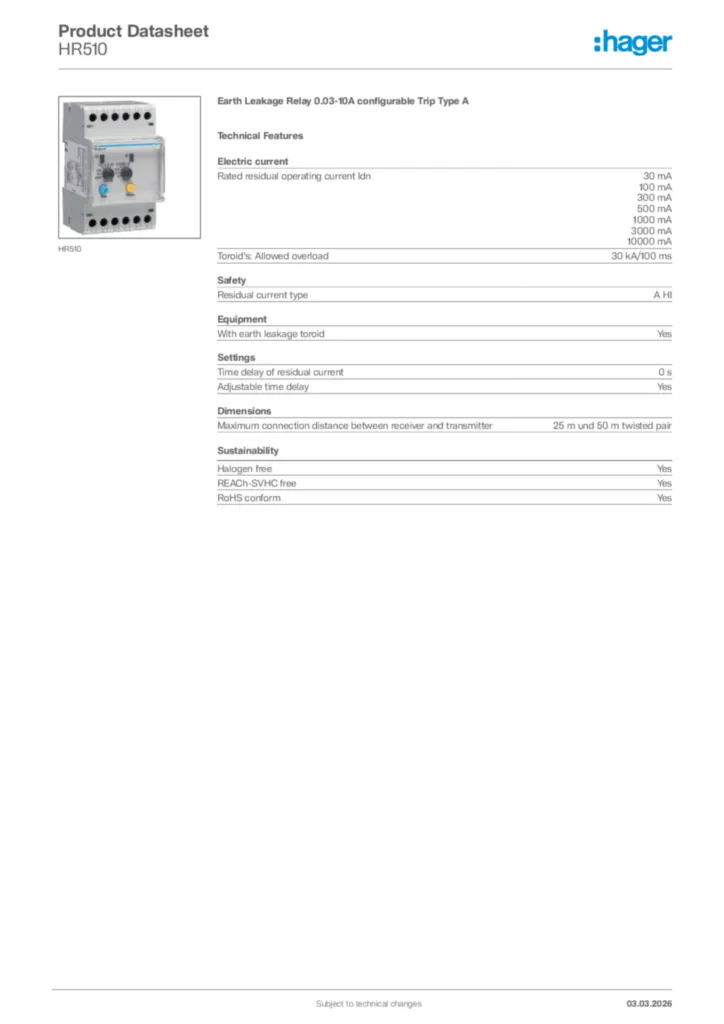

Earth Leakage Relay 0.03-10A configurable Trip Type A HR510
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Toroid residual current release 4 products available
Technical properties
Electric current
-
Rated residual operating current Idn30 mA, 100 mA, 300 mA, 500 mA, 1000 mA, 3000 mA, 10000 mA
-
Toroid's: Allowed overload30 kA/100 ms
Equipment
-
With earth leakage toroidYes
Safety
-
Residual current typeA HI
Settings
-
Time delay of residual current0
-
Adjustable time delayYes
Dimensions
-
Maximum connection distance between receiver and transmitter25 m und 50 m twisted pair
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
More documentation
Discover more of this product range
-
5
-
1
HR743ROUND STANDARD TORROID DIAM 105MM FOR RELAY HR5XX -
2
HR832Rectangular Toroid 150x350mm for Type A Earth Leakage Relay -
3
HR830Rectangular Toroid 70x175mm for Type A Earth Leakage Relay
-
4
HR742ROUND STANDARD TORROID DIAM 70MM FOR RELAY HR5XX -
5
HR831Rectangular Toroid 115x305mm for Type A Earth Leakage Relay
