Load Break Switch Disconnector h3+ PW1600 3P 1250A FTC HMQ980AR
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Locking interlocking functions 1 products available -
Electrical accessories for low-voltage components 1 products available
Technical properties
Electric current
-
Rated current1250 A
-
Rated short-time withstand current Icw IEC 6094719.2 kA
-
Rated current 10°C according to IEC 609471250 A
-
Rated current 15°C according to IEC 609471250 A
-
Rated current 20°C according to IEC 609471250 A
-
Rated current 25°C according to IEC 609471250 A
-
Rated current 30°C according to IEC 609471250 A
-
Rated current at 35°C according to IEC 609471250 A
-
Rated current at 40°C according to IEC 609471250 A
-
Rated current 45°C according to IEC 609471250 A
-
Rated current 50°C according to IEC 609471250 A
-
Rated current 55°C according to IEC 609471250 A
-
Rated current at 60°C according to IEC 609471250 A
-
Rated current 65°C according to IEC 609471250 A
-
Rated current 70°C according to IEC 609471250 A
Architecture
-
Number of poles3
-
Control/operation elementToggle
Voltage
-
Rated insulation voltage Ui1000 V
-
Rated impulse withstand voltage Uimp8 kV
Frequency
-
Frequency50 - 60 Hz
Functions
-
Trip unitSwitch
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

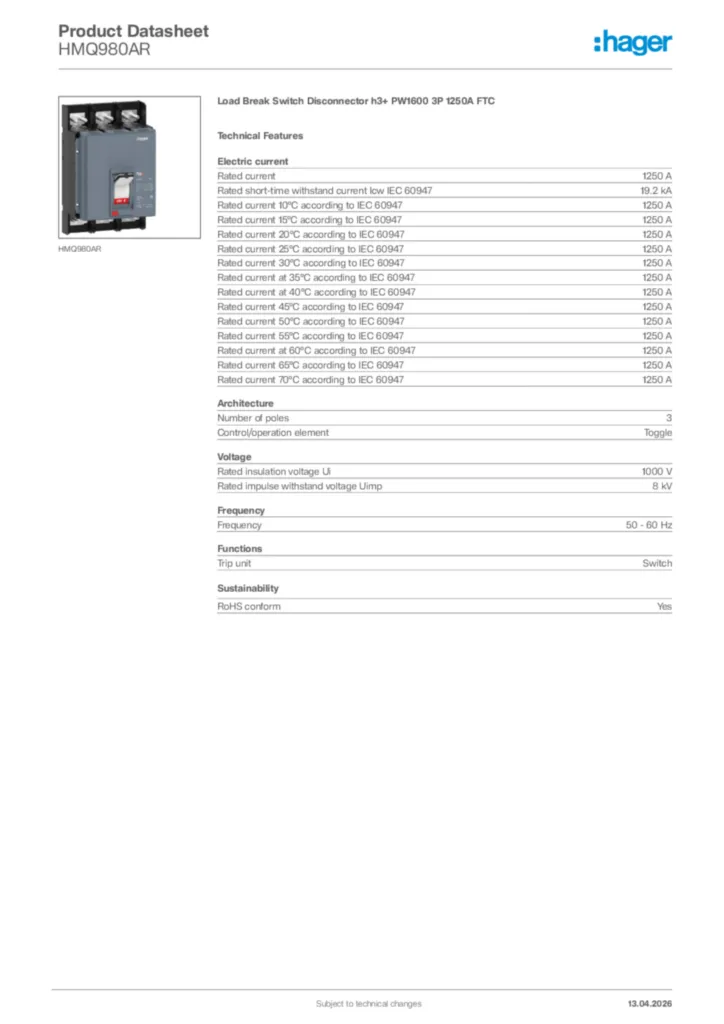

Hager Product data sheet HMQ980AR
Load Break Switch Disconnector h3+ PW1600 3P 1250A FTC
PDF -
Installation manual
Installation manual
h3+ PW1600 Moulded case circuit breakers 630 A to 1600 A
PDF40,05 MB
QuickInstall manual
h3+ PW1600 Moulded case circuit breakers 630 A to 1600 A
PDF25,64 MB -
Manual
Technical catalogue
h3+ PW1600 Moulded case circuit breakers 630 A to 1600 A
PDF37,95 MB
User manual
h3+ PW1600 Moulded case circuit breakers 630 A to 1600 A
PDF11,76 MB -
Declaration of conformity
EU DECLARATION OF CONFORMITY
Version of January 19, 2024
PDF419,49 kB
UKCA DECLARATION OF CONFORMITY
Version of January 16, 2024
PDF404,40 kB
