Load Break Switch Disconnector h3+ PW1600 4P 1000A FTC HMQ971AR
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Locking interlocking functions 1 product.page.accessories.products-available -
Electrical accessories for low-voltage components 1 product.page.accessories.products-available -
Handle for power circuit breaker 1 product.page.accessories.products-available -
Auxiliaries contact block 1 product.page.accessories.products-available -
Mechanic accessories for low-voltage components 2 product.page.accessories.products-available
product.page.accessories.title-modal
Technical characteristics
Electric current
-
Rated current IN1000 A
-
Rated short-time withstand current Icw IEC 6094719.2 kA
-
Rated current at 10°C according to IEC 609471000 A
-
Rated current at 15°C according to IEC 609471000 A
-
Rated current at 20°C according to IEC 609471000 A
-
Rated current at 25°C according to IEC 609471000 A
-
Rated current at 30°C according to IEC 609471000 A
-
Rated current at 35°C according to IEC 609471000 A
-
Rated current at 40°C according to IEC 609471000 A
-
Rated current at 45°C according to IEC 609471000 A
-
Rated current at 50°C according to IEC 609471000 A
-
Rated current at 55°C according to IEC 609471000 A
-
Rated current at 60°C according to IEC 609471000 A
-
Rated current at 65°C according to IEC 609471000 A
-
Rated current at 70°C according to IEC 609471000 A
Architecture
-
Number of poles4
-
Control/operation elementToggle
Voltage
-
Rated insulation voltage Ui1000 V
-
Rated impulse withstand voltage Uimp8 kV
-
Rated operational voltage Ue220 - 690 V
Frequency
-
Frequency50 - 60 Hz
Functions
-
Trip unitSwitch
Dimensions
-
Height330 mm
-
Width280 mm
-
Depth198 mm
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

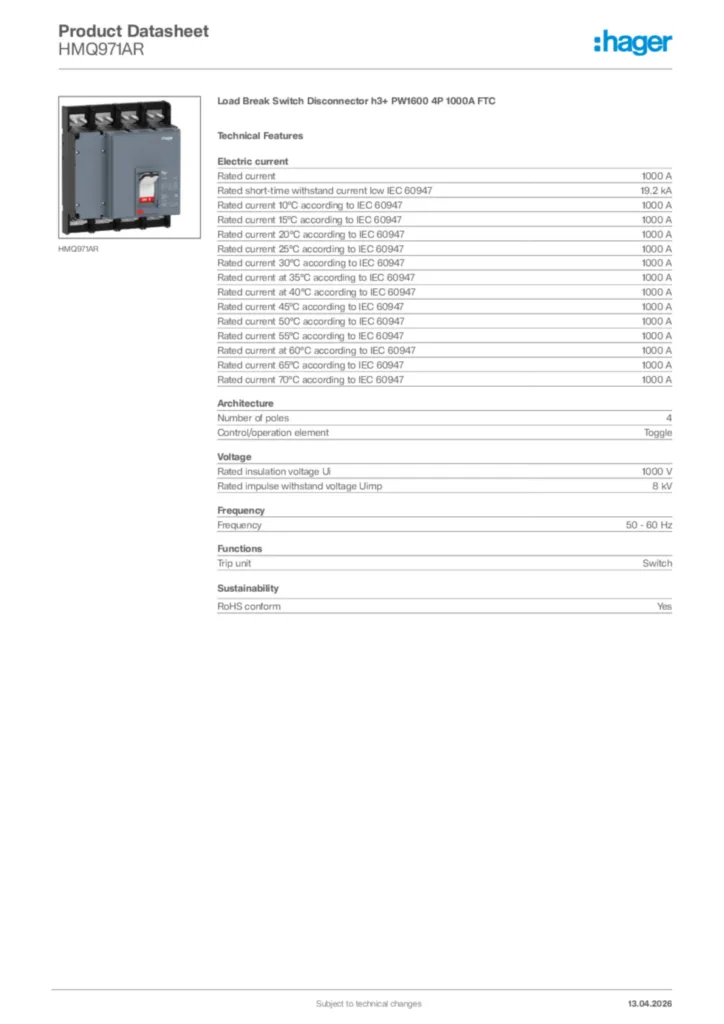

Hager Product data sheet HMQ971AR
