The Hager MCB 1P B-curve 125A 15kA (1.5M) protects single-phase circuits from overloads and short circuits in robust residential or commercial panels. Rated 240-415 V AC, 50/60 Hz, Ui 500 V, Uimp 6 kV, with 15 kA Icn/Icu (IEC 60898-1/60947-2). Compact 27 mm width saves space. Durable (20,000 mech/4,000 elec cycles). Large screw terminals (up to 70 mm²) enable secure, easy wiring. IP20.

EAN

3250613230036

Packaging

1 Piece

Miniature circuit breakers (MCB and MCB Multipolar)

Miniature Circuit Breaker 1P 100A Curve B 15kA 1.5 Module HMB199

Technical properties
Environmental value
Documentations
More products

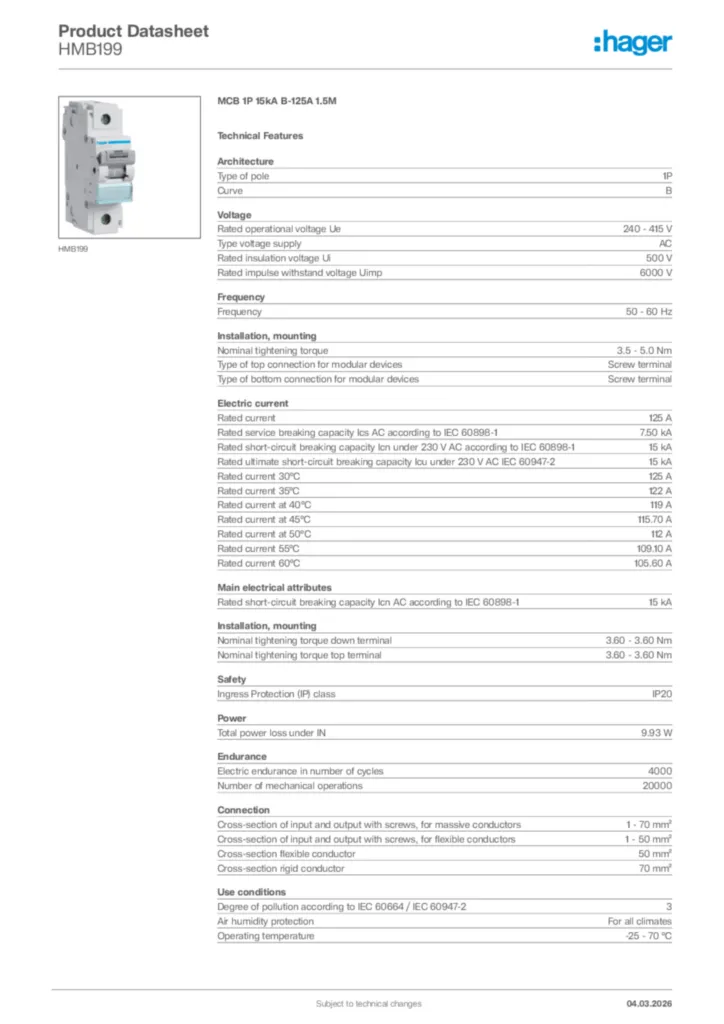

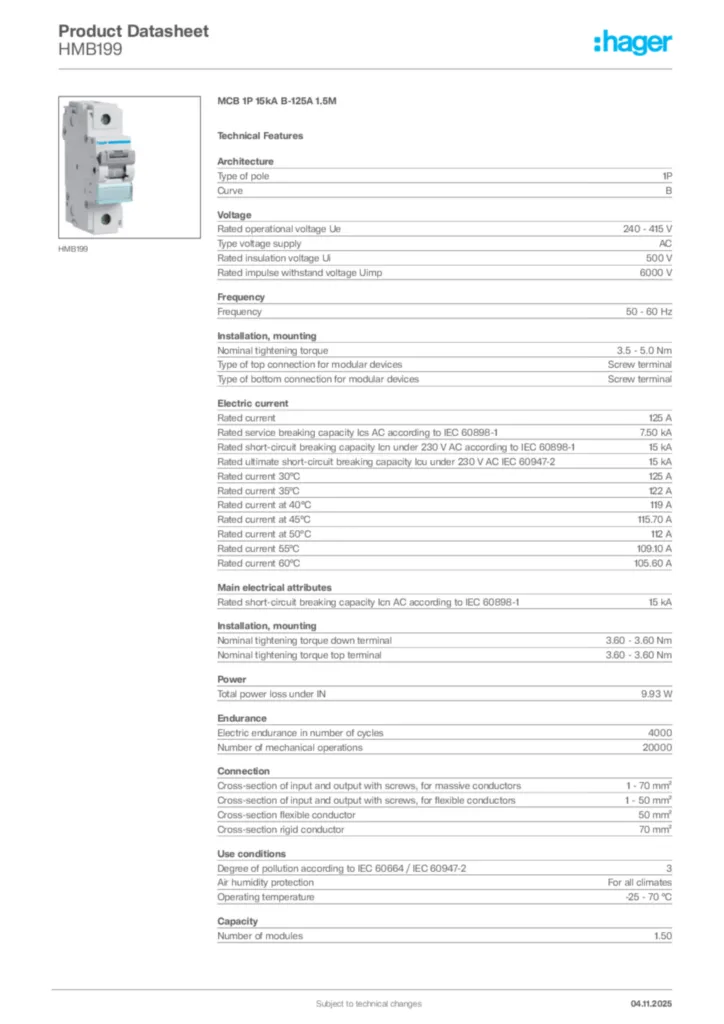

Download the data sheet

Technical properties

Rated current

125 A
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

15 kA
Rated current 30°C

125 A
Rated current 35°C

122 A
Rated current at 40°C

119 A
Rated current at 45°C

115.70 A
Rated current at 50°C

112 A
Rated current 55°C

109.10 A
Rated current 60°C

105.60 A
Rated service breaking capacity Ics AC according to IEC 60947-2

50 %
Rated service breaking capacity Ics AC according to IEC 60898-1

7.50 kA

Type of pole

1P
Curve

B

Number of modules

1.50

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

15 kA

Nominal tightening torque top terminal

3.60 - 3.60 Nm
Nominal tightening torque down terminal

3.60 - 3.60 Nm
Nominal tightening torque

3.5 - 5.0 Nm
Type of bottom connection for modular devices

Screw terminal
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated operational voltage Ue

240 - 415 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 70 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 50 mm²
Cross-section of input with screws, for flexible conductors

1 - 50 mm²
Cross-section of input with screws, for massive conductors

1 - 70 mm²
Cross-section flexible conductor

50 mm²
Cross-section rigid conductor

70 mm²

Ingress Protection (IP) class

IP20
Grid distance

110 mm

Degree of pollution according to IEC 60664 / IEC 60947-2

3
Air humidity protection

For all climates
Operating temperature

-25 - 70 °C

Total power loss under IN

9.93 W

Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

90 mm
Width

27 mm
Depth

70 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
