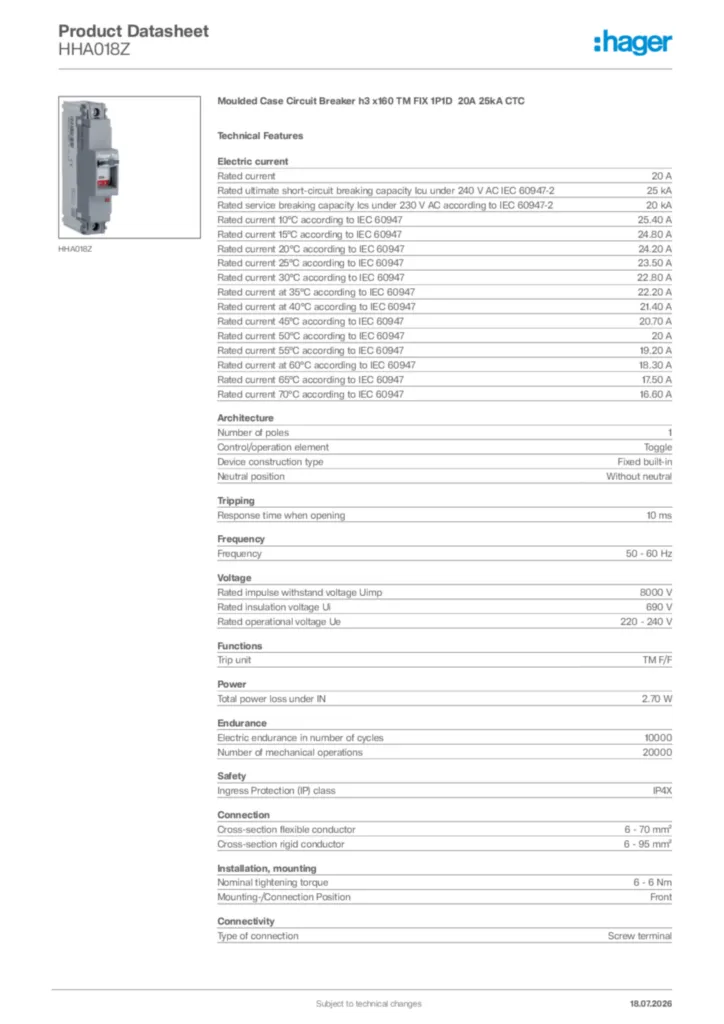

Moulded Case Circuit Breaker h3 x160 TM FIX 1P1D 20A 25kA CTC HHA018Z
EAN
3250613135959
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Terminal cover 1 products available
Technical properties
Electric current
-
Rated current20 A
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-225 kA
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-220 kA
-
Rated current 10°C according to IEC 6094725.40 A
-
Rated current 15°C according to IEC 6094724.80 A
-
Rated current 20°C according to IEC 6094724.20 A
-
Rated current 25°C according to IEC 6094723.50 A
-
Rated current 30°C according to IEC 6094722.80 A
-
Rated current at 35°C according to IEC 6094722.20 A
-
Rated current at 40°C according to IEC 6094721.40 A
-
Rated current 45°C according to IEC 6094720.70 A
-
Rated current 50°C according to IEC 6094720 A
-
Rated current 55°C according to IEC 6094719.20 A
-
Rated current at 60°C according to IEC 6094718.30 A
-
Rated current 65°C according to IEC 6094717.50 A
-
Rated current 70°C according to IEC 6094716.60 A
Architecture
-
Number of poles1
-
Control/operation elementToggle
-
Device construction typeFixed built-in
-
Neutral positionWithout neutral
Tripping
-
Response time when opening10 ms
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated impulse withstand voltage Uimp8000 V
-
Rated insulation voltage Ui690 V
Functions
-
Trip unitTM F/F
Power
-
Total power loss under IN2.70 W
Endurance
-
Electric endurance in number of cycles10000
-
Number of mechanical operations20000
Safety
-
Ingress Protection (IP) classIP4X
Connection
-
Cross-section flexible conductor6 - 70 mm²
-
Cross-section rigid conductor6 - 95 mm²
Connectivity
-
Type of connectionScrew terminal
Cover, door
-
InterlockableYes
Settings
-
Thermal protection knob setting xIN1, 1
Cable
-
Cable materialCopper
Dimensions
-
Height130 mm
-
Width25 mm
-
Depth68 mm
Compatibility
-
Suitable for DIN RailYes
Installation, mounting
-
Nominal tightening torque6 - 6 Nm
-
Mounting-/Connection PositionFront
-
Nominal tightening torque down terminal6 - 6 Nm
-
Nominal tightening torque top terminal6 - 6 Nm
Main electrical attributes
-
Magnetic protection trip time0 - 0 ms
