The Hager 4P 1600A load break switch delivers reliable isolation and switching for heavy-duty distribution. Rated Icw 50kA/1s and Icm 66kA at 415V, it withstands fault stresses, while Ui 1000V and Uimp 12kV ensure insulation margins. Suitable as main, maintenance or safety switch, with long rotary handle and interlocking for safe operation. Fixed built-in, IP00, 50-60Hz, -20…70°C, accepts 6×185 mm² cables.
EAN
3250613119720
Packaging
1 Piece
Load break switch disconnector 3P 160A Toggle Ui 800V Icw 2kA h3+ P160 CTC HA464
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Terminal cover 1 products available -
Auxiliary contact block 1 products available -
Switch operating shaft 2 products available -
Door coupling handle for switchgear 1 products available

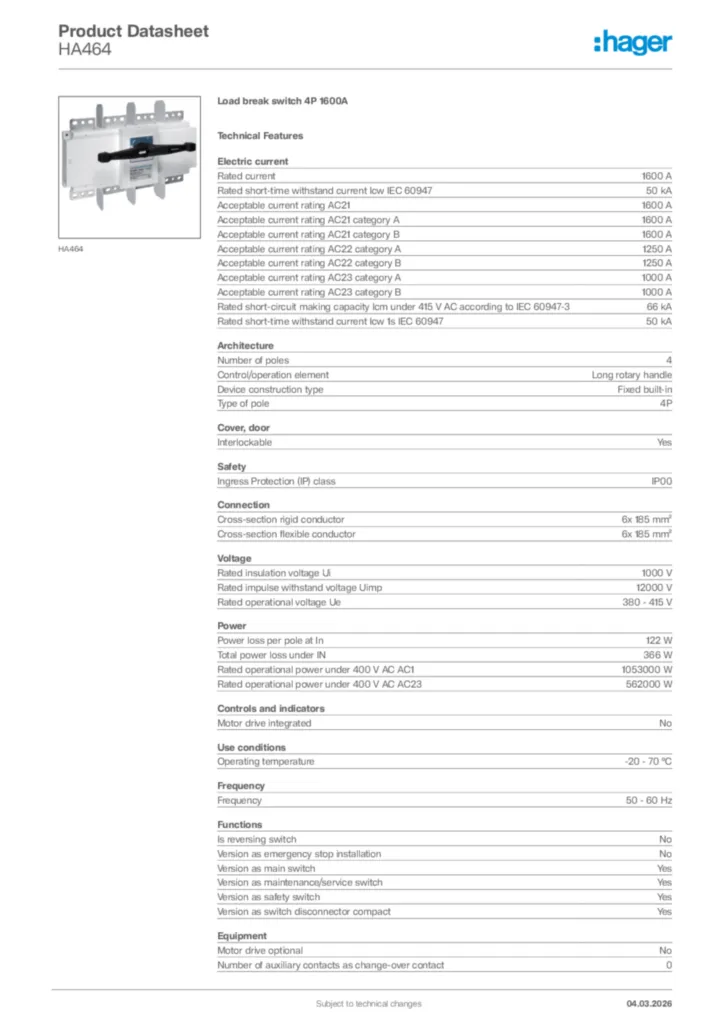

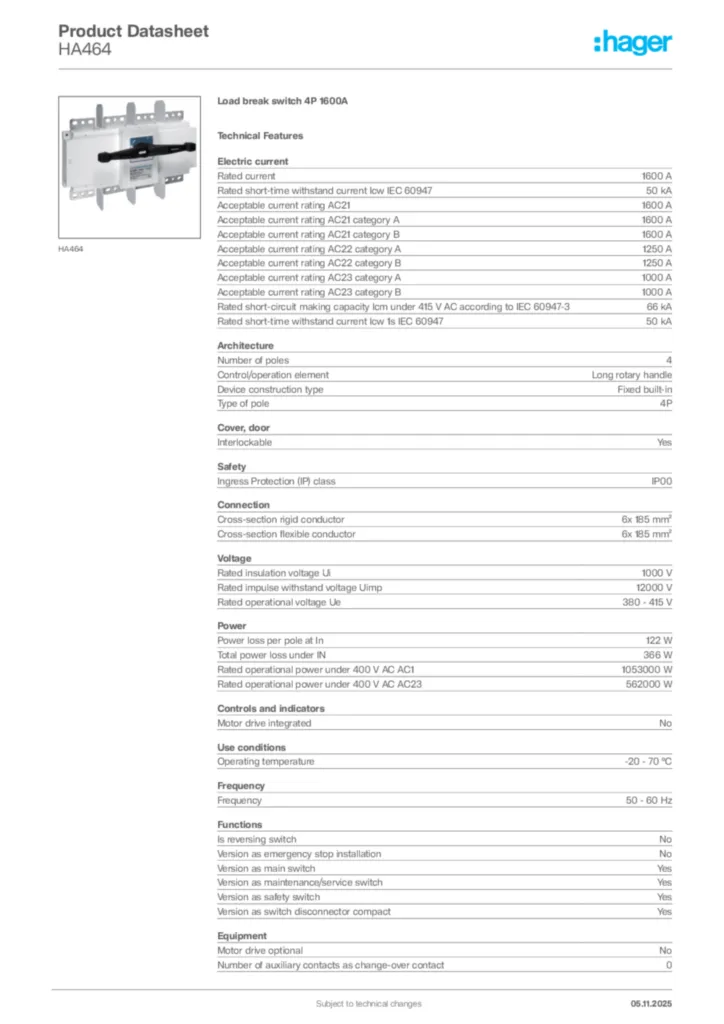

Technical properties
Electric current
-
Rated current1600 A
-
Rated short-time withstand current Icw IEC 6094750 kA
-
Acceptable current rating AC211600 A
-
Acceptable current rating AC21 category A1600 A
-
Acceptable current rating AC21 category B1600 A
-
Acceptable current rating AC22 category A1250 A
-
Acceptable current rating AC22 category B1250 A
-
Acceptable current rating AC23 category A1000 A
-
Acceptable current rating AC23 category B1000 A
-
Rated short-circuit making capacity Icm under 415 V AC according to IEC 60947-366 kA
-
Rated short-time withstand current Icw 1s IEC 6094750 kA
Architecture
-
Number of poles4
-
Control/operation elementLong rotary handle
-
Device construction typeFixed built-in
-
Type of pole4P
Cover, door
-
InterlockableYes
Safety
-
Ingress Protection (IP) classIP00
Connection
-
Cross-section rigid conductor6x 185 mm²
-
Cross-section flexible conductor6x 185 mm²
Voltage
-
Rated insulation voltage Ui1000 V
-
Rated impulse withstand voltage Uimp12000 V
-
Rated operational voltage Ue380 - 415 V
Power
-
Power loss per pole at In122 W
-
Total power loss under IN366 W
-
Rated operational power under 400 V AC AC11053000 W
-
Rated operational power under 400 V AC AC23562000 W
Controls and indicators
-
Motor drive integratedNo
Use conditions
-
Operating temperature-20 - 70 °C
Frequency
-
Frequency50 - 60 Hz
Functions
-
Is reversing switchNo
-
Version as emergency stop installationNo
-
Version as main switchYes
-
Version as maintenance/service switchYes
-
Version as safety switchYes
-
Version as switch disconnector compactYes
Equipment
-
Motor drive optionalNo
-
Number of auxiliary contacts as change-over contact0
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as normally open contact0
Installation, mounting
-
Nominal tightening torque40 - 45 Nm
