The Hager 3P 800A load break switch delivers dependable isolation and load switching for industrial/commercial panels. Rated 800A for AC21/AC22/AC23 with Icw 26kA/1s and Icm 48kA at 415V. Suited to 380-415V systems (Ui 1000V, Uimp 12kV). Fixed built-in, interlockable long rotary handle, accepts 2x300 mm² per pole. Ideal as main, maintenance, or safety switch. Operates -20 to 70°C, 50-60 Hz.

EAN

3250613119676

Packaging

1 Piece

Load break switches

Load break switch 3P 1600A Icw 50kA Icm 66kA long rotary handle HA360

Accessories
Technical properties
Environmental value
Documentations
More products

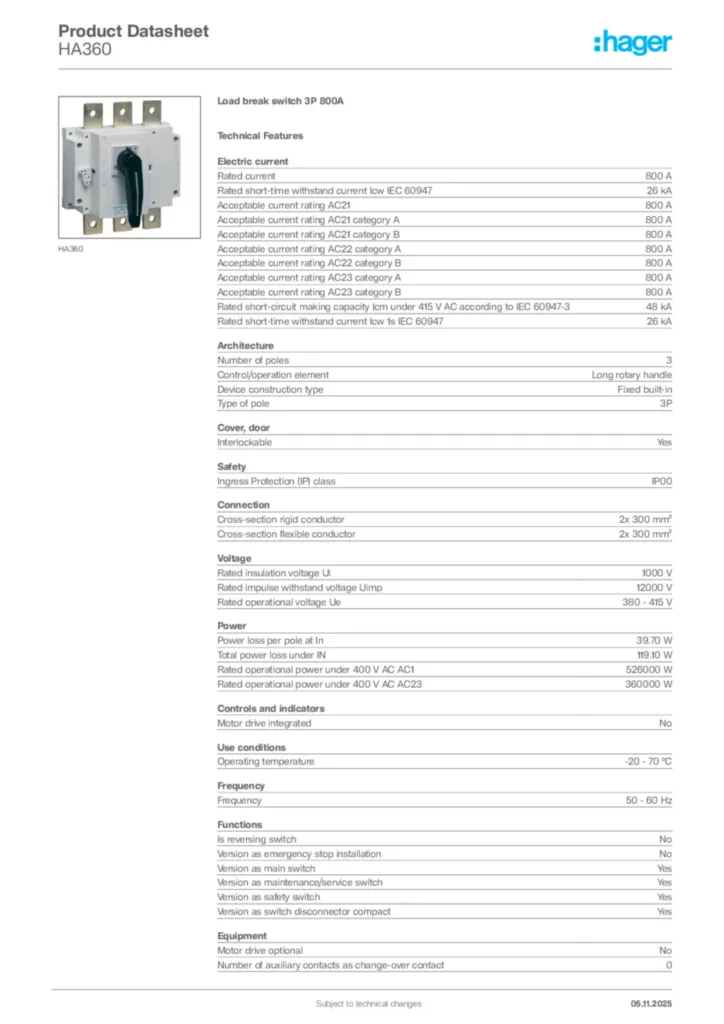

Download the data sheet

Complete your system

Terminal cover 1 products available
Door coupling handle for switchgear 1 products available

Technical properties

Rated current

800 A
Rated short-time withstand current Icw IEC 60947

26 kA
Acceptable current rating AC21

800 A
Acceptable current rating AC21 category A

800 A
Acceptable current rating AC21 category B

800 A
Acceptable current rating AC22 category A

800 A
Acceptable current rating AC22 category B

800 A
Acceptable current rating AC23 category A

800 A
Acceptable current rating AC23 category B

800 A
Rated short-circuit making capacity Icm under 415 V AC according to IEC 60947-3

48 kA
Rated short-time withstand current Icw 1s IEC 60947

26 kA

Number of poles

3
Control/operation element

Long rotary handle
Device construction type

Fixed built-in
Type of pole

3P

Interlockable

Yes

Ingress Protection (IP) class

IP00

Cross-section rigid conductor

2x 300 mm²
Cross-section flexible conductor

2x 300 mm²

Rated insulation voltage Ui

1000 V
Rated impulse withstand voltage Uimp

12000 V
Rated operational voltage Ue

380 - 415 V

Power loss per pole at In

39.70 W
Total power loss under IN

119.10 W
Rated operational power under 400 V AC AC1

526000 W
Rated operational power under 400 V AC AC23

360000 W

Motor drive integrated

No

Operating temperature

-20 - 70 °C

Frequency

50 - 60 Hz

Is reversing switch

No
Version as emergency stop installation

No
Version as main switch

Yes
Version as maintenance/service switch

Yes
Version as safety switch

Yes
Version as switch disconnector compact

Yes

Motor drive optional

No
Number of auxiliary contacts as change-over contact

0
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as normally open contact

0

Nominal tightening torque

40 - 45 Nm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
