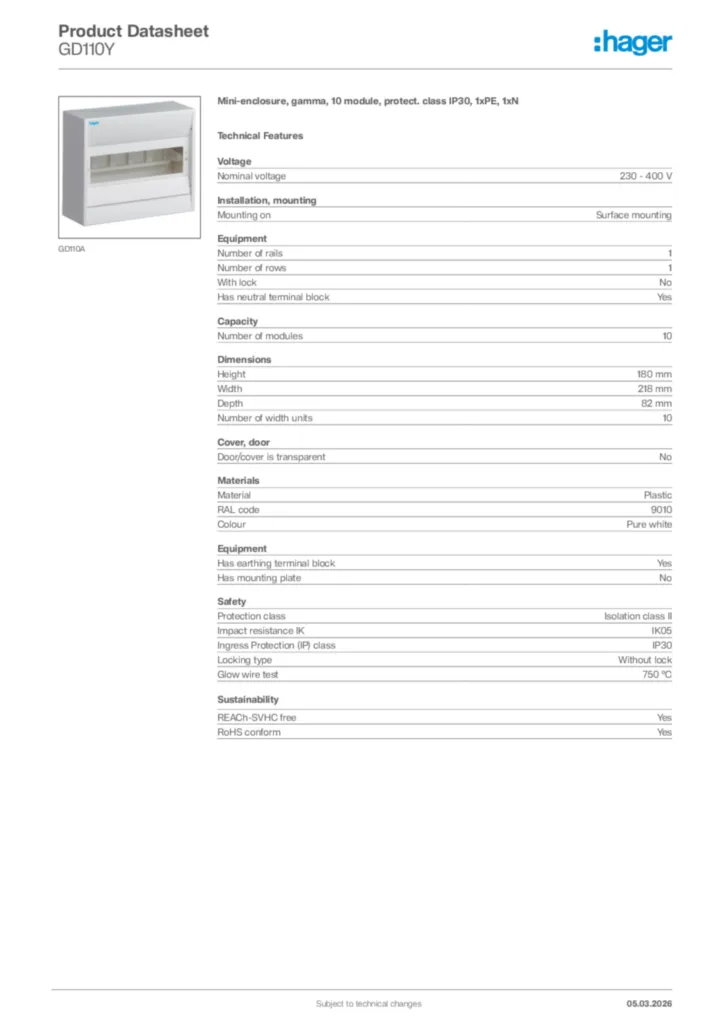

Mini-enclosure, gamma, 10 module, protect. class IP30, 1xPE, 1xN GD110Y
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Door/operating panel 2 products available -
Cover strip 1 products available
Technical properties
Voltage
-
Nominal voltage230 - 400 V
Installation, mounting
-
Mounting onSurface mounting
Equipment
-
Number of rails1
-
Number of rows1
-
With lockNo
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
-
Has mounting plateNo
Capacity
-
Number of modules10
Dimensions
-
Height180 mm
-
Width218 mm
-
Depth82 mm
-
Number of width units10
Cover, door
-
Door/cover is transparentNo
Materials
-
MaterialPlastic
-
RAL code9010
-
ColourPure white
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP30
-
Locking typeWithout lock
-
Glow wire test750 °C
