    • Home
    • Catalog
    • Distri­bu­tion systems
    • Small distri­bu­tion boards up to 63 A and multi­media boards
    • mini gamma enclos­ures
    • GD110E
    EAN
    3250612843244
    Packaging
    1 Piece
    • mini gamma enclos­ures

    Mini-enclosure, gamma, 10 module, protect. class IP30, 1xPE GD110E

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Mini-enclosure, gamma, 10 module, protect. class IP30, 1xPE

    GD110E

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Door/­op­er­ating panel 2 products available
    • Lock system 1 products available
    • Accessor­ies/s­pare parts for terminals 1 products available
    • Push-in terminal 2 products available
    • Docu­ment holder 1 products available
    • Cover strip 3 products available

    Complete your system

    • Door/­op­er­ating panel
    • Lock system
    • Accessor­ies/s­pare parts for terminals
    • Push-in terminal
    • Docu­ment holder
    • Cover strip
    • GP110T

      Door, mini distributor, 10M, transparent
      0.00 €  / *
    • GP110P

      Door for mini-enclosure, gamma, 10 module, white
      0.00 €  / *
    • VZ313

      Door key, gamma, for door of the mini-enclosure, GD
      0.00 €  / *
    • GZ110S

      Terminal supports, gamma, for mini-enclosure, 10 module
      0.00 €  / *
    • GZ04N

      N-terminal, minigamma, 4 connections
      0.00 €  / *
    • GZ04E

      PE-terminal, minigamma, 4 connections
      0.00 €  / *
    • GZ06A

      Document holder, gamma, transparent, 10pieces
      0.00 €  / *
    • S35S

      Cover strips, RAL 9010, breakable, 219 mm
      0.00 €  / *
    • P031F

      Cover strips, universal, for 1/2 module
      0.00 €  / *
    • P032F

      Cover strips, universal, for 1 module
      0.00 €  / *

    Technical properties

    Voltage
    • Nominal voltage
      230 - 400 V
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current
      63 A
    Equip­ment
    • Number of rails
      1
    • Number of rows
      1
    • Number of section in width
      1
    • With lock
      No
    • Has neutral terminal block
      No
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      10
    Func­tions
    • Has protec­tion main switch
      No
    • With conduit inlets
      Yes
    Dimen­sions
    • Height
      180 mm
    • Width
      218 mm
    • Depth
      82 mm
    • Number of width units
      10
    Cover, door
    • Number of locks
      0
    • Door/­cover is trans­parent
      No
    Connectivity
    • Mounting type
      Screw mounting
    Mater­ials
    • Material
      Plastic
    • RAL code
      9010
    • Colour
      Pure white
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Impact resist­ance IK
      IK05
    • Ingress Protec­tion (IP) class
      IP30
    • Locking type
      Without lock
    • Glow wire test
      750 °C

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    PEP - ENCLOSURE SURFACE GAMMA 26 M (english)
    PDF
    25,39 MB
    Hager REACH declaration GD110E
    PDF
    Hager RoHS report GD110E
    PDF

    Downloads

    • Image GD110E | Hager Africa

      Product Image GD110E

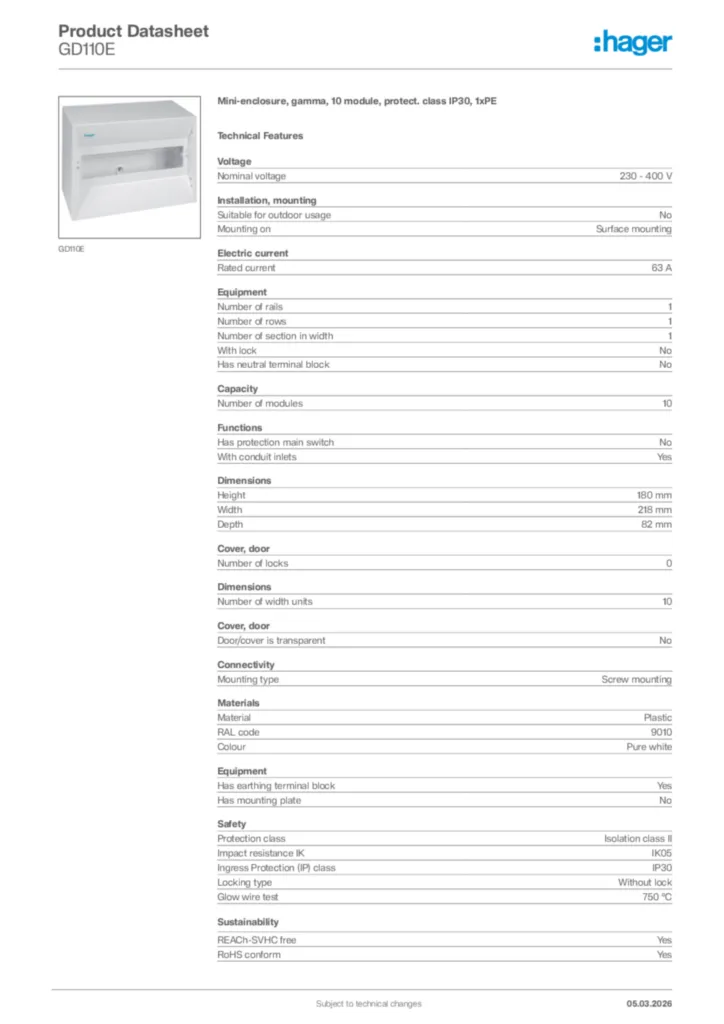

    • Product datasheet

      Image Hager Product data sheet GD110E | Hager Africa

      Hager Product data sheet GD110E

      Mini-enclosure, gamma, 10 module, protect. class IP30, 1xPE

      PDF

    • Declaration of conformity

      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity International 2022-10-14

      PDF
      824,09 kB
      Image Declaration of conformity en-GB 2024-04-15 | Hager Africa

      Declaration of conformity en-GB 2024-04-15

      PDF
      174,16 kB
    More documentation

    Spare part

    See more

    Discover more of this product range

      5
    • 1
      GD106E - Mini-enclosure, gamma, 6 module, protect. class IP30, 1xPE
      GD106E
      Mini-enclosure, gamma, 6 module, protect. class IP30, 1xPE
    • 2
      GZ104S - Terminal supports,gamma, for mini-enclosure,4 module
      GZ104S
      Terminal supports, gamma, for mini-enclosure, 4 module
    • 3
      GD108E - Mini-enclosure, gamma, 8 module, protect. class IP30, 1xPE
      GD108E
      Mini-enclosure, gamma, 8 module, protect. class IP30, 1xPE
    • 4
      GZ110S - Terminal supports,gamma,for mini-enclosure, 10 module
      GZ110S
      Terminal supports, gamma, for mini-enclosure, 10 module
    • 5
      GD104E - Mini-enclosure, gamma, 4 module, protect. class IP30, 1xPE
      GD104E
      Mini-enclosure, gamma, 4 module, protect. class IP30, 1xPE
