The Hager Gamma mini-enclosure, 8-module, IP30, is a surface-mounted plastic distribution box for small residential or light commercial circuits. It offers one 1-row DIN rail (8M) with PE and N terminal blocks, 63 A rating at 230 V. Class II insulation, IK05 impact resistance, 750 °C glow-wire, pure white RAL9010. Compact (180×182×82 mm), it neatly houses protective devices for safe, tidy wiring.

EAN

3250616000476

Packaging

1 Piece

mini gamma enclosures

Gamma mini-enclosure 6 modules IP30 Class II surface mount 1xPE 1xN GD108Y

Accessories
Technical properties
Environmental value
Documentations
More products

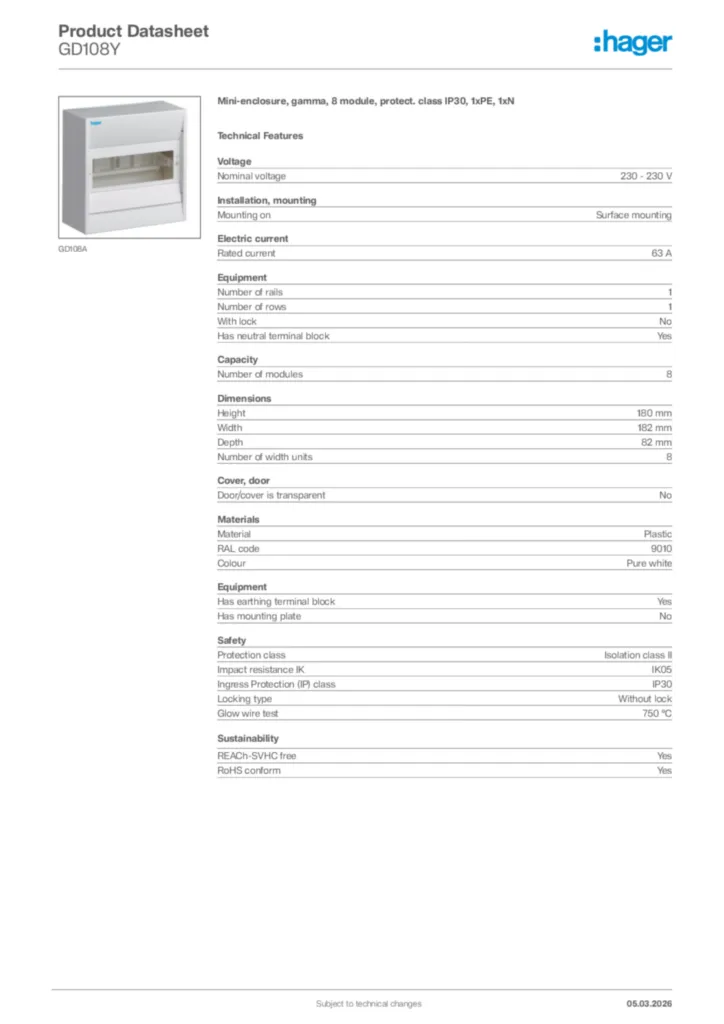

Download the data sheet

Complete your system

Door/operating panel 2 products available
Cover strip 1 products available

Technical properties

Nominal voltage

230 - 230 V

Mounting on

Surface mounting

Rated current

63 A

Number of rails

1
Number of rows

1
With lock

No
Has neutral terminal block

Yes
Has earthing terminal block

Yes
Has mounting plate

No

Number of modules

8

Height

180 mm
Width

182 mm
Depth

82 mm
Number of width units

8

Door/cover is transparent

No

Material

Plastic
RAL code

9010
Colour

Pure white

Protection class

Isolation class II
Impact resistance IK

IK05
Ingress Protection (IP) class

IP30
Locking type

Without lock
Glow wire test

750 °C

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
