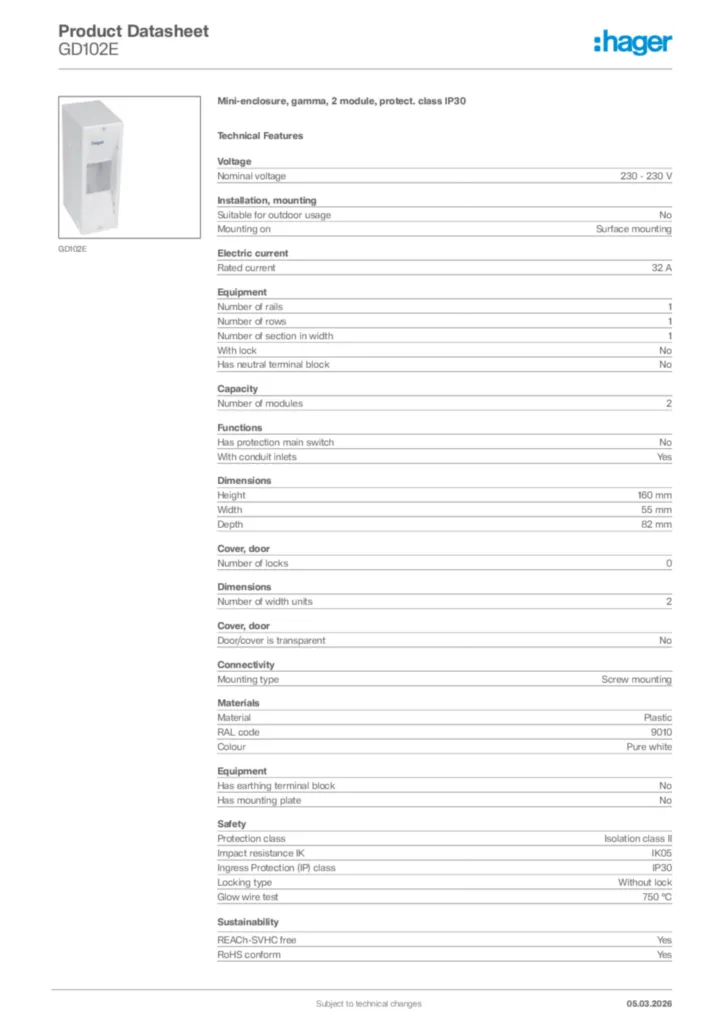

Mini-enclosure, gamma, 2 module, protect. class IP30 GD102E
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Door/operating panel 2 products available -
Lock system 1 products available -
Document holder 1 products available -
Cover strip 3 products available
Complete your system
Technical properties
Voltage
-
Nominal voltage230 - 230 V
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current32 A
Equipment
-
Number of rails1
-
Number of rows1
-
Number of section in width1
-
With lockNo
-
Has neutral terminal blockNo
-
Has earthing terminal blockNo
-
Has mounting plateNo
Capacity
-
Number of modules2
Functions
-
Has protection main switchNo
-
With conduit inletsYes
Dimensions
-
Height160 mm
-
Width55 mm
-
Depth82 mm
-
Number of width units2
Cover, door
-
Number of locks0
-
Door/cover is transparentNo
Connectivity
-
Mounting typeScrew mounting
Materials
-
MaterialPlastic
-
RAL code9010
-
ColourPure white
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP30
-
Locking typeWithout lock
-
Glow wire test750 °C
