The Hager Quadro5 glazed door (H1710 x W900) provides secure, visible access to switchboard equipment. A transparent, lockable single door with 3-side 7 mm locking and supplied key enhances security, while IP55 sealing protects against dust and water. Its slim 54 mm profile and pure white RAL 9010 varnished finish suit modern electrical panels in commercial and industrial settings.
EAN
3250612635672
Packaging
1 Piece
Glazed door Quadro5 1860x900 mm IP55 3-point 7mm lock RAL9010 Pure White FM567
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Key for enclosures/cabinets 1 products available -
Insert for lock system 2 products available -
Lock system 1 products available
Compatible products
-
Referenced by 2 products available
Technical properties
Dimensions
-
Height1710 mm
-
Width885 mm
-
Depth54 mm
Cover, door
-
Door/cover is transparentYes
-
Number of cabinet doors1
-
Cabinet door typeLock door
-
Number of locks1
Materials
-
RAL code9010
-
ColourPure white
-
Product colourPure white
-
TreatmentVarnished
Safety
-
Ingress Protection (IP) classIP55
-
Locking type3-Side 7 mm
Equipment
-
Number of keys1
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

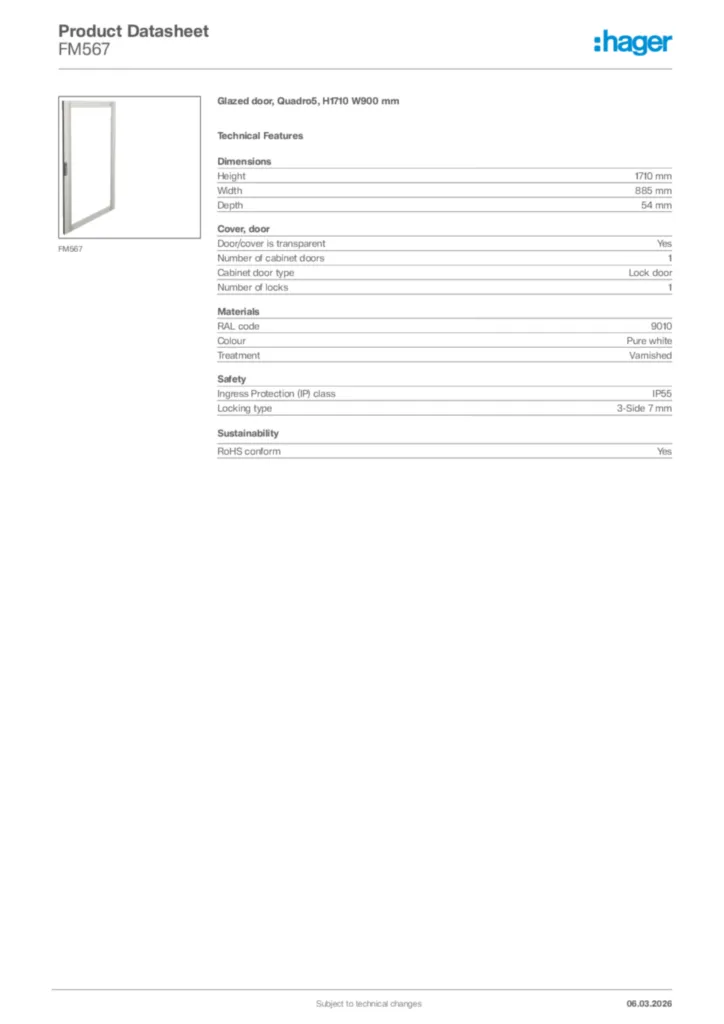

Hager Product data sheet FM567
