The Hager Quadro5 glazed door (H810 x W700 x D54 mm) provides secure, visible access for enclosures. Transparent and powder-coated in RAL9010, it offers a clean, durable finish. IP55 sealing protects against dust and water. A single lockable door with two 3-side 7 mm locks comes with 2 keys for enhanced security. Ideal for industrial and commercial panels, enabling quick inspection without opening.
EAN
3250612635429
Packaging
1 Piece
Glazed Door Quadro5 960x700mm IP55 Lock 3-side 7mm Pure White FM542
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Lock system 6 products available
Compatible products
-
Referenced by 1 products available
Complete your system
-
FZ450NLock, univers, triangular 7mm, with 1 key, for enclosure IP44/54
-
FZ449NLock, univers, double-bit, 3mm, with 1 key, for enclosure IP44/54
-
FZ453Lock, cylinder Nr.455, with 2 keys, for enclosure univers IP43 and Quadro 4-5
-
FZ452
Lock, cylinder Nr.405, with 2 keys, for enclosure univers IP43 and Quadro4-5
-
FL78ZPadlockable swinghandle w/o inserts, Quadro.Plus
-
FZ597DOOR CATCH NO 1242E
Technical properties
Dimensions
-
Height810 mm
-
Width700 mm
-
Depth54 mm
Cover, door
-
Door/cover is transparentYes
-
Number of cabinet doors1
-
Cabinet door typeLock door
-
Number of locks2
Materials
-
RAL code9010
-
ColourPure white
-
Product colourPure white
-
TreatmentPowder coated
Safety
-
Ingress Protection (IP) classIP55
-
Locking type3-Side 7 mm
Equipment
-
Number of keys2
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

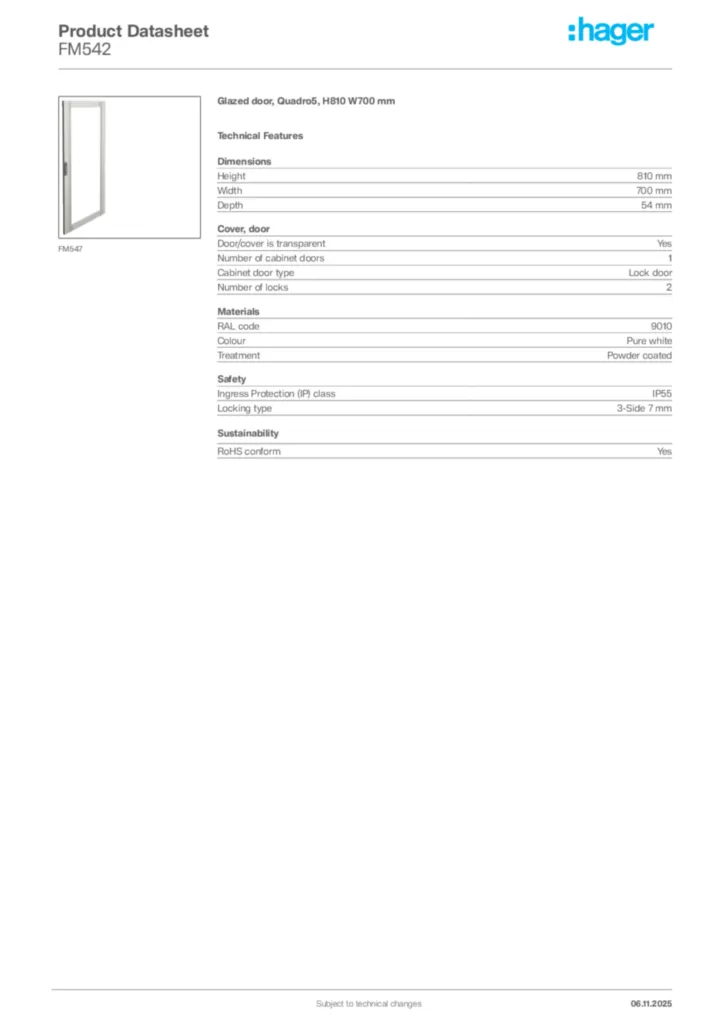

Product datasheet

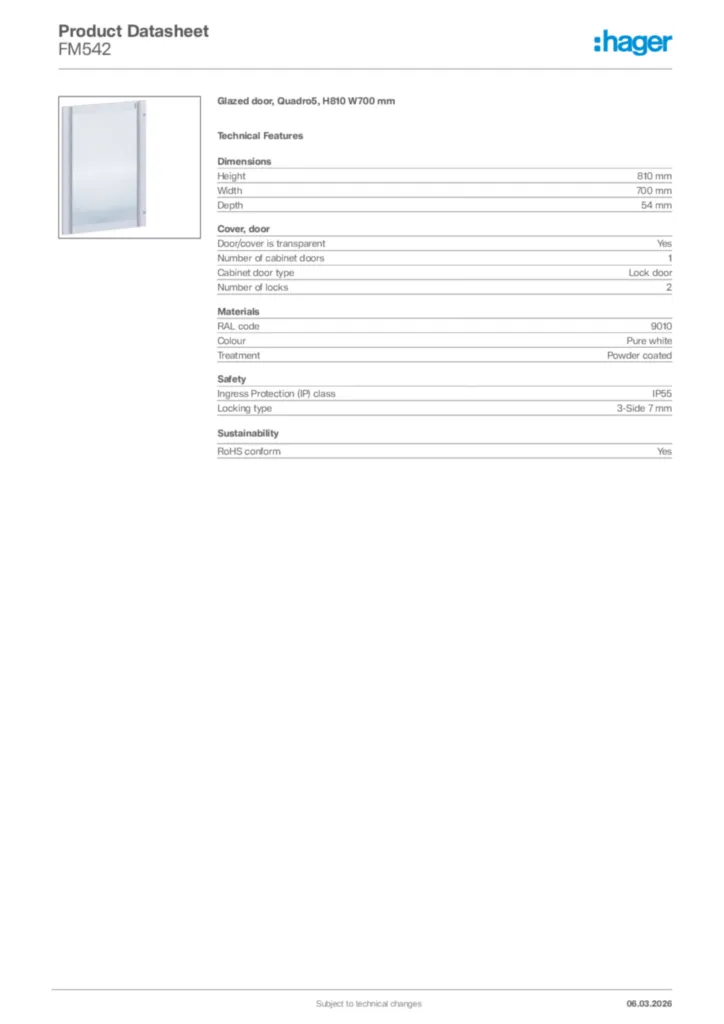

Hager Product data sheet FM542
Glazed door, Quadro5, H810 W700 mm
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2023-03-23
PDF284,72 kB
Declaration
Declaration of conformity International 2022-10-25
PDF306,93 kB
Declaration
Declaration of conformity International 2023-03-23
PDF275,65 kB
Declaration of conformity en-GB 2026-04-01
PDF539,93 kB
Declaration of conformity en-GB 2026-04-01
PDF538,80 kB
EU-Konformitätserklärung ZAS132DFM2
Declaration of conformity International 2022-10-25
PDF318,13 kB
