The Hager Quadro5 glazed door (H660 x W700 x D54 mm) delivers secure, visible access for enclosures. Its transparent panel and powder-coated RAL 9010 pure white finish pair with IP55 sealing to protect against dust and water jets. Supplied as one lockable door with 2 locks (3-side 7 mm) and 2 keys, it enhances safety and aesthetics for industrial and commercial switchboards.
EAN
3250612635412
Packaging
1 Piece
Quadro5 Glazed Lock Door 810x700 IP55, Pure White, 3-Side 7mm, 2 Locks FM541
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Lock system 5 products available
Compatible products
-
Referenced by 1 products available
Complete your system
-
FZ450NLock, univers, triangular 7mm, with 1 key, for enclosure IP44/54
-
FZ449NLock, univers, double-bit, 3mm, with 1 key, for enclosure IP44/54
-
FZ453
Lock, cylinder Nr.455, with 2 keys, for enclosure univers IP43 and Quadro 4-5
-
FZ452Lock, cylinder Nr.405, with 2 keys, for enclosure univers IP43 and Quadro4-5
-
FZ597DOOR CATCH NO 1242E
Technical properties
Dimensions
-
Height660 mm
-
Width700 mm
-
Depth54 mm
Cover, door
-
Door/cover is transparentYes
-
Number of cabinet doors1
-
Cabinet door typeLock door
-
Number of locks2
Materials
-
RAL code9010
-
ColourPure white
-
Product colourPure white
-
TreatmentPowder coated
Safety
-
Ingress Protection (IP) classIP55
-
Locking type3-Side 7 mm
Equipment
-
Number of keys2
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

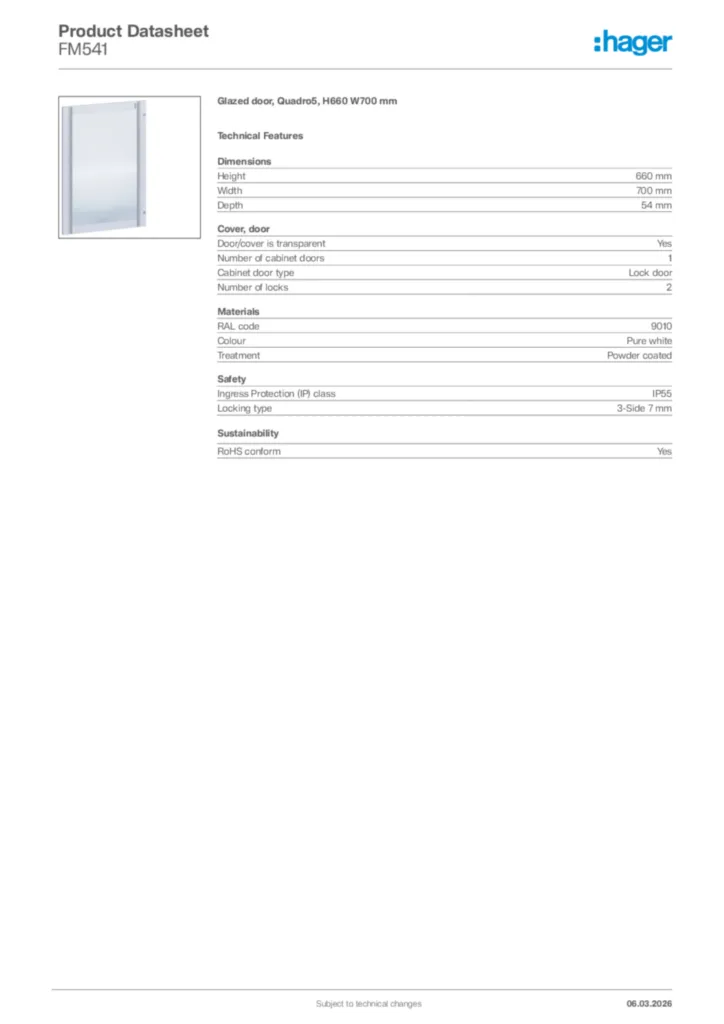

Hager Product data sheet FM541
