The Hager Quadro5 glazed door H510 x W700 mm provides secure, visible protection for electrical enclosures. Its transparent pane enables inspection without opening, while IP55 resists dust and water. A 3‑side 7 mm locking system with 2 locks and 2 keys ensures access control. Pure white RAL 9010 varnished finish. Suits 2‑section width layouts; 54 mm depth. Ideal for industrial and commercial distribution boards.
EAN
3250612635405
Packaging
1 Piece
Glazed door for Quadro5 H660xW700 IP55 3-side 7mm locking, 2 locks FM540
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Lock system 5 products available
Compatible products
-
Referenced by 1 products available
Complete your system
-
FZ450NLock, univers, triangular 7mm, with 1 key, for enclosure IP44/54
-
FZ449NLock, univers, double-bit, 3mm, with 1 key, for enclosure IP44/54
-
FZ453
Lock, cylinder Nr.455, with 2 keys, for enclosure univers IP43 and Quadro 4-5
-
FZ452Lock, cylinder Nr.405, with 2 keys, for enclosure univers IP43 and Quadro4-5
-
FZ597DOOR CATCH NO 1242E
Technical properties
Dimensions
-
Height510 mm
-
Width685 mm
-
Depth54 mm
Cover, door
-
Door/cover is transparentYes
-
Number of cabinet doors1
-
Cabinet door typeLock door
-
Number of locks2
Materials
-
RAL code9010
-
ColourPure white
-
Product colourPure white
-
TreatmentVarnished
Safety
-
Ingress Protection (IP) classIP55
-
Locking type3-Side 7 mm
Equipment
-
Number of section in width2
-
Number of keys2
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

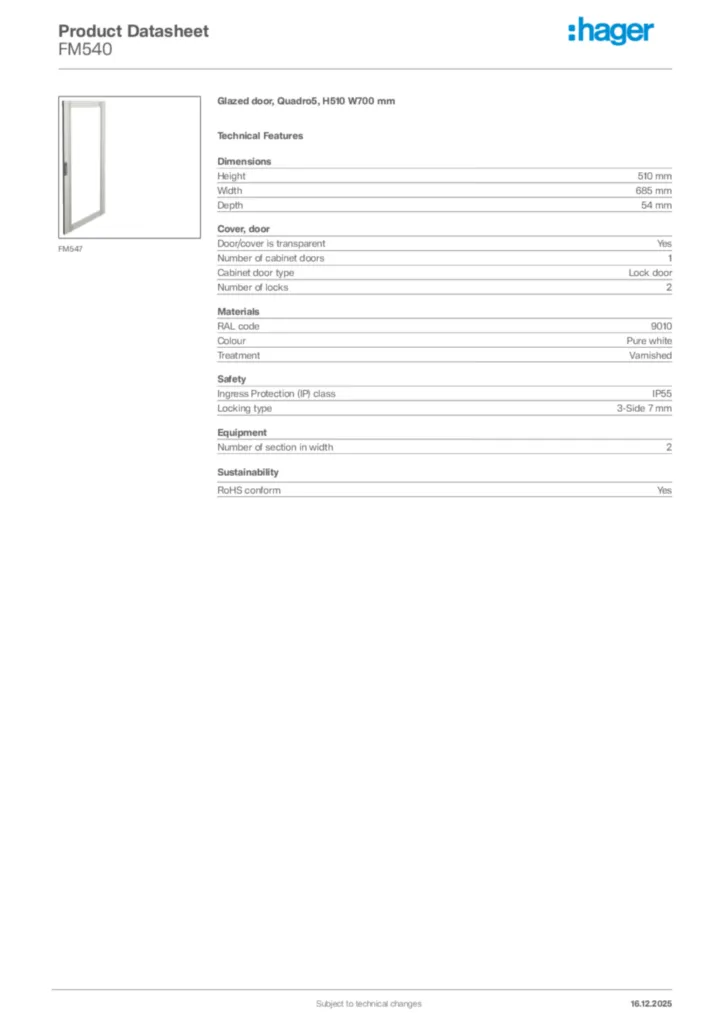

Product datasheet
Hager Product data sheet FM540
Glazed door, Quadro5, H510 W700 mm
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2023-03-23
PDF284,72 kB
Declaration
Declaration of conformity International 2022-10-25
PDF306,93 kB
Declaration
Declaration of conformity International 2023-03-23
PDF275,65 kB
Declaration of conformity en-GB 2026-04-01
PDF539,93 kB
Declaration of conformity en-GB 2026-04-01
PDF538,80 kB
EU-Konformitätserklärung ZAS132DFM2
Declaration of conformity International 2022-10-25
PDF318,13 kB
